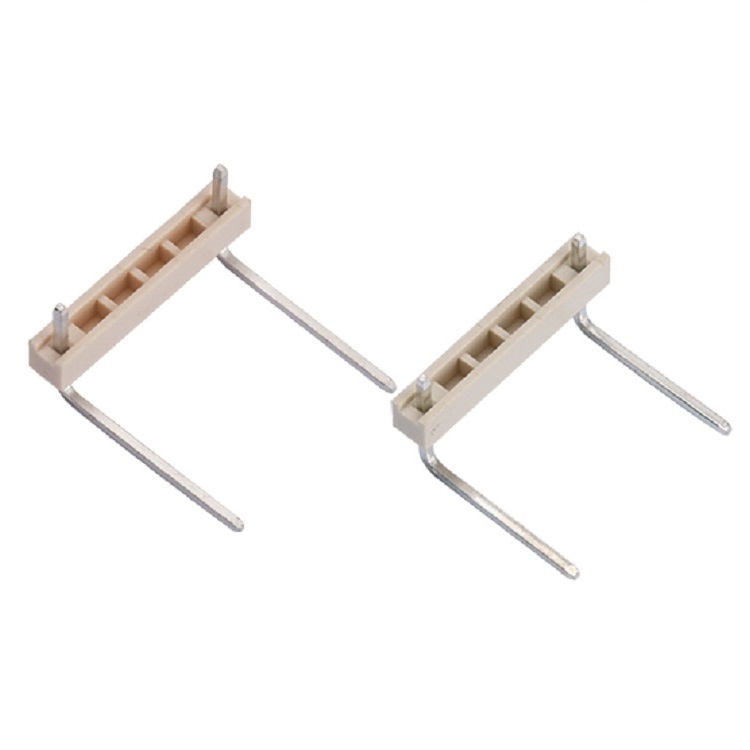

产品名称：T8T5灯管连接器
主要规格
线数：0至03
接触电阻：<20m2
绝缘电阻：>1000MQ
额定电压：125V AC DC
额定电流：1.0A AC DO
电压耐受性：1000V AC/分钟
温度范围：-25℃~+105℃
品牌：科斯达开关KSDKG
产地：中国东莞
T8和T5灯管连接器是专为这两种类型的荧光灯和LED灯管设计的接口，目的是实现灯管与电源之间的电气连接。以下是对T8和T5灯管连接器的详细介绍：
T8灯管连接器
1. 介绍
规格：T8灯管直径为1英寸（约2.54厘米）。
插座类型：通常使用G13型插座。
应用：广泛用于办公室、商店、工业设施及家庭照明等场合。
2. 类型
直插式连接器：用户可以方便地将灯管直接插入插座，无需额外工具。
端子式连接器：通过螺丝固定灯管的接线端子，适合需要更高固定性的应用场景。
T5灯管连接器
1. 介绍
规格：T5灯管直径为5/8英寸（约1.59厘米）。
插座类型：通常使用G5型插座。
应用：广泛用于各种商业和家庭照明场合，例如超市、办公桌下的照明等。
2. 类型
直插式连接器：用户可将T5灯管直接插入连接器，便于更换和安装。
端子式连接器：通过旋紧固定灯管，适合需要更稳固安装的场合。
特性与优势
1.简便性：T8和T5灯管连接器的设计使得安装和维修过程简便快捷。
2.耐用性：优质材料制成的连接器可以抵御高温和潮湿，减少磨损和故障。
3.适应性强：能够兼容LED灯管与传统荧光灯，为用户提供更广泛的选择。
4.安全性：通常具备电气安全认证，确保在正常工作条件下的安全使用。
应用场景
商业照明：适合办公区、商铺、仓库等场所的主要照明需求。
工业照明：常用于生产车间、机器周围的照明，提供必要的工作光线。
家用照明：适用于厨房、车库、走廊等区域的常规照明。
使用注意事项
确保匹配：在更换灯管时必须确保连接器与灯管类型和规格相符，以避免兼容性问题。
电源处理：在安装或更换灯管之前，切断电源以避免电击。
查看额定值：确保灯管和连接器的电压和功率符合电气要求，以防止过载。
定期检查：定期检查连接器的状态，确保无氧化或损坏，保证接触良好。
总结
T8和T5灯管连接器是一项关键技术，推动了现代照明系统的发展。它们为用户提供了灵活、可靠、安全的灯具连接解决方案，适用于多种应用场合。选择高质量的连接器和灯管，并遵循正确的安装步骤，可以提高照明效果和使用寿命。
Product Name: T8T5 Lamp Tube Connector
Main specifications
Number of lines: 0 to 03
Contact resistance:<20m2
Insulation resistance:>1000MQ
Rated voltage: 125V AC DC
Rated current: 1.0A AC DO
Voltage tolerance: 1000V AC/min
Temperature range: -25 ℃~+105 ℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The T8 and T5 tube connectors are interfaces designed specifically for these two types of fluorescent lamps and LED tubes, with the aim of achieving electrical connection between the tubes and the power supply. The following is a detailed introduction to T8 and T5 tube connectors:
T8 tube connector
1. Introduction
Specification: T8 tube diameter is 1 inch (approximately 2.54 centimeters).
Socket type: G13 socket is usually used.
Application: Widely used in offices, shops, industrial facilities, and home lighting.
2. Type
Direct insertion connector: Users can easily insert the lamp directly into the socket without the need for additional tools.
Terminal connector: The wiring terminal of the lamp tube is fixed by screws, suitable for applications that require higher fixation.
T5 tube connector
1. Introduction
Specification: T5 lamp tube diameter is 5/8 inches (approximately 1.59 centimeters).
Socket type: G5 socket is usually used.
Application: Widely used in various commercial and home lighting occasions, such as supermarkets, lighting under desks, etc.
2. Type
Direct insertion connector: Users can directly insert T5 lamps into the connector for easy replacement and installation.
Terminal connector: By tightening and fixing the lamp tube, it is suitable for situations that require a more stable installation.
Characteristics and advantages
1. Simplicity: The design of T8 and T5 tube connectors makes the installation and maintenance process simple and fast.
2. Durability: Connectors made of high-quality materials can withstand high temperatures and humidity, reducing wear and failure.
3. Strong adaptability: It can be compatible with LED tubes and traditional fluorescent lamps, providing users with a wider range of choices.
4. Safety: It usually has electrical safety certification to ensure safe use under normal working conditions.
Application scenarios
Commercial lighting: suitable for the main lighting needs of office areas, shops, warehouses, and other places.
Industrial lighting: commonly used for lighting around production workshops and machines, providing necessary working light.
Home lighting: Suitable for conventional lighting in areas such as kitchens, garages, corridors, etc.
Precautions for use
Ensure compatibility: When replacing the lamp, it is necessary to ensure that the connector matches the type and specifications of the lamp to avoid compatibility issues.
Power handling: Cut off the power before installing or replacing the lamp to avoid electric shock.
Check the rated value: Ensure that the voltage and power of the lamp tube and connector meet electrical requirements to prevent overload.
Regular inspection: Regularly check the status of the connector to ensure no oxidation or damage, and ensure good contact.
summary
T8 and T5 tube connectors are a key technology that has driven the development of modern lighting systems. They provide users with flexible, reliable, and secure lighting connection solutions, suitable for various application scenarios. Choosing high-quality connectors and light tubes, and following the correct installation steps, can improve lighting effectiveness and lifespan.
