产品图纸（PDF）：KSD-US-04F3-35-11 (螺牙式) 下载

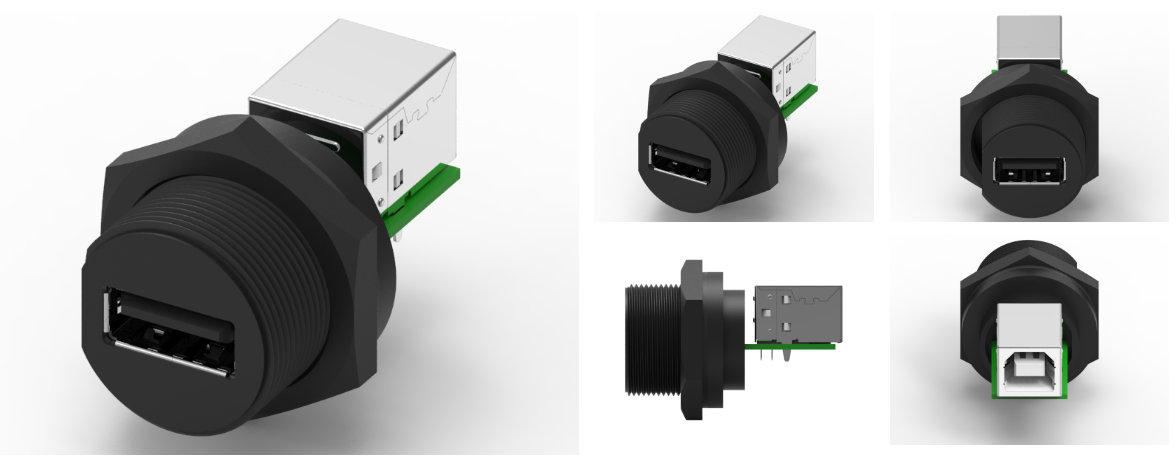

品名：USB 4PIN Type A(母)转Type B(母)防水转接器1.材料1-1.外壳：PBT UL94V0；颜色：黑色1-2.触点：磷青铜1-3.外壳：PA66 UL94V-0；颜色：黑色。1-4.圆形：黄铜1-5.垫片：硅胶；颜色：灰黑色1-6编号：PA662.完成：2-1.触点：镀金2-2.圆形：镀镍3.电气规格：3-1.额定电流：1.5A3-2.额定电压：250V AC3-3.防水等级：IPX74.环境：4-1.工作温度：-20℃~85℃品牌：科斯达开关KSDKG产地：中国东莞USB 4PIN Type A (母) 转 Type B (母) 防水转接器USB 4PIN Type A (母) 转 Type B (母) 防水转接器是一种专用的连接器，旨在实现 USB A 接口与 USB B 接口之间的连接，同时提供防水和防尘的保护，适用于恶劣环境下的应用。主要特点1.防水性能：IP67/IP68 等级：确保在浸水或潮湿环境中的正常使用，能够防止水和灰尘的侵入。密封设计：采用防水材料和密封圈，增强连接器的防护效果。2.兼容性：USB Type A 和 Type B 接口：可以方便地将 USB A 类设备连接到 USB B 类设备，从而实现多种设备间的互联。支持 USB 2.0 / USB 3.0：可兼容多种传输速率的 USB 设备，适应性强。3.耐用材料：抗腐蚀和高强度：使用耐腐蚀的材料，适合户外或工业环境的长期使用。抗冲击设计：增强的结构能够抵御一定程度的外部冲击，确保设备的稳定性。4.方便的连接方式：插拔便捷：设计为即插即用，用户无需特别工具即可完成连接。标识明确：接口标识清晰，便于用户快速识别连接方向。5.小巧设计：节省空间：紧凑的设计适合在空间有限的场合使用，实现灵活布线。应用领域1.工业自动化：在需要防水和防尘的工业环境中，连接传感器和控制器。2.户外设备：如户外监控、便携设备和其他需要可靠数据连接的产品。3.交通运输：适用于汽车、轨道交通等领域的车载设备。4.消费电子：可用于防水音箱、智能家居设备等，确保在潮湿环境中的功能正常。使用注意事项1.正确连接：根据接口标识正确连接以避免损坏。2.定期检查：定期检查连接器的密封性和连接状态，确保其防水性能。3.避免过度弯曲：在使用过程中避免对连接线施加过大拉力，以防止损坏。4.保持清洁：保护连接器不受污垢和腐蚀性化学品的影响，确保长时间稳定使用。总结USB 4PIN Type A (母) 转 Type B (母) 防水转接器是一款极具实用性的连接器，能够在恶劣的环境中提供可靠的接口转换解决方案。其防水特性和广泛的兼容性使其成为工业、户外以及消费电子产品的理想选择。如需进一步了解产品详情或购买，欢迎联系技术员！Product Name: USB 4PIN Type A (Female) to Type B (Female) Waterproof Adapter1. Materials1-1. Shell: PBT UL94V0； Color: Black1-2. Contact: phosphor bronze1-3. Shell: PA66 UL94V-0； Color: Black.1-4. Circular: Brass1-5. Gasket: Silicone; Color: Grey Black1-6 Number: PA662. Complete:2-1. Contact: Gold plating2-2. Circular: Nickel plated3. Electrical specifications:3-1. Rated current: 1.5A3-2. Rated voltage: 250V AC3-3. Waterproof grade: IPX74. Environment:4-1. Working temperature:- 20℃~85℃Brand: Coaster Switch KSDKGOrigin: Dongguan, ChinaUSB 4PIN Type A (female) to Type B (female) waterproof adapterThe USB 4PIN Type A to Type B waterproof adapter is a specialized connector designed to connect the USB A interface to the USB B interface, while providing waterproof and dustproof protection, suitable for applications in harsh environments.main features 1. Waterproof performance:IP67/IP68 rating: ensures normal use in flooded or humid environments, and prevents the intrusion of water and dust.Sealing design: Using waterproof materials and sealing rings to enhance the protective effect of the connector.2. Compatibility:USB Type A and Type B interfaces: can easily connect USB Class A devices to USB Class B devices, thereby achieving interconnection between multiple devices.Supports USB 2.0/USB 3.0: Compatible with USB devices with multiple transfer rates and strong adaptability.3. Durable materials:Corrosion resistance and high strength: using corrosion-resistant materials, suitable for long-term use in outdoor or industrial environments.Impact resistant design: The enhanced structure can withstand a certain degree of external impact, ensuring the stability of the equipment.4. Convenient connection method:Easy to plug and play: Designed to be plug and play, users can connect without the need for special tools.Clear identification: The interface identification is clear, making it easy for users to quickly identify the connection direction.5. Compact design:Space saving: The compact design is suitable for use in situations with limited space, enabling flexible wiring.application area 1. Industrial automation: Connect sensors and controllers in industrial environments that require waterproofing and dust prevention.2. Outdoor equipment: such as outdoor monitoring, portable devices, and other products that require reliable data connectivity.3. Transportation: Suitable for on-board equipment in fields such as automobiles and rail transit.4. Consumer electronics: can be used for waterproof speakers, smart home devices, etc., to ensure normal functionality in humid environments.Precautions for use1. Correct connection: Connect correctly according to the interface identification to avoid damage.2. Regular inspection: Regularly check the sealing and connection status of the connector to ensure its waterproof performance.3. Avoid excessive bending: Avoid applying excessive tension to the connecting wire during use to prevent damage.4. Keep clean: Protect the connector from dirt and corrosive chemicals to ensure long-term stable use.summaryThe USB 4PIN Type A to Type B waterproof adapter is a highly practical connector that provides a reliable interface conversion solution in harsh environments. Its waterproof properties and wide compatibility make it an ideal choice for industrial, outdoor, and consumer electronics products. If you need further information about the product or purchase, please feel free to contact the technician!
