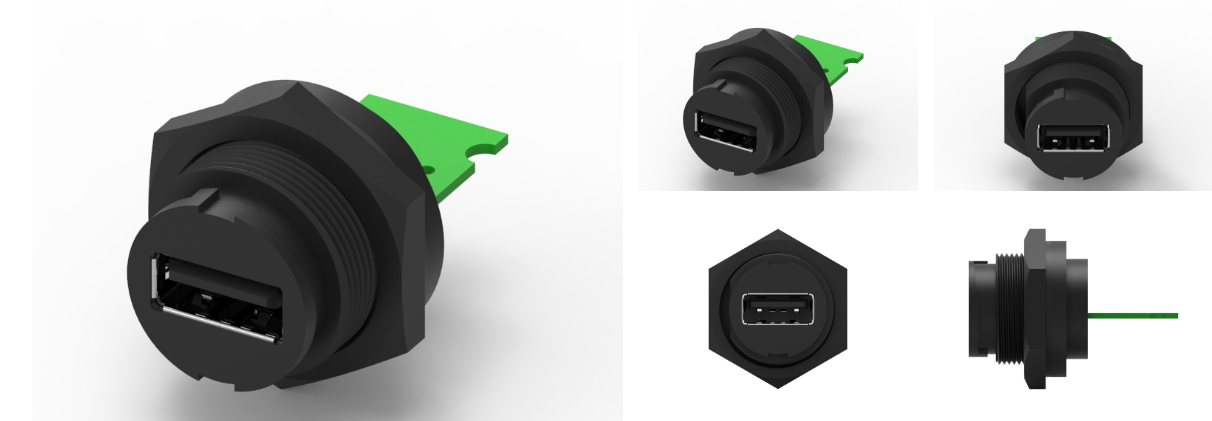

品名：USB 母头4PIN Type A前锁焊线式防水连接器(带PCB 快锁式)
1.材料：
1-1.外壳：PBT UL94V0；颜色：黑色
1-2.触点：磷青铜
1-3.外壳：PA66 UL94V0；颜色：黑色，
1-4.圆形：SUS
1-5.垫片：硅；颜色：灰黑色。
1-6. 螺母：PA66
2.完成：
2-1.触点：镀金
2-2.圆形：镀镍
3.电气规格：
3-1.额定电流：1.5A
3-2.额定电压：250V AC
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


USB 母头 4PIN Type A 前锁焊线式防水连接器（带 PCB 快锁式）
USB 母头 4PIN Type A 前锁焊线式防水连接器（带 PCB 快锁式） 是一种设计专为户外和恶劣环境应用而生产的连接器。它结合了焊线连接和 PCB 安装的优点，确保连接的稳定性与防水防尘性能，适用于各种工业和消费电子设备。

主要特点
1.防水防尘设计：
IP67/IP68 防护等级：有效抵御水和灰尘的影响，适合在多湿、尘土飞扬的环境中使用。
密封设计：采用特殊材料和结构，确保连接时的密封性，有效阻止液体和固体物质的侵入。

2.前锁焊线式连接：
焊线设计：能够与各种导线可靠连接，提供稳固的电气连接，适合长期使用。
前锁结构：通过旋转锁定机制，确保连接器在插拔时的稳定性，减少因振动而引起的松动。

3.PCB 快锁式设计：
便捷安装：连接器适配于标准 PCB 板，可以快速安装与更换，极大简化设备的组装过程。
稳定性增强：PCB 设计确保连接器在电路板上的牢固固定，提高整体结构的稳定性。

4.4PIN 标准接口：
多功能性：支持多种设备连接，适用于数据传输、供电等多种应用场景。
高效性能：提供稳定的电流与数据传输，满足工业和消费领域的需求。

5.耐用材料：
高强度构造：使用耐高温、抗腐蚀的材料制造，确保其在严苛环境下的性能可靠。
经久耐用：设计上考虑了长期频繁使用的情况，确保连接器的长期可靠性。

应用领域
1.工业自动化：广泛应用于工业控制器、PLC、传感器等，确保在复杂环境中的稳定运行。

2.户外设备：适合气象监测设备、野外探测器、无人机等，与其环境相适应。

3.消费电子：可在便携式设备、音响系统等应用，确保良好的防护性能。

4.医疗器械：广泛应用于医疗监测设备，确保数据传输的安全与准确。

使用注意事项
1.正确连接：在安装前，确保焊线和连接器的清洁，无灰尘和污垢，以确保良好的接触。

2.操作规范：进行焊接时，要注意焊接温度和时间，以免损坏连接器内部结构。

3.定期维护：定期检查连接器密封性和焊点状态，及时更换出现磨损或老化的部件。

4.防化学物质：避免连接器接触强酸强碱等化学物质，以延长其使用寿命。

总结
USB 母头 4PIN Type A 前锁焊线式防水连接器（带 PCB 快锁式） 是一款结合了焊接连接和快速锁定功能的高性能防水连接器，适合用于各种严苛环境的设备。其出色的防护能力、便捷的安装特性以及高效的性能，使其成为工业、户外及医疗设备的理想选择。如果您有任何疑问或需要进一步的信息，欢迎联系技术员！



Product Name: USB Female 4PIN Type A Front Lock Solder Wire Waterproof Connector (with PCB Quick Lock)
1. Materials:
1-1. Shell: PBT UL94V0； Color: Black
1-2. Contact: phosphor bronze
1-3. Shell: PA66 UL94V0； Color: Black,
1-4. Circular: SUS
1-5. Gasket: Silicon; Color: Grey black.
1-6.  Nut: PA66
2. Complete:
2-1. Contact: Gold plating
2-2. Circular: Nickel plated
3. Electrical specifications:
3-1. Rated current: 1.5A
3-2. Rated voltage: 250V AC
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


USB Female 4PIN Type A Front Lock Solder Wire Waterproof Connector (with PCB Quick Lock)
The USB female 4PIN Type A front lock solder wire waterproof connector (with PCB quick lock) is a connector designed specifically for outdoor and harsh environmental applications. It combines the advantages of wire bonding and PCB installation, ensuring stability and waterproof and dustproof performance of the connection, and is suitable for various industrial and consumer electronic devices.

main features
1. Waterproof and dustproof design:
IP67/IP68 protection level: effectively resists the influence of water and dust, suitable for use in damp and dusty environments.
Sealing design: Using special materials and structures to ensure sealing during connection, effectively preventing the intrusion of liquids and solid substances.

2. Front lock welding wire connection:
Solder wire design: It can reliably connect with various wires, provide stable electrical connections, and is suitable for long-term use.
Front lock structure: By rotating the locking mechanism, the stability of the connector during insertion and removal is ensured, reducing looseness caused by vibration.

3. PCB quick lock design:
Convenient installation: The connector is compatible with standard PCB boards, allowing for quick installation and replacement, greatly simplifying the equipment assembly process.
Stability enhancement: PCB design ensures the firm fixation of connectors on the circuit board, improving the overall structural stability.

4.4PIN standard interface:
Multifunctionality: Supports multiple device connections, suitable for various application scenarios such as data transmission and power supply.
Efficient performance: Provides stable current and data transmission to meet the needs of both industrial and consumer sectors.

5. Durable materials:
High strength construction: Made of materials that are resistant to high temperatures and corrosion, ensuring reliable performance in harsh environments.
Durable: The design takes into account long-term and frequent use to ensure the long-term reliability of the connector.

application area
1. Industrial automation: widely used in industrial controllers PLC、 Sensors and other components ensure stable operation in complex environments.

2. Outdoor equipment: Suitable for meteorological monitoring equipment, field detectors, drones, etc., and adapted to their environment.

3. Consumer electronics: It can be used in portable devices, audio systems, and other applications to ensure good protective performance.

4. Medical devices: widely used in medical monitoring equipment to ensure the safety and accuracy of data transmission.

Precautions for use
1. Correct connection: Before installation, ensure that the solder wires and connectors are clean, free of dust and dirt to ensure good contact.

2. Operation specifications: When welding, pay attention to the welding temperature and time to avoid damaging the internal structure of the connector.

3. Regular maintenance: Regularly check the sealing and welding status of the connector, and replace any worn or aged components in a timely manner.

4. Chemical protection: Avoid the connector from coming into contact with strong acids, alkalis, and other chemical substances to extend its service life.

summary
The USB female 4PIN Type A front lock solder wire waterproof connector (with PCB quick lock) is a high-performance waterproof connector that combines solder connection and quick locking functions, suitable for devices in various harsh environments. Its excellent protective capabilities, convenient installation features, and efficient performance make it an ideal choice for industrial, outdoor, and medical equipment. If you have any questions or need further information, please feel free to contact the technician!
