USB-AF-107

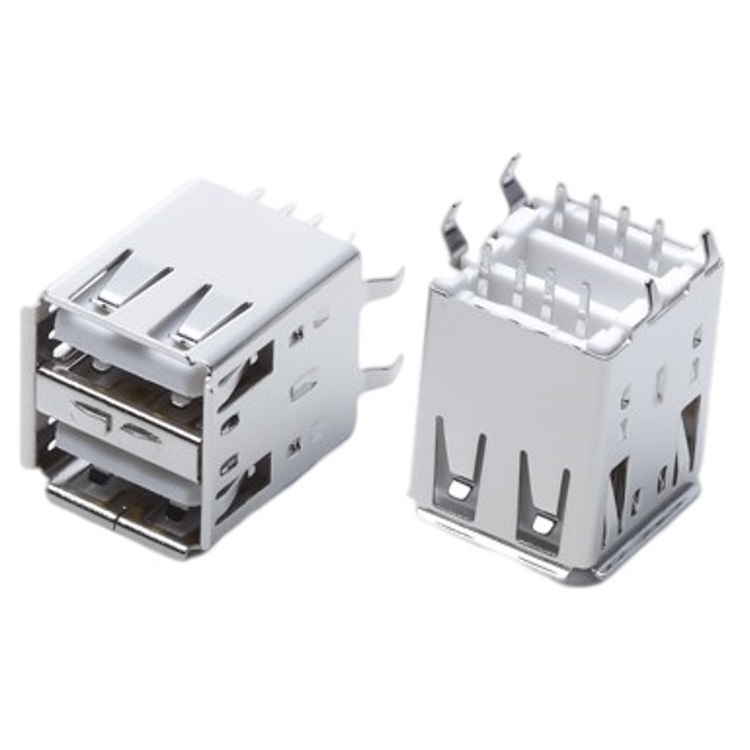

品名：2.0USB插座 USB接口2.0连接器

2.0USB插座技术参数：

1.额定负荷: DC 30V 60V  1A  3A

2.接触电阻: ≤50mΩ

3.绝缘阻抗: ≥100mΩ DC250V

4.耐焊温度: 250℃＋5℃

5.使用湿度: ≤85%RH

6.插拔寿命:10,000 Cycles

7.插拔力:2-20N

8.品牌 科斯达  KOSOD  KSDKG

Product name:  USB 2.0 Jack connector

Technical parameters of 2.0 USB Jack female seat:

1. Rated load: DC 30V 60V 1A 3A

2. Contact resistance: ≤50mΩ

3. Insulation resistance: ≥100mΩ DC250V

4. Soldering resistance temperature: 250℃＋5℃

5. Operating humidity: ≤85%RH

6. Plug life: 10,000 Cycles

7. Insertion and extraction force: 2-20N

8. Brand  KOSOD  KSDKG
