KSD-US-04M1-31

KSD-US-04M1-31

  • 产品特性
  • 应用范围

图纸下载 样品申请

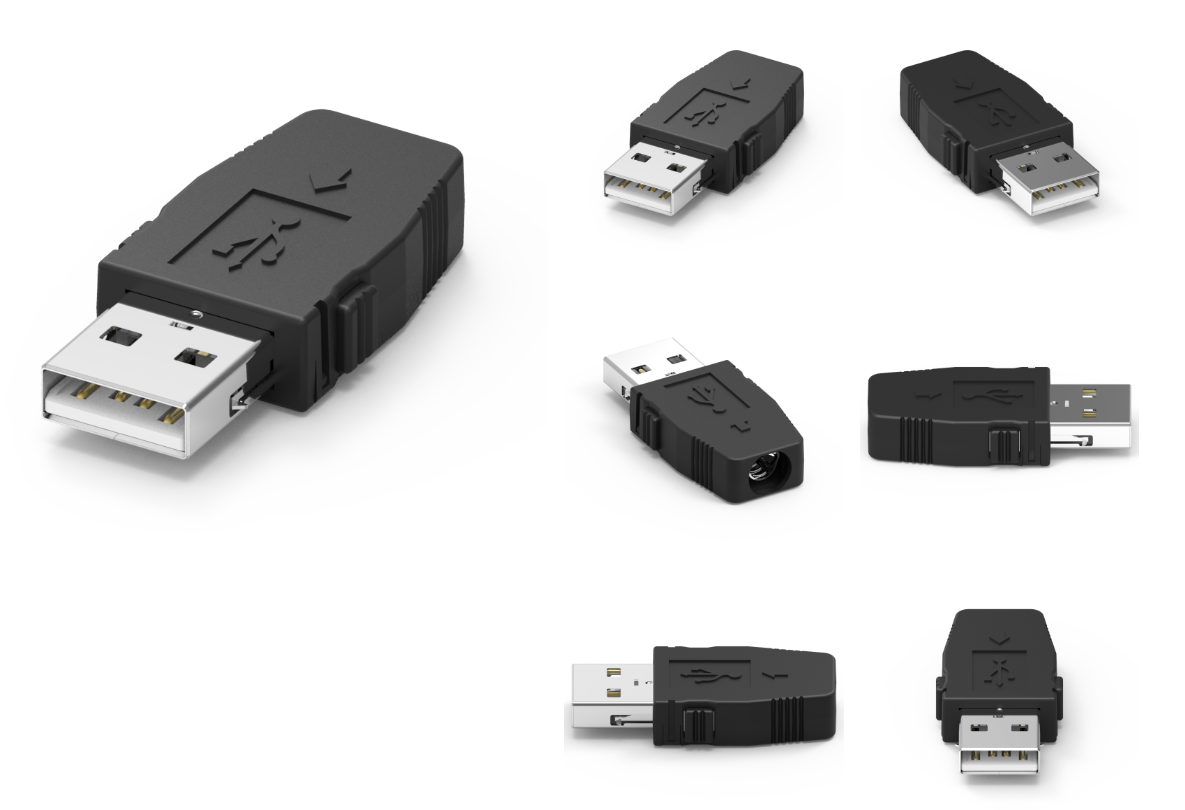

品名：USB 公头4PIN Type A 组装式连接器(带Lock)
注：
1.材料：
1-1.底盖外壳：ABS；颜色：黑色
1-2.顶盖外壳：ABS；颜色：黑色
1-3.按钮：PBT+30%GFUL94V0；颜色：黑色
1-4.右锁弹簧：SUS（301）
1-5.左锁弹簧：SUS（301）
1-6.插头前壳：SPCC
1-7.插头后壳：SPCC
1-8.外壳：PBT+30%GFUL94V-0
1-9.触点：青铜
A1-10.外壳：PBT+30%玻璃纤维UL94V-0
2.完成：
2-1.触点：30U“镀金/镀锡
2-2.插头前壳：整体镀镍
2-3.插头后壳：全部镀镍
品牌：科斯达开关KSDKG
产地：中国东莞


USB 公头 4PIN Type A 组装式连接器（带 Lock）
USB 公头 4PIN Type A 组装式连接器（带 Lock） 是一种用于数据传输和电力传输的连接器，广泛应用于各种电子设备中。与传统的 USB Type A 连接器相比，这种连接器在设计上增添了锁定机制，可以提供更强的连接稳定性，避免因物理拉扯或震动导致的连接松脱问题。

主要特点
1.锁定功能：
稳固连接：带 Lock 的设计可以确保在设备连接后不会轻易从插头拔出，适合需要稳定连接的应用场景。
简易操作：通常具备简单的按压或旋转式锁定机制，方便用户操作。

2.4PIN 设计：
标准配置：标准的 USB Type A 连接器通常包含 4 个引脚，支持 USB 2.0 及其更高版本的数据传输和电源供应。
数据和电源传输：引脚配置一般包括数据传输（D+ 和 D-）和电源线（VCC 和 GND），满足大多数常规设备的需求。

3.组件组装：
便于组装：设计为组装式连接器，用户可以根据需要单独连接线缆，方便进行产品定制和维护。
模块化设计：可更换或维护单一组件，降低整体维修成本。

4.耐用性：
优质材料：通常使用高强度塑料和金属材料，以确保在频繁连接和断开时仍然保持良好的性能。
防护设计：部分连接器具有防水防尘的特性，适用于恶劣环境下的使用。

5.应用广泛：
适用多种设备：可以广泛应用于电脑、移动设备、打印机、音响设备、工业设备等各种电子产品。

应用领域
1.消费电子：适用于智能手机、平板电脑及其他便携设备的充电和数据传输。

2.工业自动化：用于工业控制系统中的连接，提供数据传输和电源供给。

3.医疗设备：在医疗仪器上，确保设备之间的可靠连接与数据共享。

4.通讯设备：在网络和通信设备中，作为数据和电源连接的标准接口。

使用注意事项
1.安装与拆卸：
安装时确保连接器插入到位，并根据锁定机制确保其安全连接。
拆卸时按下锁定机制再进行拔插，以避免损坏连接器。

2.定期检查：
定期检查连接器的接触点，以防止因氧化或污垢导致的接触不良。
确保锁定功能工作正常，避免意外松脱。

3.注意负载：
确保连接器的额定电压和电流符合设备要求，避免过载使用。
避免在连接器周围施加过大的物理压力。

4.环境适应性：
如果在较恶劣环境下使用，选择符合防水、防尘要求的连接器，以延长使用寿命。

总结
USB 公头 4PIN Type A 组装式连接器（带 Lock） 是一种高效、方便、可靠的连接解决方案，特别适合需要牢固连接的应用场合。在众多电子设备中，使用此种连接器能够有效提升设备的连接稳固性。如果您有关于此连接器的更多问题或需要详细的技术支持，欢迎联系技术员！



Product Name: USB Male 4PIN Type A Assembled Connector (with Lock)
Note:
1. Materials:
1-1. Bottom cover shell: ABS； Color: Black
1-2. Top cover shell: ABS； Color: Black
1-3. Button: PBT+30%GFUL94V0； Color: Black
1-4. Right lock spring: SUS（301）
1-5. Left lock spring: SUS（301）
1-6. Front shell of plug: SPCC
1-7. Rear shell of plug: SPCC
1-8. Shell: PBT+30%GFUL94V-0
1-9. Contact: Bronze
A1-10. Shell: PBT+30% glass fiber UL94V-0
2. Complete:
2-1. Contact: 30U "gold-plated/tinned
2-2. Front shell of plug: nickel plated as a whole
2-3. Rear shell of plug: all nickel plated
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


USB male 4PIN Type A assembled connector (with Lock)
The USB male 4PIN Type A assembled connector (with Lock) is a connector used for data and power transmission, widely used in various electronic devices. Compared with traditional USB Type A connectors, this connector adds a locking mechanism in its design, which can provide stronger connection stability and avoid connection loosening problems caused by physical pulling or vibration.

main features
1. Locking function:
Stable connection: The design with Lock ensures that the device will not be easily unplugged after connection, making it suitable for applications that require stable connection.
Easy operation: usually equipped with a simple press or rotation locking mechanism, convenient for users to operate.

2.4PIN design:
Standard configuration: A standard USB Type A connector typically includes 4 pins and supports data transfer and power supply for USB 2.0 and higher versions.
Data and power transmission: Pin configurations generally include data transmission (D+and D -) and power lines (VCC and GND) to meet the needs of most conventional devices.

3. Component assembly:
Easy to assemble: Designed as an assembled connector, users can connect cables separately as needed, making it convenient for product customization and maintenance.
Modular design: can replace or maintain a single component, reducing overall maintenance costs.

4. Durability:
High quality materials: High strength plastic and metal materials are usually used to ensure good performance even when frequently connected and disconnected.
Protective design: Some connectors have waterproof and dustproof characteristics, suitable for use in harsh environments.

5. Widely applicable:
Suitable for various devices: It can be widely used in various electronic products such as computers, mobile devices, printers, audio equipment, industrial equipment, etc.

application area
1. Consumer electronics: suitable for charging and data transmission of smartphones, tablets, and other portable devices.

2. Industrial automation: used for connections in industrial control systems, providing data transmission and power supply.

3. Medical equipment: Ensure reliable connections and data sharing between medical devices.

4. Communication equipment: As a standard interface for data and power connections in networks and communication devices.

Precautions for use
1. Installation and disassembly:
Ensure that the connector is inserted into place during installation and secure its connection according to the locking mechanism.
Press the locking mechanism before plugging and unplugging during disassembly to avoid damaging the connector.

2. Regular inspection:
Regularly check the contact points of the connector to prevent poor contact caused by oxidation or dirt.
Ensure that the locking function is working properly to avoid accidental loosening.

3. Pay attention to the load:
Ensure that the rated voltage and current of the connector meet the equipment requirements and avoid overloading during use.
Avoid applying excessive physical pressure around the connector.

4. Environmental adaptability:
If used in harsh environments, choose connectors that meet waterproof and dustproof requirements to extend their service life.

summary
The USB male 4PIN Type A assembled connector (with Lock) is an efficient, convenient, and reliable connection solution, especially suitable for applications that require secure connections. Among numerous electronic devices, using this type of connector can effectively improve the connection stability of the device. If you have any further questions about this connector or need detailed technical support, please feel free to contact a technician!
