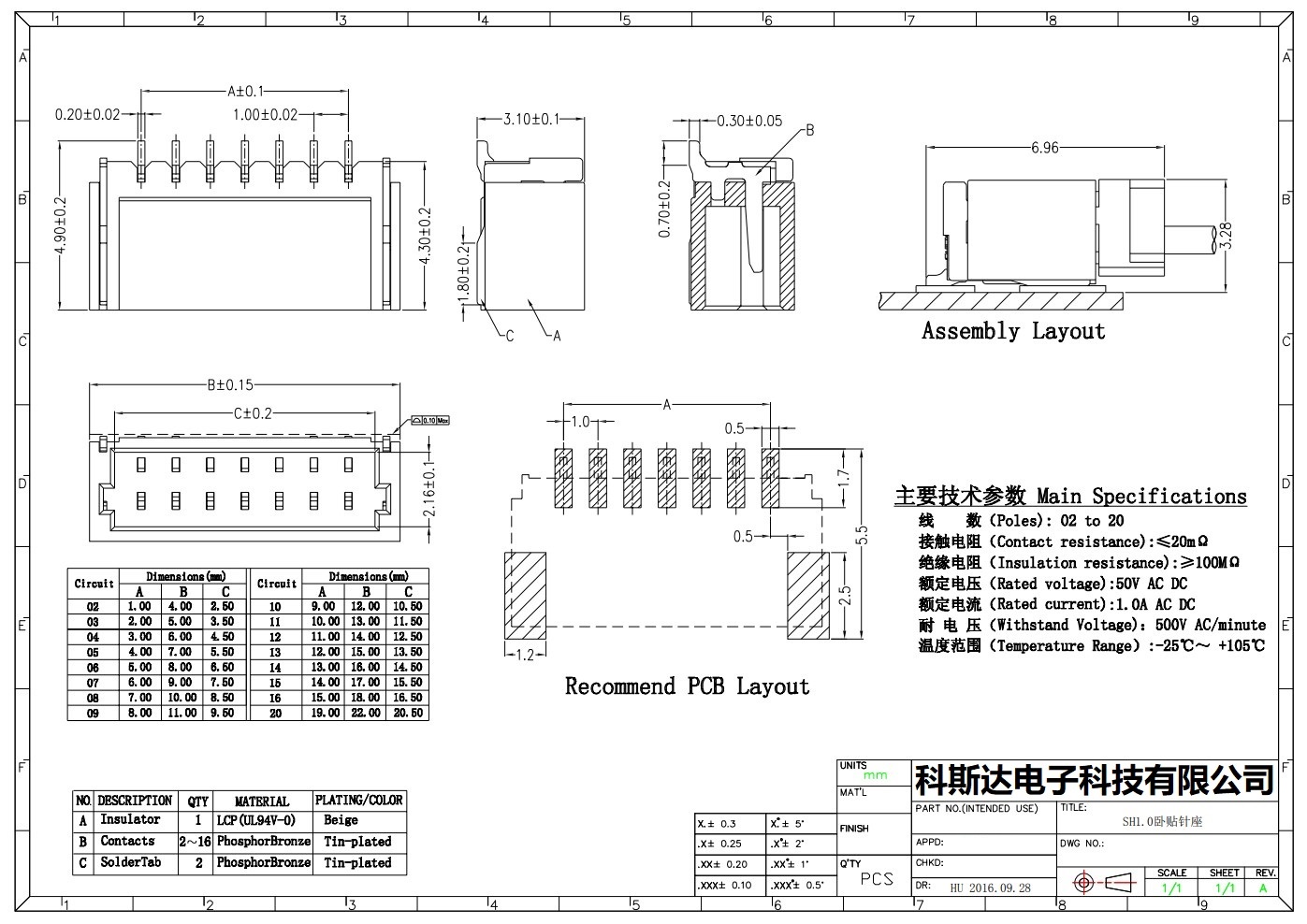

WA-10-103 卧贴针座

额定电流：1A
额定电压：100V
耐电压：500V
接触电阻：≤20mΩ
绝缘电阻：500MΩ
工作温度：-20℃~+85℃
塑件(材质)：LCP, UL94V-0
插簧(材质)：黄铜，镀锡
焊片(材质)：磷青铜，镀锡
品牌 科斯达  KOSOD  KSDKG

Rated current: 1A
Rated voltage: 100V
Withstand voltage: 500V
Contact resistance: ≤20mΩ
Insulation resistance: 500MΩ
Working temperature: -20℃~+85℃
Plastic parts (material): LCP, UL94V-0
Insert spring (material): brass, tin plated
Solder Tab (Material): Phosphor Bronze, Tin Plating
Brand KOSOD KOSOD KSDKG
