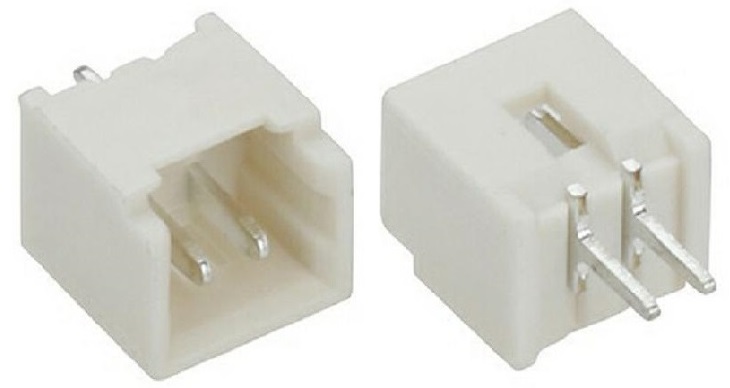

产品名称：针座1.25间距
规格：
额定电流：1.0A AC，DC
额定电压：250V AC、DC
温度额定值：-25℃~+85℃
绝缘电阻：最小1000M52。
耐压：500 AC/分钟
接触电阻：20m（2/最大
材料：
外壳：尼龙46或LCP，UL94V-0
触点：黄铜/锡覆镍
产品符合：ROHS
品牌：科斯达开关 KSDKG
产地：中国东莞
针座1.25间距通常指的是电子元件（如插头、插座或连接器）中各个针脚之间的中心距离为1.25毫米。这种间距广泛应用于各种电路板连接器和组件中。
描述要点：
1.针脚间距（Pitch）：1.25mm是针脚之间的距离，意味着每个针脚的中心到下一个针脚的中心之间的距离为1.25mm。
2.应用：这种间距常见于小型连接器、传感器、数据传输接口等电子设备中，适合空间有限的设计。
3.标准化：针座1.25mm的规格和标准使得在设计电路板和连接器时能够保证兼容性和互换性。
4.选择依据：在选择1.25mm针座时，需要考虑电流承载能力、插拔次数、封装类型等因素，以确保满足项目的需求。
线对板连接器（也称为线对线连接器或端子连接器）在1.25毫米间距下有以下特点：
1.小型化设计：1.25毫米的间距使得连接器更加紧凑，适合小型电子设备，如移动电话、便携式设备等。
2.高密度排列：由于间距小，能够在有限的空间中实现更多连接，适合高密度布局的电路板设计。
3.良好的插拔性能：通常这些连接器设计为易于连接和拔出，适合频繁插拔的场合。
4.多种端口配置：可根据需要提供不同数量的针脚配置，灵活性较高。
5.可靠的固定和防止松动：大部分此类连接器具有锁扣设计，确保连接时的稳定性，减少脱落或接触不良的风险。
6.适合自动化装配：小间距连接器通常设计为可以适应自动化生产线，提高生产效率。
7.多种材料和工艺：可根据不同应用需求选择金属材料（如镀金、镀锡等）和绝缘材料，提高抗腐蚀性和电气性能。
8.广泛应用：被广泛应用于消费电子、通信设备、计算机及其他工业设备中。
这些特点使得1.25毫米间距的线对板连接器在现代电子产品设计中应用广泛，成为重要的连接方案之一。
Product Name: Needle Seat 1.25 Pitch
Specifications:
Rated current: 1.0A AC, DC
Rated voltage: 250V AC, DC
Temperature rating: -25 ℃~+85 ℃
Insulation resistance: minimum 1000M52.
Voltage resistance: 500 AC/min
Contact resistance: 20m (2/maximum)
Material Science:
Shell: Nylon 46 or LCP, UL94V-0
Contact: brass/tin coated nickel
Product compliance: ROHS
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The 1.25mm spacing between pin sockets usually refers to the center distance of 1.25 millimeters between each pin in electronic components such as plugs, sockets, or connectors. This spacing is widely used in various circuit board connectors and components.
Key points of description:
1. Pitch: 1.25mm is the distance between the pins, which means that the distance between the center of each pin and the center of the next pin is 1.25mm.
2. Application: This spacing is commonly used in electronic devices such as small connectors, sensors, and data transmission interfaces, and is suitable for designs with limited space.
3. Standardization: The specification and standard of 1.25mm needle hub ensure compatibility and interchangeability when designing circuit boards and connectors.
4. Selection criteria: When selecting a 1.25mm needle holder, factors such as current carrying capacity, number of insertions and removals, and packaging type need to be considered to ensure that the project requirements are met.
Wire to board connectors (also known as wire to wire connectors or terminal connectors) have the following characteristics at a spacing of 1.25 millimeters:
1. Miniaturization design: The 1.25mm spacing makes the connector more compact, suitable for small electronic devices such as mobile phones, portable devices, etc.
2. High density arrangement: Due to the small spacing, more connections can be achieved in limited space, making it suitable for high-density layout circuit board design.
3. Good plug and unplug performance: These connectors are usually designed to be easy to connect and unplug, suitable for frequent plugging and unplugging situations.
4. Multiple port configurations: Different numbers of pin configurations can be provided according to needs, with high flexibility.
5. Reliable fixation and prevention of looseness: Most of these connectors have a locking design to ensure stability during connection and reduce the risk of detachment or poor contact.
6. Suitable for automated assembly: Small pitch connectors are usually designed to adapt to automated production lines and improve production efficiency.
7. Multiple materials and processes: Metal materials (such as gold plating, tin plating, etc.) and insulation materials can be selected according to different application needs to improve corrosion resistance and electrical performance.
8. Wide application: Widely used in consumer electronics, communication devices, computers, and other industrial equipment.
These characteristics make 1.25mm pitch wire to board connectors widely used in modern electronic product design and become one of the important connection solutions.
