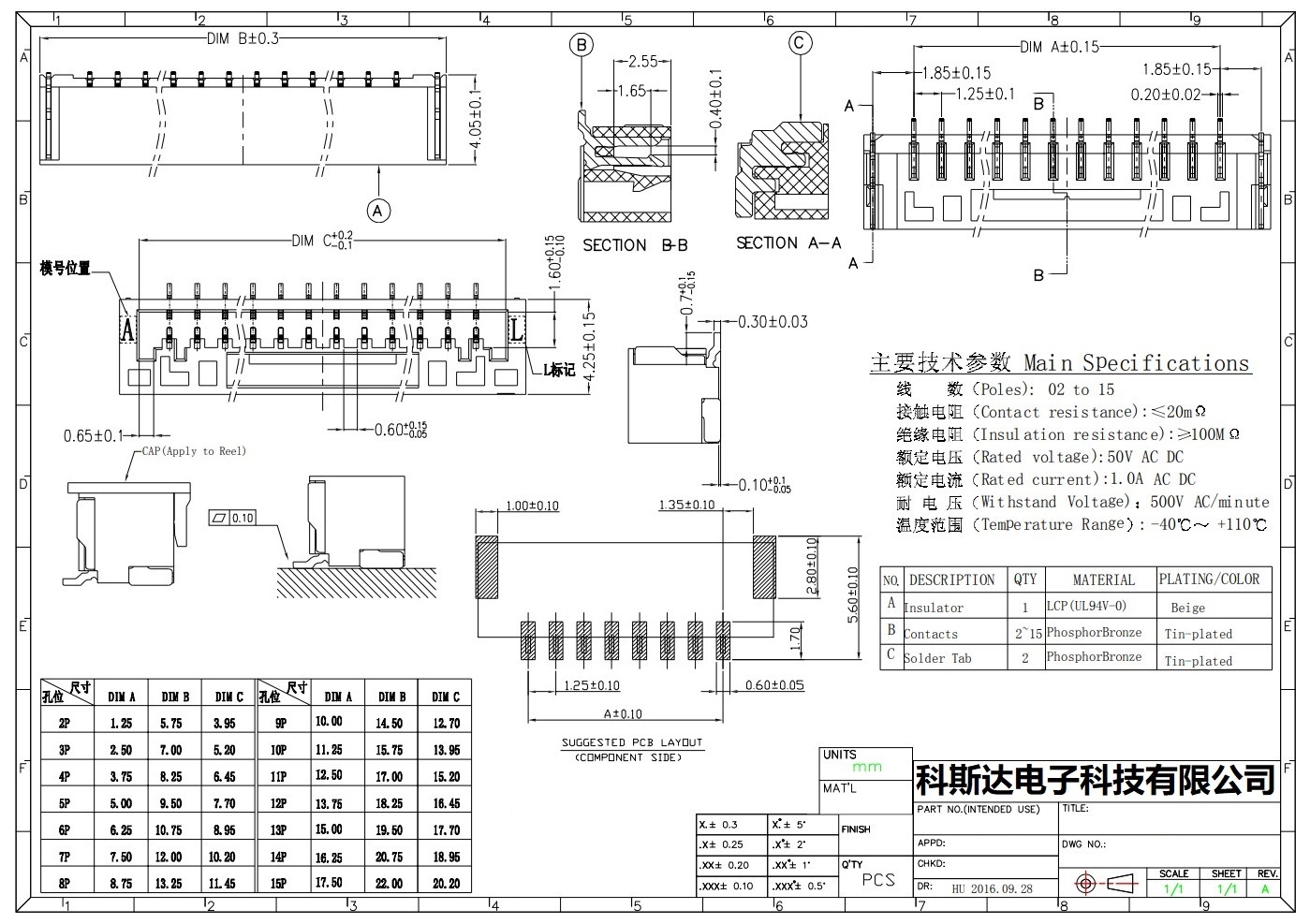

线 数：2-15
额定电流：1A
额定电压：50V
耐电压：500V
接触电阻：≤20mΩ
绝缘电阻：100MΩ
工作温度：-40℃~+110℃
塑件(材质)：LCP, UL94V-0
插簧(材质)：黄铜，镀锡
焊片(材质)：磷青铜，镀锡
包 装：1K/卷
品牌 科斯达 KOSOD KSDKG
Number of lines: 2-15
Rated current: 1A
Rated voltage: 50V
Withstand voltage: 500V
Contact resistance: ≤20mΩ
Insulation resistance: 100MΩ
Working temperature: -40℃~+110℃
Plastic parts (material): LCP, UL94V-0
Insert spring (material): brass, tin plated
Solder Tab (Material): Phosphor Bronze, Tin Plating
Packing: 1K/roll
Brand KOSOD KOSOD KSDKG
