WA-202

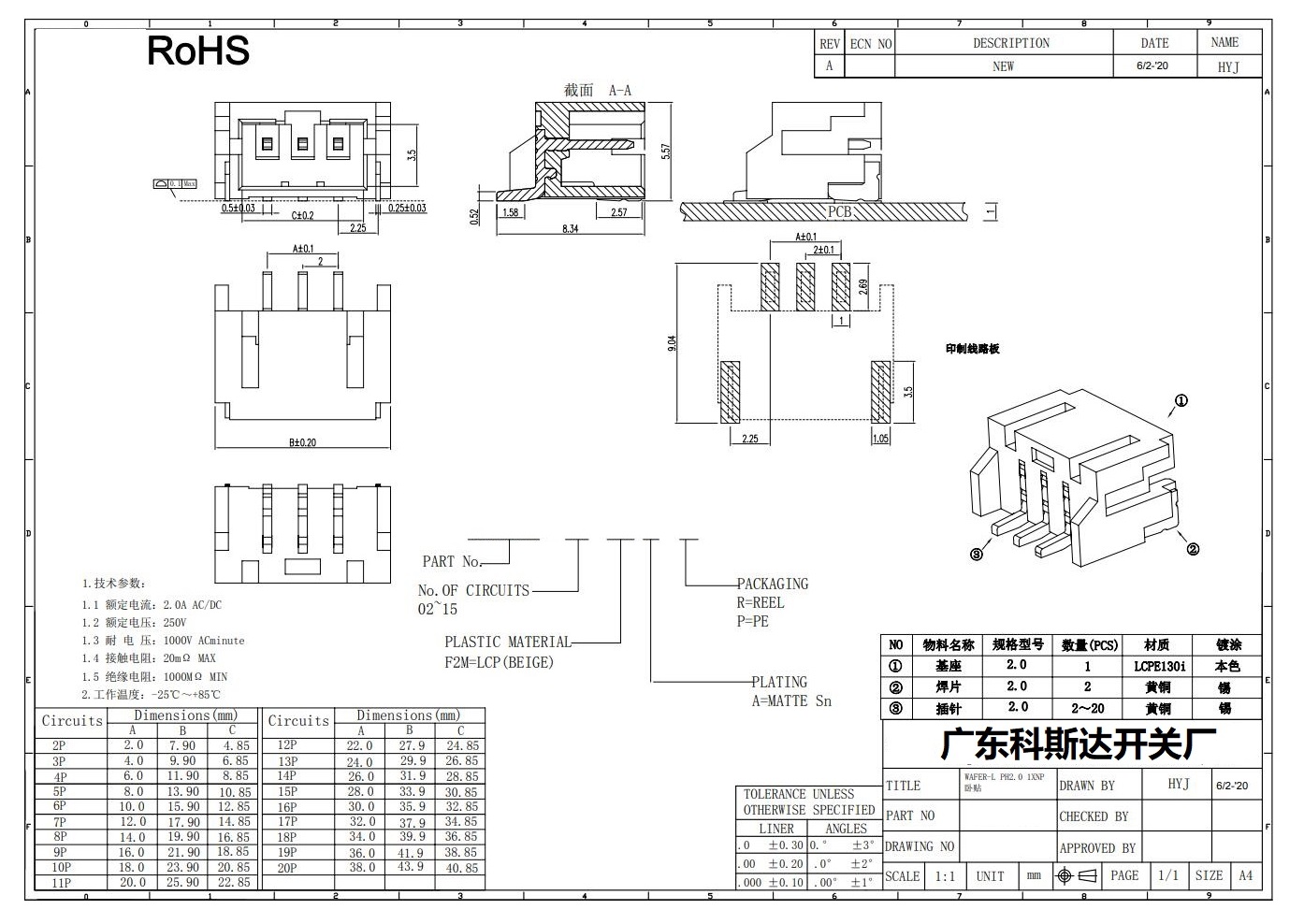

产品图纸（PDF）：WA-202 下载

• 产品特性

• 应用范围

技术指标:
额定电流: 2.0AMP AC/DC
接触电阻: 20mΩ Max
耐电压: 800V AC/DC
绝缘电阻: 1000mΩ Min
工作温度: -25°C to + 85°C
接触材料: Brass
接触镀层: Au or Sn over Ni
绝缘材料: PA6T
交配:

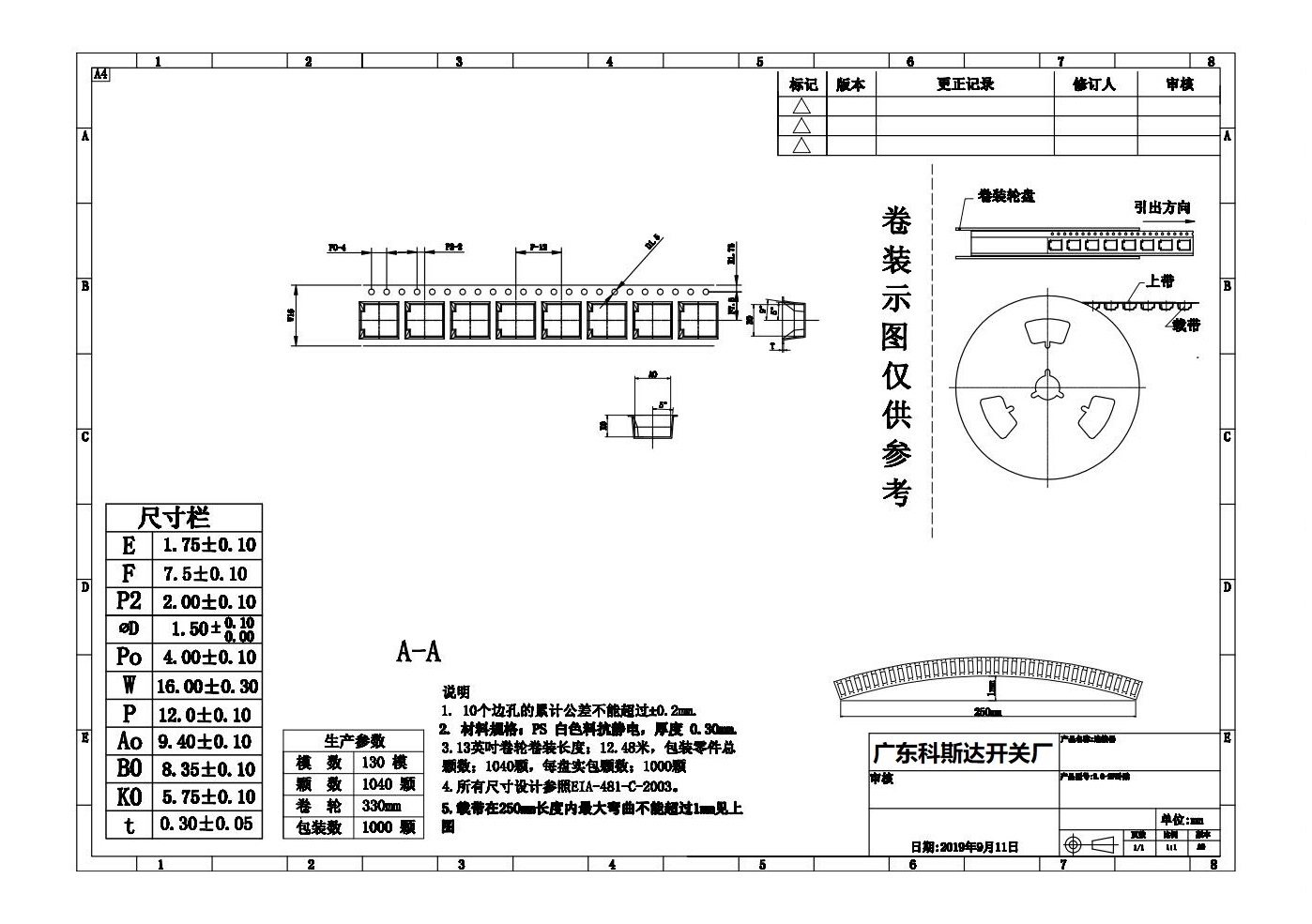

包装:Bag

交货时间:7~15 Day

UL: Yes
ROHS Compliant
品牌 科斯达  KOSOD  KSDKG

Technical indicators:
Rated current: 2.0AMP AC/DC
Contact Resistance: 20mΩ Max
Withstand voltage: 800V AC/DC
Insulation resistance: 1000mΩ Min
Operating temperature: -25°C to + 85°C
Contact material: Brass
Contact Plating: Au or Sn over Ni
Insulation material: PA6T
mating:
Packaging: Bag

Delivery time: 7~15 Days

UL: Yes
ROHS Compliant
Brand KOSOD KOSOD KSDKG
