KSD-WAFER--04B

KSD-WAFER--04B

  • 产品特性
  • 应用范围

图纸下载 样品申请

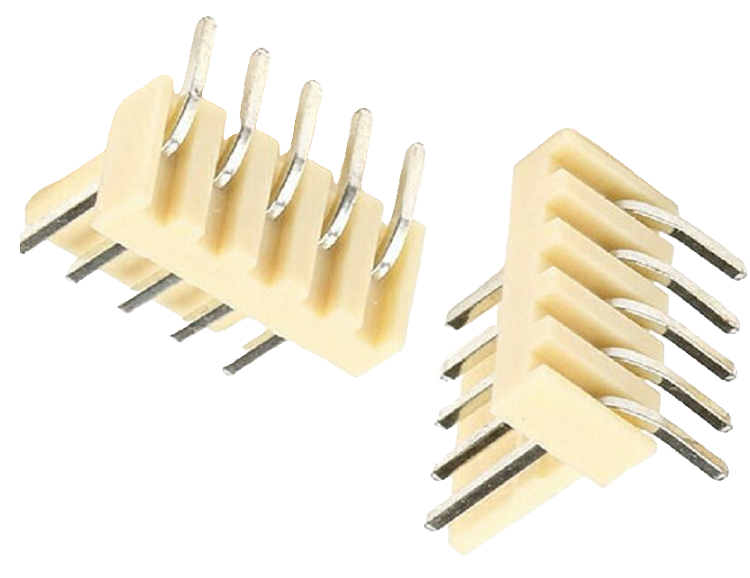

产品名称：针座2.5间距
规格
额定电流：2.0A AC，DC
额定电压：100V AC、DC
温度额定值：-25℃~+85℃
绝缘电阻：最小1000M52。
耐压：800V AC/分钟
接触电阻：20m52/最大
材料：
外壳：尼龙66，UL94V-2
引脚：黄铜/镀锡
触点：磷青铜
产品符合：ROHS
品牌：科斯达开关 KSDKG
产地：中国东莞


“针座2.5间距”通常是指在电路板或者相关电子产品中，针座（也称插座）的引脚之间的距离为2.5毫米。这种间距标准常见于各种连接器和插座，尤其是在电子元件、模块和电路板设计中。
特点：
1.标准化设计：2.5mm间距有助于标准化电子元件，使其能够更好地与其他组件兼容。
2.紧凑性：较小的间距允许设计更紧凑的电路布局，节省空间。
3.应用广泛：这种针座常用于各种电子产品，如计算机、家用电器、传感器和通信设备。

注意事项：
确保在设计时考虑到引脚的型号和规格，以保证连接的稳定性和可靠性。
在焊接或安装过程中，确保精确对齐，以避免短路或接触不良。

线对板连接器（也称为线对板接头）是一种用于连接电缆和电路板的电子连接器，广泛应用于各种电子设备，包括家电、通信设备和工业设备等。

2.5mm线对板连接器，一般指的是插针间距为2.5mm的连接器。这种连接器通常具有以下特点：
1.针脚间距：2.5mm间距的设计使得连接器在尺寸上相对紧凑，适合空间有限的应用场合。

2.种类：可以有多种类型，比如单排/双排插头、插座等，具体选择依赖于电路设计的需求。

3.应用：广泛应用于音频设备、传感器连接、电源连接以及信号传输等。

4.3电流额定值：根据具体型号和设计，通常有额定电流和电压的限制，选型时需考虑负载能力。

5.材料和耐用性：一般采用耐高温、耐腐蚀的材料，确保在不同环境下的可靠性。


线对板连接器2.5mm是一种常用的连接器，广泛应用于电子设备中。其主要特点包括：
1.小型化设计：2.5mm的极小尺寸便于在空间有限的环境中使用，适合紧凑型电子产品。

2.可靠性高：通常采用高质量的材料和制造工艺，具有良好的耐用性和稳定性，确保连接可靠。

3.易于安装：设计上便于快速连接与拆卸，提高了安装和维护的便利性。

4.多种引脚配置：可根据需要提供不同数量的引脚，适应多种应用场景。

5.防尘防水：某些型号具备防尘和防水功能，适合在恶劣环境中使用。

6.电气性能优良：可支持高电流和高频率信号传输，确保电气连接稳定。

7.标准化：符合国际标准，容易与其他组件兼容。



Product Name: Needle Seat 2.5 Spacing
Specifications
Rated current: 2.0A AC, DC
Rated voltage: 100V AC, DC
Temperature rating: -25 ℃~+85 ℃
Insulation resistance: minimum 1000M52.
Voltage resistance: 800V AC/min
Contact resistance: 20m52/maximum
Material Science:
Shell: Nylon 66, UL94V-2
Pin: brass/tin plated
Contact: phosphor bronze
Product compliance: ROHS
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


The "2.5 spacing between needle sockets" usually refers to the distance of 2.5 millimeters between the pins of the needle sockets (also known as sockets) in circuit boards or related electronic products. This spacing standard is commonly used in various connectors and sockets, especially in the design of electronic components, modules, and circuit boards.
characteristic:
1. Standardized design: A 2.5mm spacing helps standardize electronic components, making them more compatible with other components.
2. Compact: Smaller spacing allows for more compact circuit layouts, saving space.
3. Wide application: This needle holder is commonly used in various electronic products, such as computers, household appliances, sensors, and communication devices.

matters needing attention:
Ensure that the pin model and specifications are taken into account during design to ensure the stability and reliability of the connection.
Ensure precise alignment during welding or installation to avoid short circuits or poor contact.

Wire to board connector (also known as wire to board connector) is an electronic connector used to connect cables and circuit boards, widely used in various electronic devices, including home appliances, communication equipment, and industrial equipment.

A 2.5mm wire to board connector generally refers to a connector with a pin spacing of 2.5mm. This type of connector typically has the following characteristics:
1. Pin spacing: The 2.5mm spacing design makes the connector relatively compact in size, suitable for applications with limited space.

2. Types: There can be multiple types, such as single/double row plugs, sockets, etc., and the specific selection depends on the requirements of the circuit design.

3. Application: Widely used in audio devices, sensor connections, power connections, and signal transmission.

4.3 Current rating: Depending on the specific model and design, there are usually limitations on the rated current and voltage. When selecting, the load capacity should be considered.

5. Materials and Durability: High temperature and corrosion-resistant materials are generally used to ensure reliability in different environments.


The 2.5mm wire to board connector is a commonly used connector, widely used in electronic devices. Its main features include:
1. Miniaturization design: The extremely small size of 2.5mm is convenient for use in environments with limited space, making it suitable for compact electronic products.

2. High reliability: High quality materials and manufacturing processes are usually used, which have good durability and stability, ensuring reliable connections.

3. Easy to install: Designed for quick connection and disassembly, it improves the convenience of installation and maintenance.

4. Multiple pin configurations: Different numbers of pins can be provided as needed to adapt to various application scenarios.

5. Dustproof and Waterproof: Some models have dustproof and waterproof functions, suitable for use in harsh environments.

6. Excellent electrical performance: It can support high current and high-frequency signal transmission, ensuring stable electrical connections.

7. Standardization: Complies with international standards and is easily compatible with other components.
