WA-500

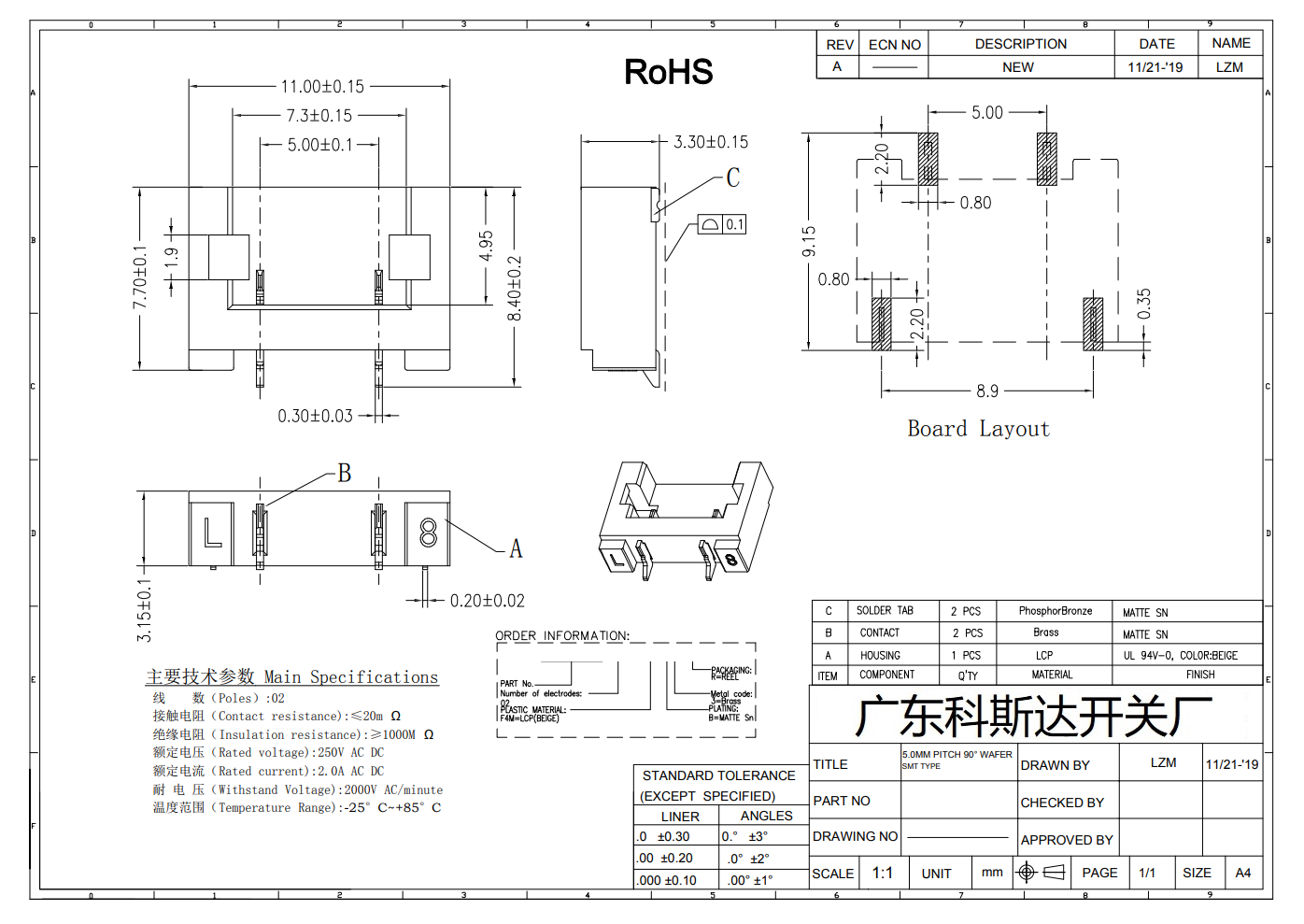

产品图纸（PDF）：WA-500 下载

• 产品特性

• 应用范围

技术指标:

主要技术参数 Main Specifications

线 数（Poles）:02

接触电阻（Contact resistance):≤20m Ω

绝缘电阻（Insulation resistance):≥1000M Ω

额定电压（Rated voltage):250V AC DC

额定电流（Rated current):2.0A AC DC

耐 电 压（Withstand Voltage):2000V AC/minute

温度范围（Temperature Range):-25°C~+85°C
品牌 科斯达  KOSOD  KSDKG

Technical indicators:
Main Specifications

Lines (Poles): 02

Contact resistance: ≤20m Ω

Insulation resistance: ≥1000M Ω

Rated voltage: 250V AC DC

Rated current: 2.0A AC DC

Withstand Voltage: 2000V AC/minute

Temperature Range: -25°C~+85°C
Brand KOSOD KOSOD KSDKG
