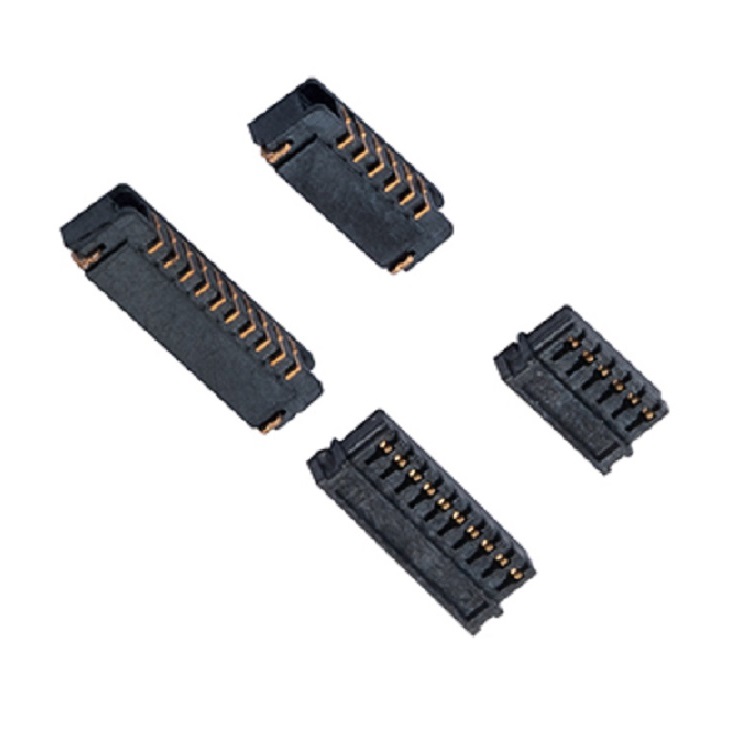

产品名称：线对板连接器
产品规格：
线数：02至20
接触电阻：<20mQ
绝缘电阻：>100MQ
额定电压：125V AC DC
额定电流：1.0A AC DC
耐压：500V AC/分钟
温度范围：-25℃~+85℃
外壳：PA6T UL94V-0，天然
触点：磷青铜/亚光镀锡
焊片：黄铜/亚光镀锡
品牌：科斯达开关KSDKG
产地：中国东莞
线对板连接器（Wire-to-Board Connector）是一种用于将电缆或导线与印刷电路板（PCB）之间进行电气连接的元件。它在各种电子设备中广泛使用，用于实现信号和电力的传输。以下是对线对板连接器的详细描述：
1. 结构组成
插头（Plug）：线对板连接器的一部分，通常由导体和绝缘体构成，引脚部分通过电缆与电源或信号源连接。
插座（Receptacle）：另一部分，通常固定在PCB上，通过焊接等方式与电路板连接。
锁定机制：一些连接器设计有锁定功能，以确保连接牢固，不易松动。
2. 类型
单排和双排：根据引脚排列的不同，线对板连接器可分为单排和双排连接器。
不同的针脚数：连接器的针脚数目可以根据具体应用需求而变化，从几个到几十个不等。
不同形状和大小：根据设备设计和空间限制，连接器的形状和尺寸也多种多样。
3. 功能
信号与电源传输：能够传输电流和信号，适用于电气和通信系统。
模块化设计：支持将模块化组件快速连接和断开，便于维护和更换。
简化生产过程：提高了组装效率，允许自动化生产。
4. 优点
安装简便：许多线对板连接器设计为插拔式，方便安装和拆卸。
高可靠性：构造坚固，能够承受一定的机械应力和振动，提供可靠的电气连接。
多样性：适用于多种电气和电子应用，具有广泛的适用性。
成本效益：相较于其他连接方式，线对板连接器在大规模生产时具有良好的成本效益。
5. 应用领域
消费电子：如手机、平板电脑、笔记本电脑等。
工业设备：PLC、传感器、自动化设备等。
汽车电子：用于车载电子设备，如控制模块、传感器等。
通信设备：路由器、基站、网络交换机等。
6. 安装注意事项
确保兼容性：选择与PCB设计和电缆规范相匹配的连接器。
正确的焊接：需要确保插座在PCB上的焊接质量，以避免连接不良。
防止过度扭曲：在插拔时避免过度扭转或拉动，以保护连接器和引脚。
总结
线对板连接器是现代电子产品中至关重要的组件，负责将电缆与电路板进行有效的连接。其高可靠性、简单的安装方式以及广泛的应用领域使其成为许多电子和电气设备的首选连接方案。
Product Name: Wire to Board Connector
Product specifications:
Number of lines: 02 to 20
Contact resistance:<20mQ
Insulation resistance:>100MQ
Rated voltage: 125V AC DC
Rated current: 1.0A AC DC
Voltage resistance: 500V AC/min
Temperature range: -25 ℃~+85 ℃
Shell: PA6T UL94V-0, natural
Contact: phosphor bronze/matte tin plating
Solder pads: brass/matte tin plated
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
A wire to board connector is a component used to electrically connect cables or wires to a printed circuit board (PCB). It is widely used in various electronic devices to achieve the transmission of signals and power. The following is a detailed description of the wire to board connector:
1. Structural composition
Plug: A part of a wire to board connector, usually composed of conductors and insulators, with the pin portion connected to a power or signal source through a cable.
Receptacle: Another part, usually fixed on the PCB and connected to the circuit board through soldering or other methods.
Locking mechanism: Some connectors are designed with a locking function to ensure a secure connection and prevent loosening.
2. Type
Single row and double row: According to the different pin arrangements, wire to board connectors can be divided into single row and double row connectors.
Different pin numbers: The number of pins on the connector can vary according to specific application requirements, ranging from a few to dozens.
Different shapes and sizes: Depending on device design and space constraints, connectors come in a variety of shapes and sizes.
3. Function
Signal and power transmission: capable of transmitting current and signals, suitable for electrical and communication systems.
Modular design: supports quick connection and disconnection of modular components for easy maintenance and replacement.
Simplify the production process: improves assembly efficiency and allows for automated production.
4. Advantages
Easy to install: Many wire to board connectors are designed to be plug-in, making installation and disassembly convenient.
High reliability: The structure is sturdy and can withstand certain mechanical stress and vibration, providing reliable electrical connections.
Diversity: Suitable for various electrical and electronic applications, with broad applicability.
Cost effectiveness: Compared to other connection methods, wire to board connectors have good cost-effectiveness in large-scale production.
5. Application Fields
Consumer electronics: such as mobile phones, tablets, laptops, etc.
Industrial equipment: PLC, sensors, automation equipment, etc.
Automotive electronics: used for in car electronic devices such as control modules, sensors, etc.
Communication equipment: routers, base stations, network switches, etc.
6. Installation precautions
Ensure compatibility: Choose connectors that match the PCB design and cable specifications.
Correct soldering: It is necessary to ensure the soldering quality of the socket on the PCB to avoid poor connections.
Prevent excessive twisting: Avoid excessive twisting or pulling during insertion and removal to protect the connector and pins.
summary
Wire to board connectors are crucial components in modern electronic products, responsible for effectively connecting cables to circuit boards. Its high reliability, simple installation method, and wide range of applications make it the preferred connection solution for many electronic and electrical devices.
