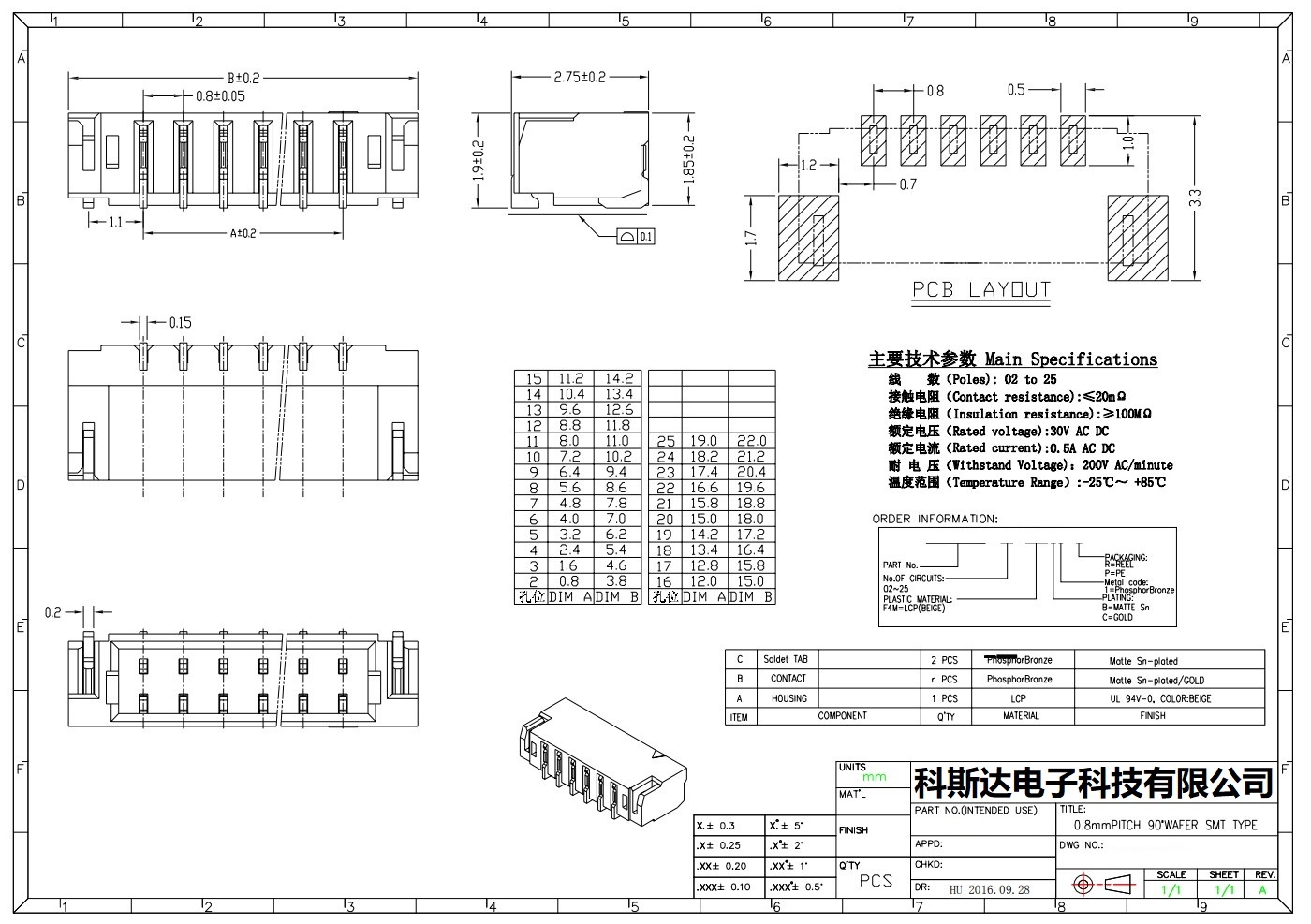

线 数:02-25P
接触电阻: ≤20mΩ
绝缘电阻:≥100MΩ
额定电压:30V AC DC
额定电流:0.5A AC DC
耐电压:200V AC/minute
温度范围:-25℃~+85℃
材 料:磷铜 LCP米色
最小包装:卷装 3K/卷
品牌 科斯达 KOSOD KSDKG
Line number: 02-25P
Contact resistance: ≤20mΩ
Insulation resistance: ≥100MΩ
Rated voltage: 30V AC DC
Rated current: 0.5A AC DC
Withstand voltage: 200V AC/minute
Temperature range: -25℃~+85℃
Material: Phosphor Bronze LCP Beige
Minimum package: roll 3K/roll
Brand KOSOD KOSOD KSDKG
