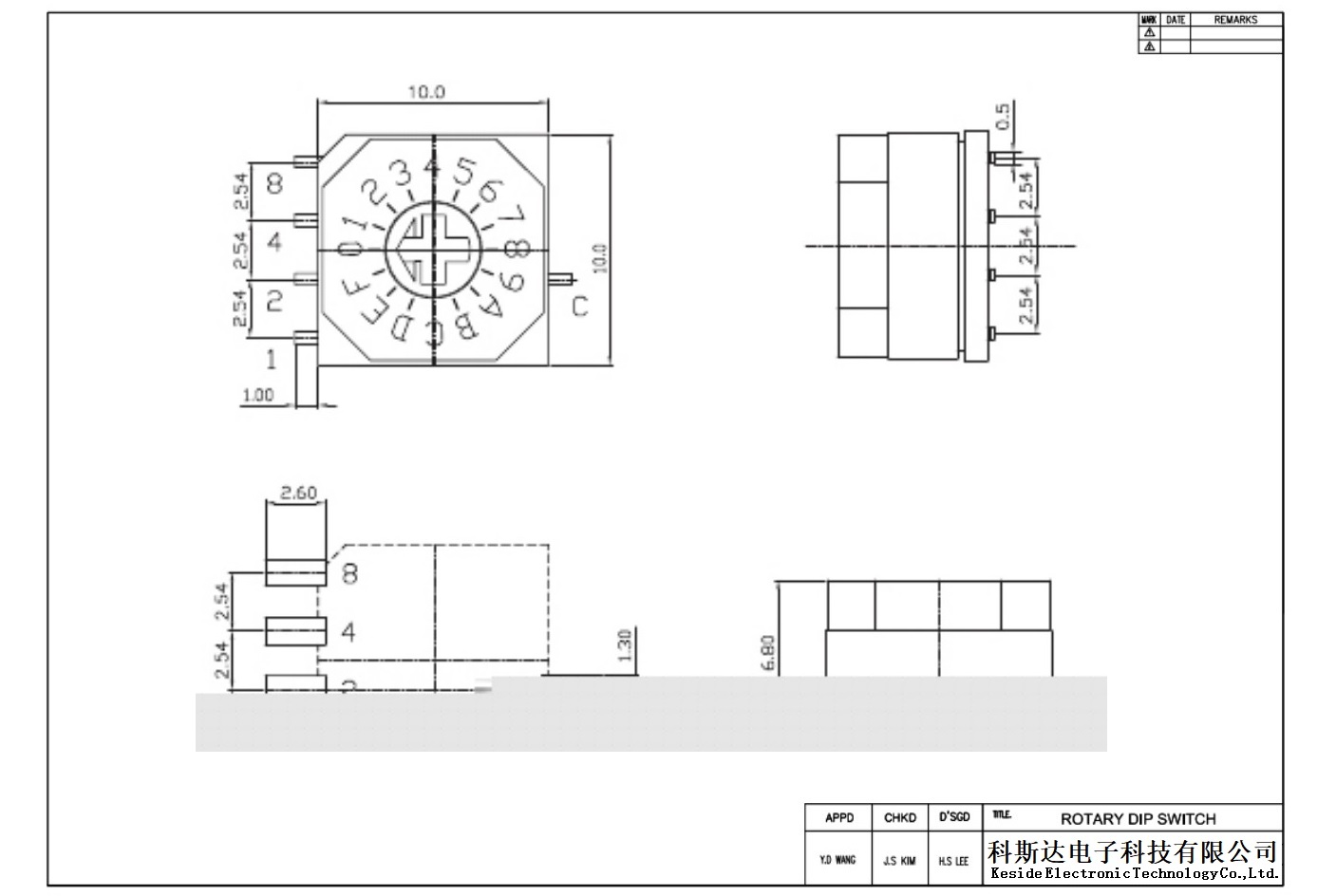

KSD-BDR-16S

编码旋转开关技术参数 ROTARY DIP SWITCH

General Specification产品性能

1. Rating Voltage 42V 工作电流,电压 150mA(Switching)200mA (None-Switching)

2. Contact Resistance 80mQ Max接触电阻

3. Insulation Resistance 100MQ Min 绝缘电阻

4.Operating Force700gf Max 操作力

5.Life Cycle 10,000 steps使用寿命

6.Solder Condition lron Soldering : 2s/340°℃焊接方式Wave Soldering :5s/280℃

7.Sealing IP67 (Dust & Water Proof)防水系数+ Except Cross Type ofActuator("D"Type)
