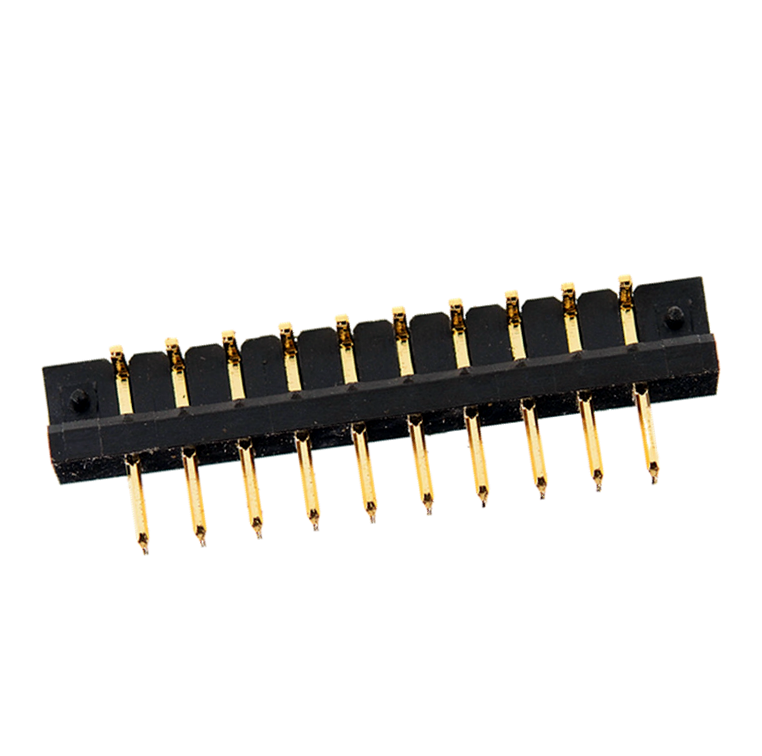

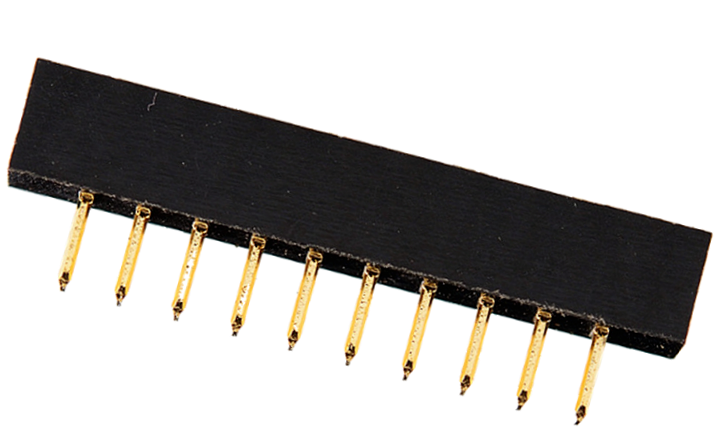

KSD-T10-6-25

产品名称：刀片连接器  笔记本刀片连接器
品  牌：科斯达开关  KSDKG / KOSOD SWITCH
刀片电池连接器产品参数：
笔记本刀片连接器PIN数：2Pin-12pin
绝缘主体：Nylon 6T/9T（UL94V-0）
五金导体：磷铜C5191
表面镀层：金在镍/锡之上，镀层厚度3U″
绝缘电阻：100MΩ Min
接触电阻：30mΩ Max
额定电流：3A 5A 7A/PIN
瞬间电流：7A/PIN - 10A/PIN
额定电压：125V AC/Min
工作温度：-30℃~105℃
耐 电 压：500V
耐 高 温：260℃/5S
盐雾试验：48H
工作寿命：5000cycles
刀片连接器适用范围：工控设备 电脑笔记本、计算机设备、汽车工业、小家电吸尘器、无人机、智能锁、行车记录仪、数码相机及各类锂电池保护板。

Product name: Blade connector Notebook blade connector
Brand: KSDKG / KOSOD SWITCH
Blade battery connector product parameters:
Notebook blade connector PIN number: 2Pin-12pin
Insulation main body: Nylon 6T/9T (UL94V-0)
Hardware conductor: phosphor copper C5191
Surface coating: gold on top of nickel/tin, the thickness of the coating is 3U″
Insulation resistance: 100MΩ Min
Contact resistance: 30mΩ Max
Rated current: 3A 5A 7A/PIN
Instantaneous current: 7A/PIN-10A/PIN
Rated voltage: 125V AC/Min
Working temperature: -30℃~105℃
Withstand voltage: 500V
High temperature resistance: 260℃/5S
Salt spray test: 48H
Working life: 5000cycles
The scope of application of the blade connector: industrial control equipment, computer notebooks, computer equipment, automobile industry, small household appliances vacuum cleaners, drones, smart locks, driving recorders, digital cameras and various lithium battery protection boards.
