KSD-T3-6-25

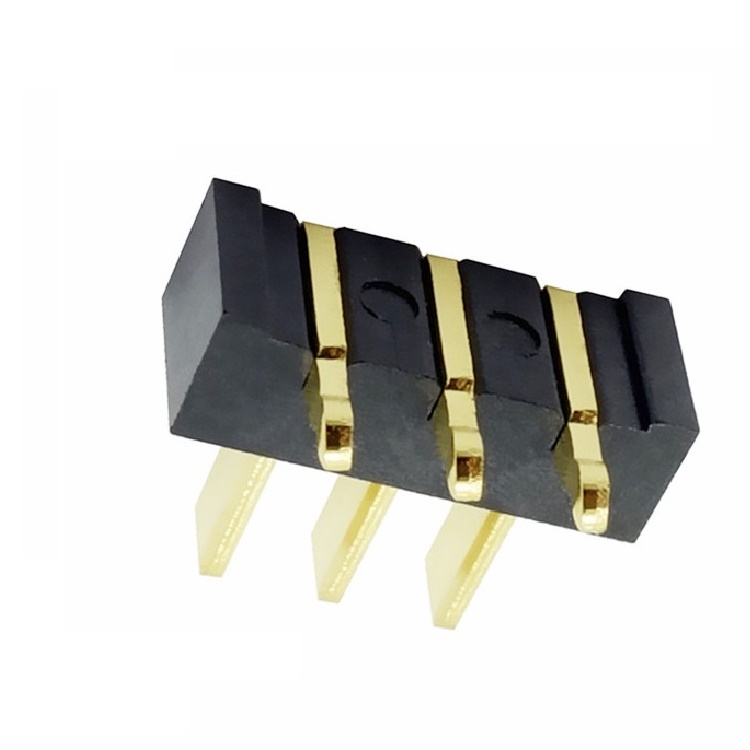

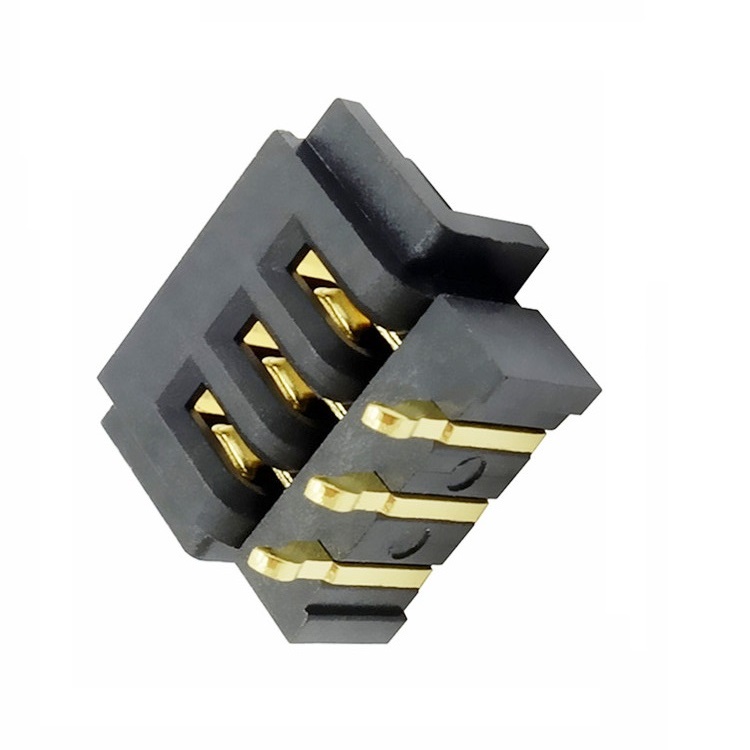

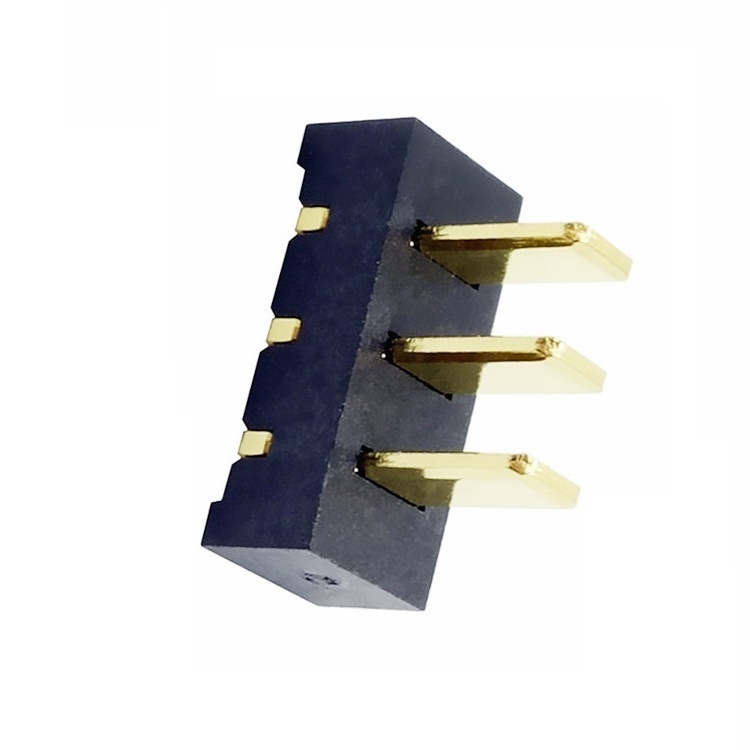

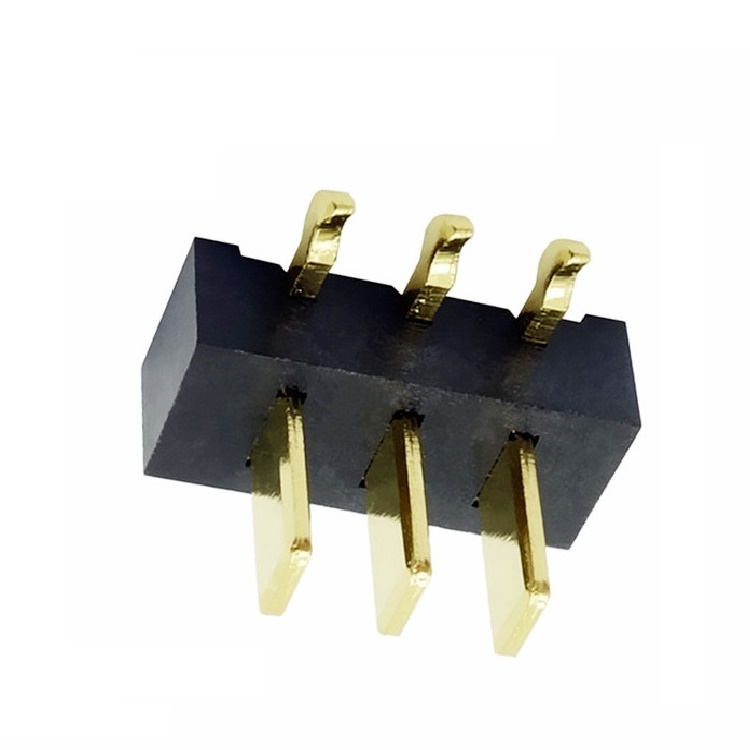

产品名称：电池座  电池连接器  笔记本电池座 电池插座

品  牌：科斯达  KSDKG / KOSOD SWITCH

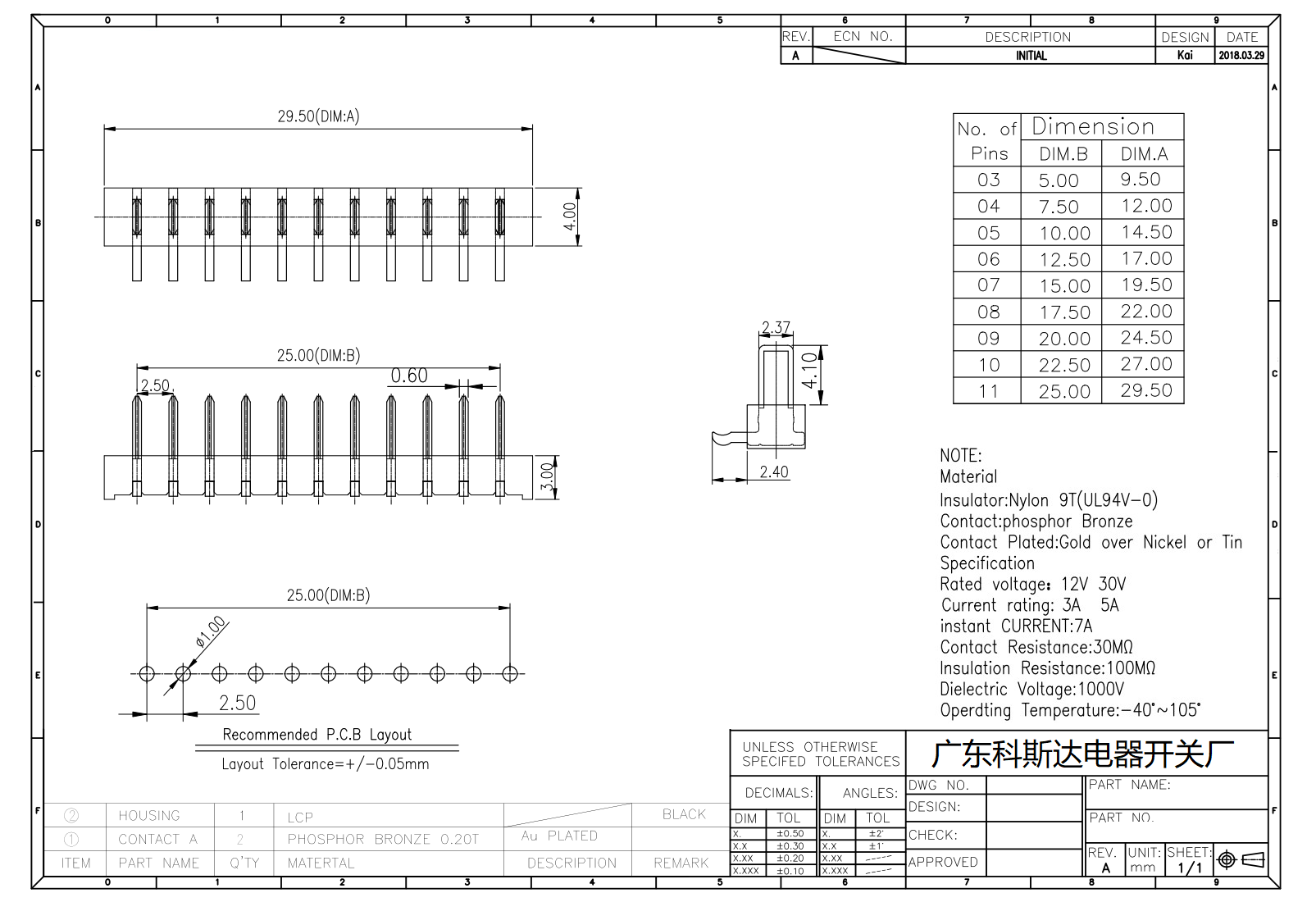

电池连接器产品参数：

电池连接器PIN数：2Pin-14pin

绝缘主体：Nylon 6T/9T（UL94V-0）

五金导体：磷铜C5191

表面镀层：金在镍/锡之上，镀层厚度3U″

绝缘电阻：100MΩ Min

接触电阻：30mΩ Max

额定电流：3A 5A 7A/PIN

瞬间电流：7A/PIN - 10A/PIN

额定电压：12V  24V DC

工作温度：-30℃~105℃

耐 电 压：500V / 1000V

耐 高 温：260℃/5S

盐雾试验：48H

工作寿命：5000cycles

适用范围：工控设备 电脑笔记本、计算机设备、汽车工业、小家电吸尘器、无人机、智能锁、行车记录仪、数码相机及各类锂电池保护板。

Product name: battery jack, battery connector, laptop battery holder, battery socket, battery interface

Brand: KSDKG / KOSOD SWITCH

Battery connector product parameters:

Battery connector PIN number: 2Pin-14pin

Insulation main body: Nylon 6T/9T (UL94V-0)

Hardware conductor: phosphor copper C5191

Surface coating: gold on top of nickel/tin, the thickness of the coating is 3U″

Insulation resistance: 100MΩ Min

Contact resistance: 30mΩ Max

Rated current: 3A 5A 7A/PIN

Instantaneous current: 7A/PIN-10A/PIN

Rated voltage: 12V 24V DC

Working temperature: -30℃~105℃

Withstand voltage: 500V / 1000V

High temperature resistance: 260℃/5S

Salt spray test: 48H

Working life: 5000cycles

Scope of application: industrial control equipment, computer notebooks, computer equipment, automotive industry, small household appliances, vacuum cleaners, drones, smart locks, driving recorders, digital cameras and various lithium battery protection boards.
