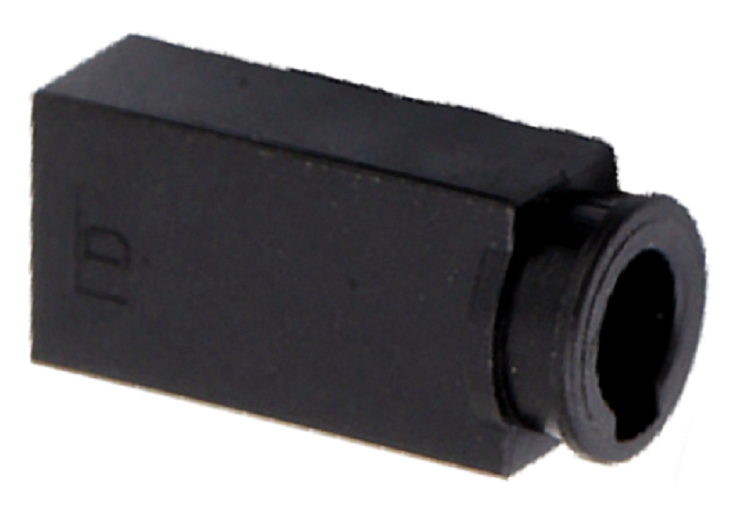

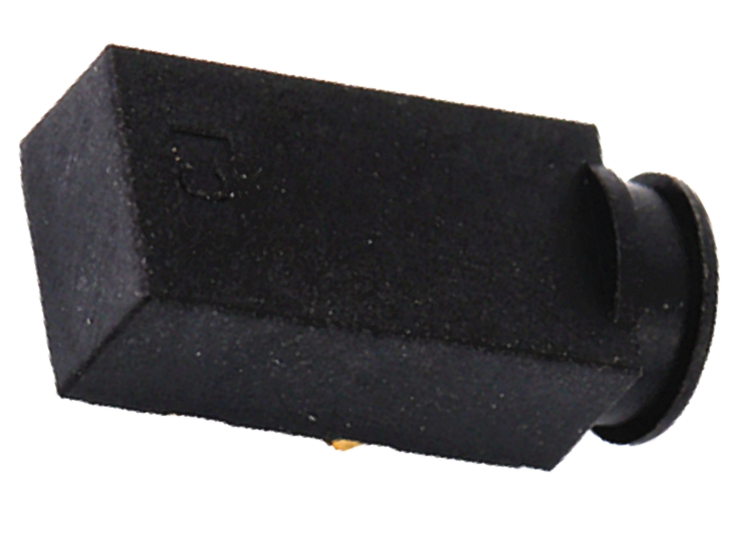

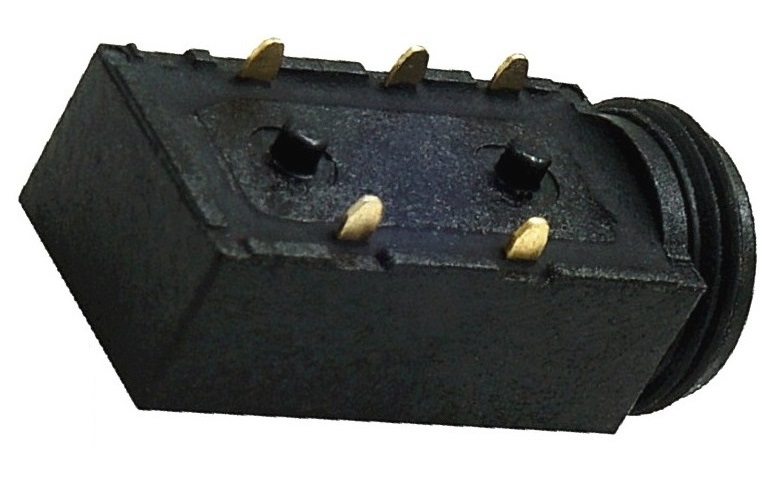

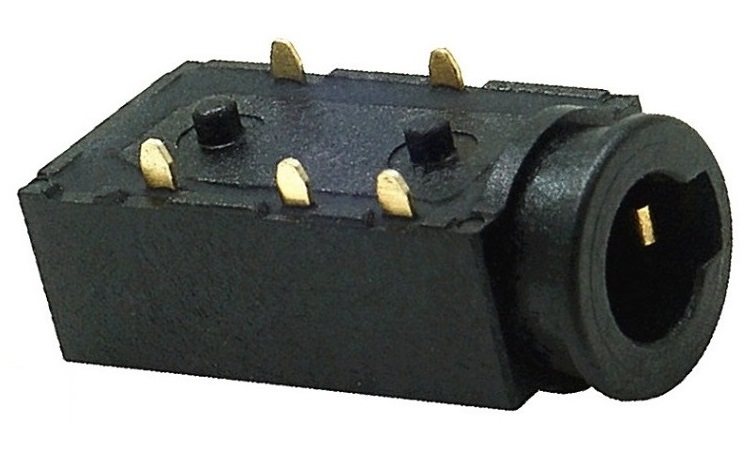

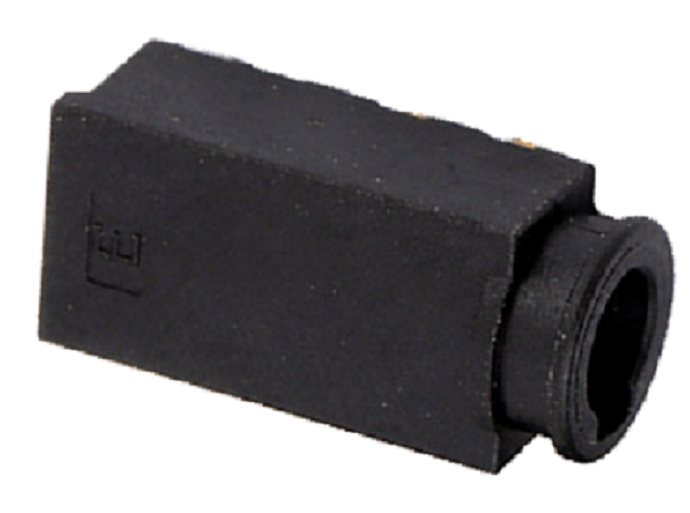

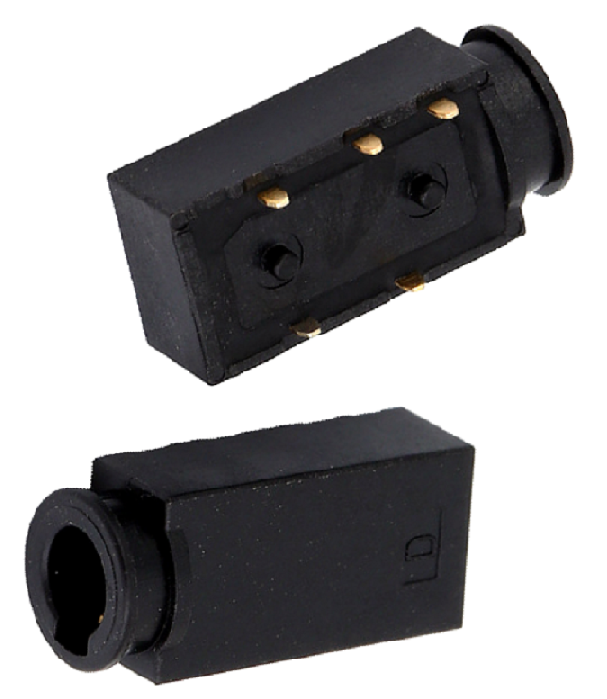

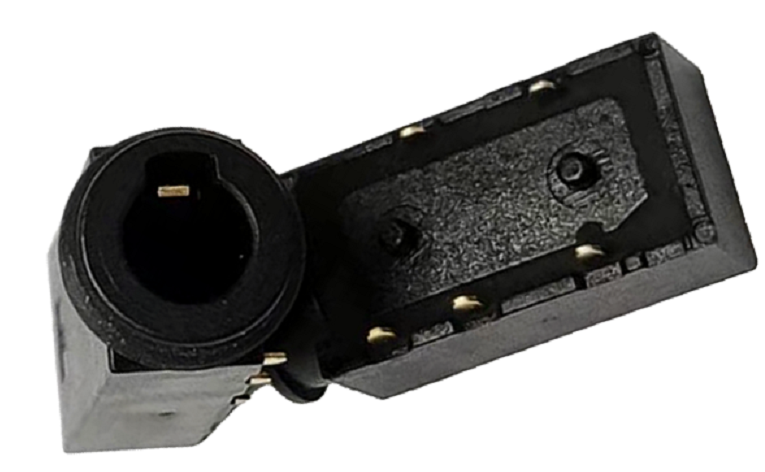

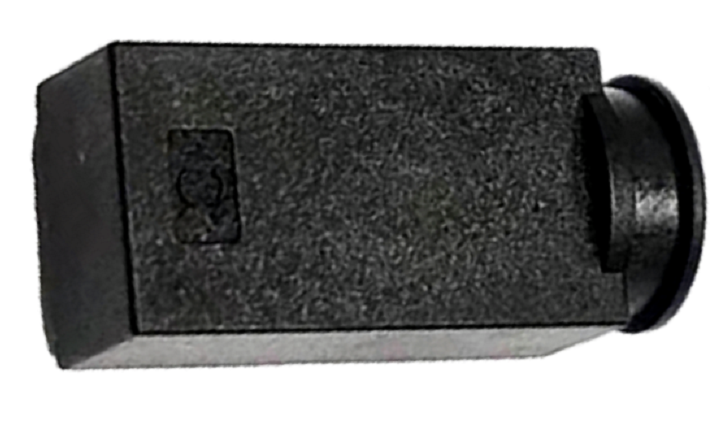

产品名称：3.5mm耳机插座
规格：
1.电气特性
1-1.额定电流：DC最大0.5A。
1-2：额定电压：DC 30V。
1-3：接触电阻：最大50mΩ
1-4.绝缘电阻：在500V DC下最小为1000M。
1-5.耐受电压：500V AC，持续1分钟。
2.机械特性
2-1.寿命测试：每分钟5000次循环，
2-2.作用力：3~30N，
脱开力：3~30N。
3.温度范围：-40°c~+80°c
4.防尘防水等级：IP67
产品符合：ROHS
品牌：科斯达开关 KSDKG
产地：中国东莞
防水3.5耳机插座是一种专门设计用于抵御水分侵入的耳机接口。以下是其主要特点及描述：
1.防水等级：通常具有IPX5或更高的防水等级，可以有效防止水溅和短暂浸水，适合户外和运动使用。
2.耐用材料：使用高强度的工程塑料或金属外壳，具备良好的抗腐蚀性和耐磨性，以保证在恶劣环境中的长期使用。

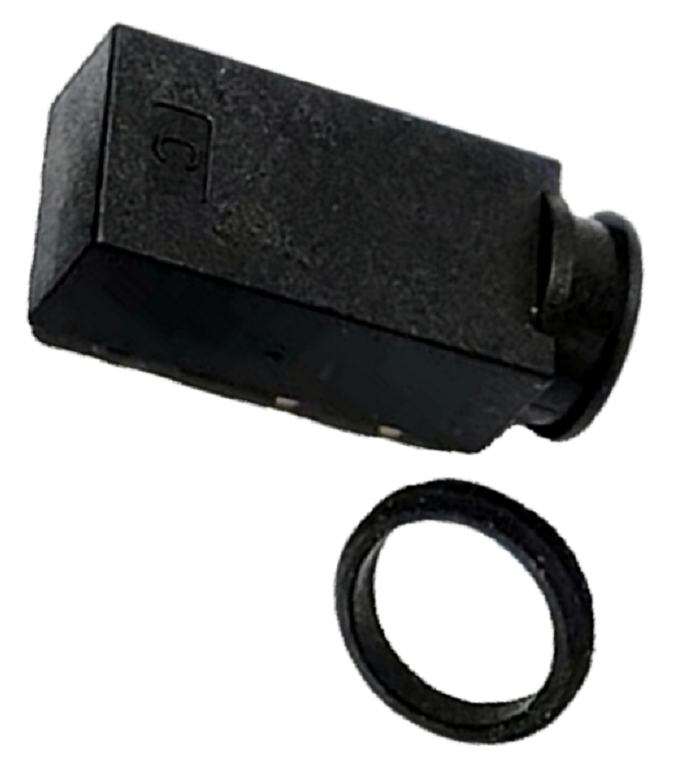

3.密封设计：内置密封圈或防水膜，确保在插拔耳机时也能有效阻隔水分进入。
4.兼容性：标准的3.5mm接口，兼容大部分耳机和音频设备，使用方便。
5.音质保证：虽然具备防水功能，但不影响音质表现，保持清晰的音频传输。
6.应用场景：适合用于运动耳机、户外设备、潜水相机、摩托车音响等多种场景。
这种耳机插座的推出，极大地方便了喜爱户外活动的人们，可以无畏水汽、雨水等环境的影响，享受音乐带来的乐趣。
防水3.5耳机插座的特点主要包括：
1.防水性能：设计有防水密封结构，能够有效阻止水分和湿气侵入，符合一定的防水等级（如IPX7或IP67）。
2.耐用性：材料通常选用耐腐蚀、耐磨损的材料，能够承受恶劣的环境条件。
3.良好的音质：尽管具备防水功能，但仍能保证良好的音质传输，减少音频信号失真。
4.兼容性：与标准3.5mm耳机兼容，可以广泛适用于各种音频设备。
5.易于安装：通常设计为简便的安装方式，便于整合到各种设备中。
6.紧固设计：一些型号可能配备紧固装置，确保插头连接稳固，避免松动带来的接触不良。
7.适用场景广泛：适合在户外运动、海洋设备、军事设备等需要防水的应用环境中使用。
这些特点使得防水3.5耳机插座成为在潮湿环境中使用音频设备的理想选择。
Product Name: 3.5mm Earphone Socket
Specifications:
1. Electrical characteristics
1-1. Rated current: DC maximum 0.5A.
1-2: Rated voltage: DC 30V.
1-3: Contact resistance: maximum 50m Ω
1-4. Insulation resistance: The minimum is 1000M at 500V DC.
1-5. Withstand voltage: 500V AC, lasting for 1 minute.
2. Mechanical characteristics
2-1. Life test: 5000 cycles per minute,
2-2. Force: 3-30N,
Detachment force: 3~30N.
3. Temperature range: -40 ° C~+80 ° C
4. Dustproof and waterproof rating: IP67
Product compliance: ROHS
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The waterproof 3.5 headphone jack is a headphone jack specifically designed to resist moisture intrusion. The following are its main characteristics and descriptions:
1. Waterproof rating: It usually has a waterproof rating of IPX5 or higher, which can effectively prevent water splashing and brief immersion, suitable for outdoor and sports use.
2. Durable materials: Use high-strength engineering plastics or metal shells with good corrosion resistance and wear resistance to ensure long-term use in harsh environments.
3. Sealed design: Equipped with a built-in sealing ring or waterproof film to effectively block moisture from entering when inserting or removing headphones.
4. Compatibility: The standard 3.5mm interface is compatible with most headphones and audio devices, making it easy to use.
5. Sound quality guarantee: Although it has waterproof function, it does not affect the sound quality performance and maintains clear audio transmission.
6. Application scenarios: Suitable for various scenarios such as sports headphones, outdoor equipment, diving cameras, motorcycle audio, etc.
The launch of this headphone jack greatly facilitates people who love outdoor activities, allowing them to enjoy the fun of music without being affected by environmental factors such as water vapor and rain.
The characteristics of the waterproof 3.5 headphone jack mainly include:
1. Waterproof performance: Designed with a waterproof sealing structure, it can effectively prevent moisture and dampness from entering, meeting a certain waterproof level (such as IPX7 or IP67).
2. Durability: Materials are usually selected to be corrosion-resistant and wear-resistant, capable of withstanding harsh environmental conditions.
3. Good sound quality: Despite having waterproof function, it can still ensure good sound transmission and reduce audio signal distortion.
4. Compatibility: Compatible with standard 3.5mm headphones, it can be widely used in various audio devices.
5. Easy to install: It is usually designed as a simple installation method that is easy to integrate into various devices.
6. Tightening design: Some models may be equipped with fastening devices to ensure a stable plug connection and avoid poor contact caused by looseness.
7. Widely applicable scenarios: Suitable for use in outdoor sports, marine equipment, military equipment and other application environments that require waterproofing.
These features make the waterproof 3.5 headphone jack an ideal choice for using audio devices in humid environments.
