KSD-LED088

KSD-LED088

  • 产品特性
  • 应用范围

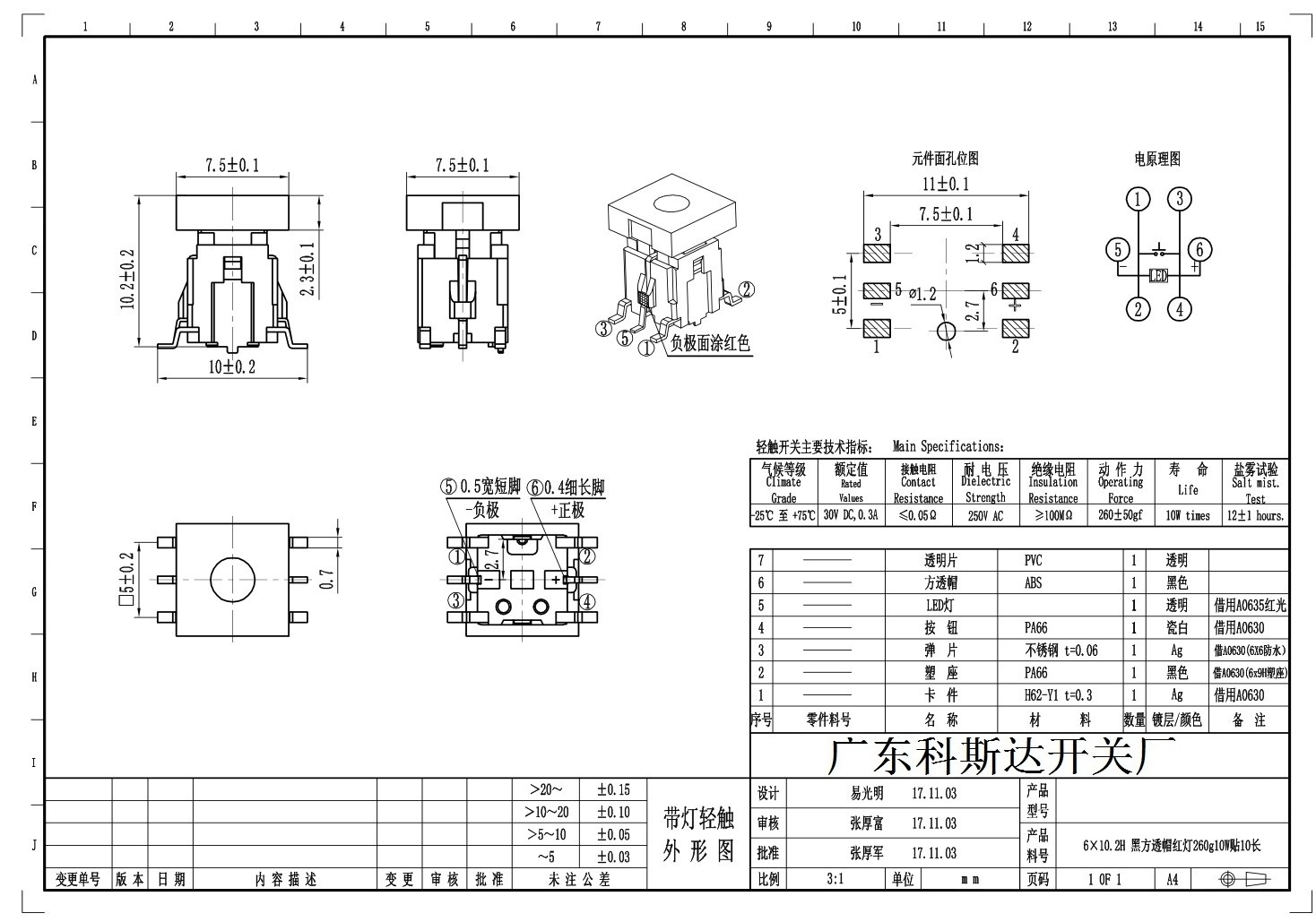

图纸下载 样品申请


带灯LED轻触开关技术指标:

1. 额定负荷: DC 12V   50mA   LED20V

2. 接触阻抗100mΩMAX

3. 绝缘阻抗: DC 250V 100mΩ

4. 耐焊温度: 250±5° 5s

5. 使用寿命: 100,000 cycles

6.使用温度: -25  to 80

7. 使用湿度85% RH

 8. 操作力: 250gf

9. LED颜色可选 :黄、白、橙、绿、红、蓝、双色灯等

10. 电路类型 触动式

应用:汽车 数码  照明 安防、工控设备、通讯产品、家用电器、智能交通等。



light LED Tact switch technical indicators:

1. Rated load: DC 12V 50mA LED: 20V

2. Contact impedance: 100mΩMAX

3. Insulation resistance: DC 250V 100mΩ

4. Soldering resistance temperature: 250±5° 5s

5. Service life: 100,000 cycles

6. Operating temperature: -25 to 80

7. Operating humidity: 85% RH

  8. Operating force: 250gf

9. LED color optional / yellow, blue, green, white, orange, red / bi-color light =

10. Circuit type: touch type

Application: Automotive, digital lighting, security, industrial control equipment, communication products, household appliances, intelligent transportation, etc.
