产品图纸（PDF）：KSD-D6-LED series 下载

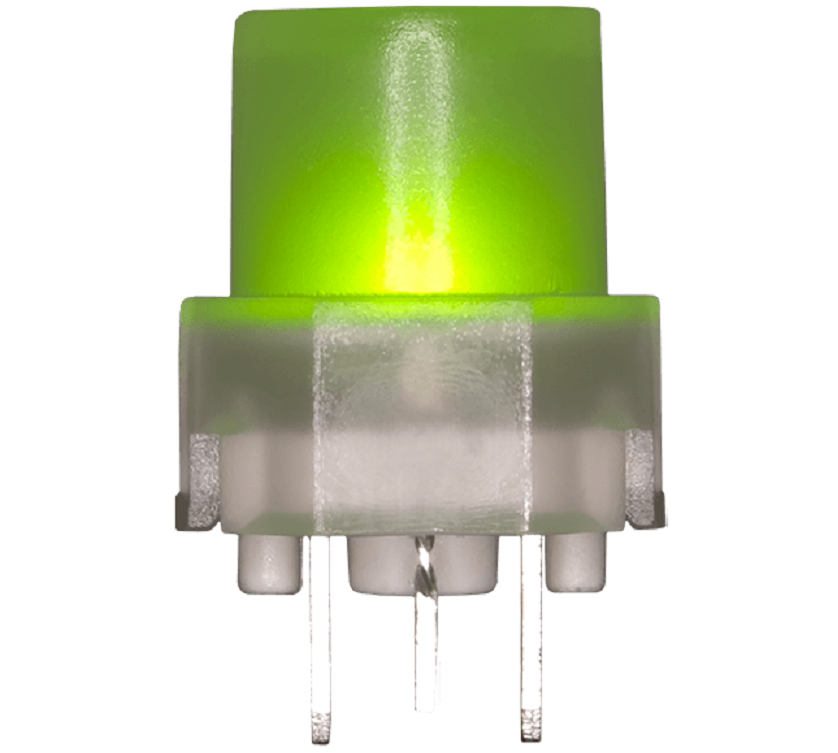

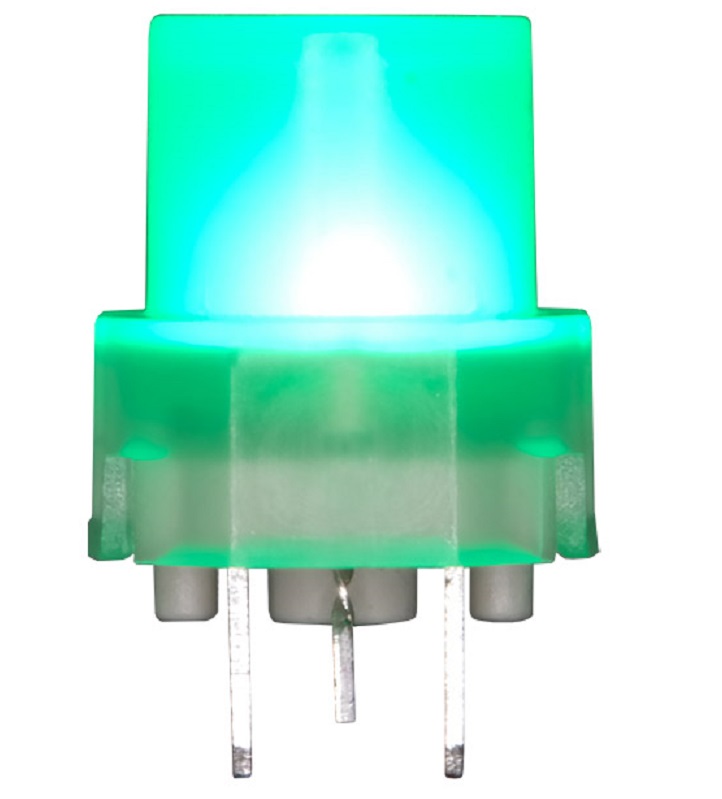

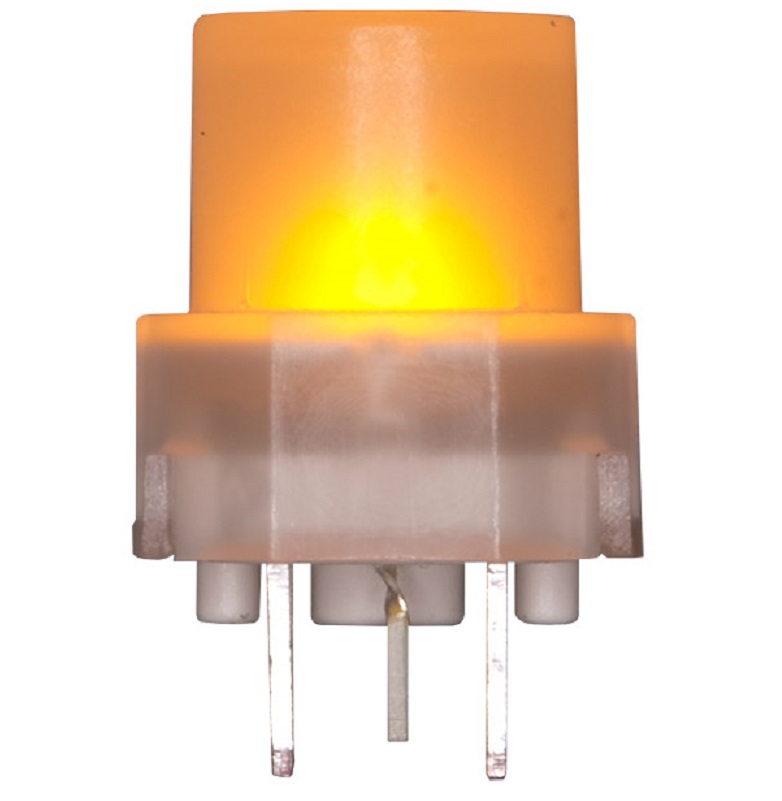

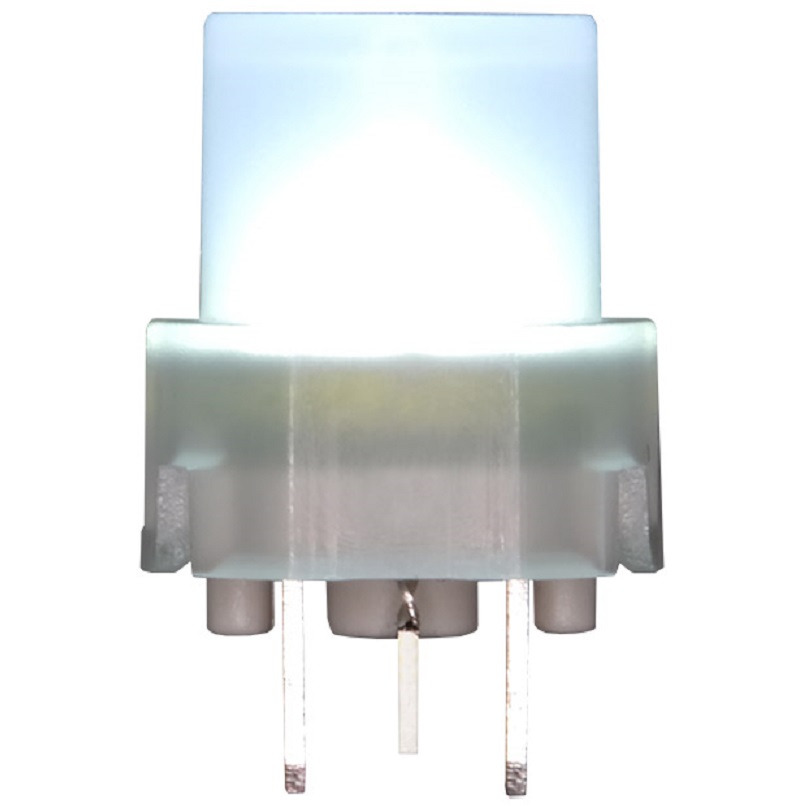

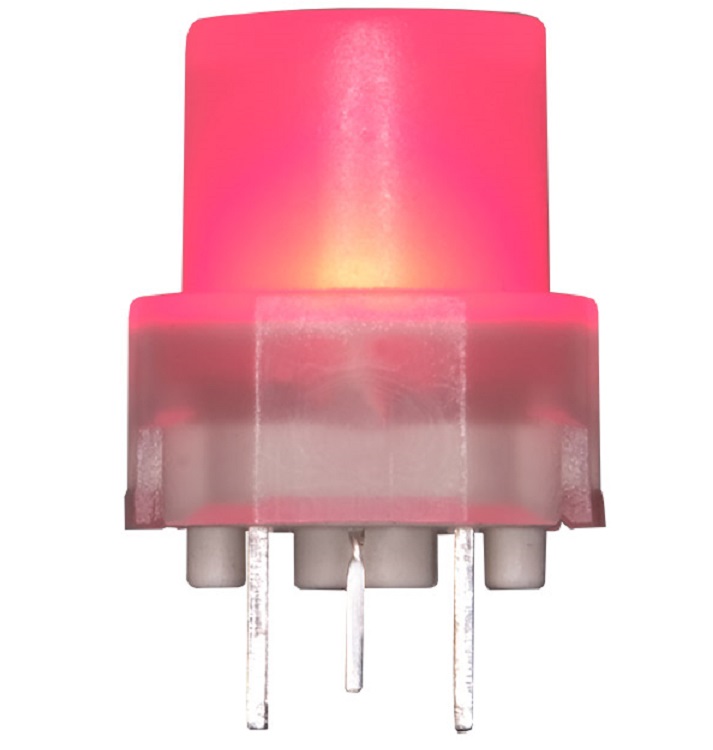

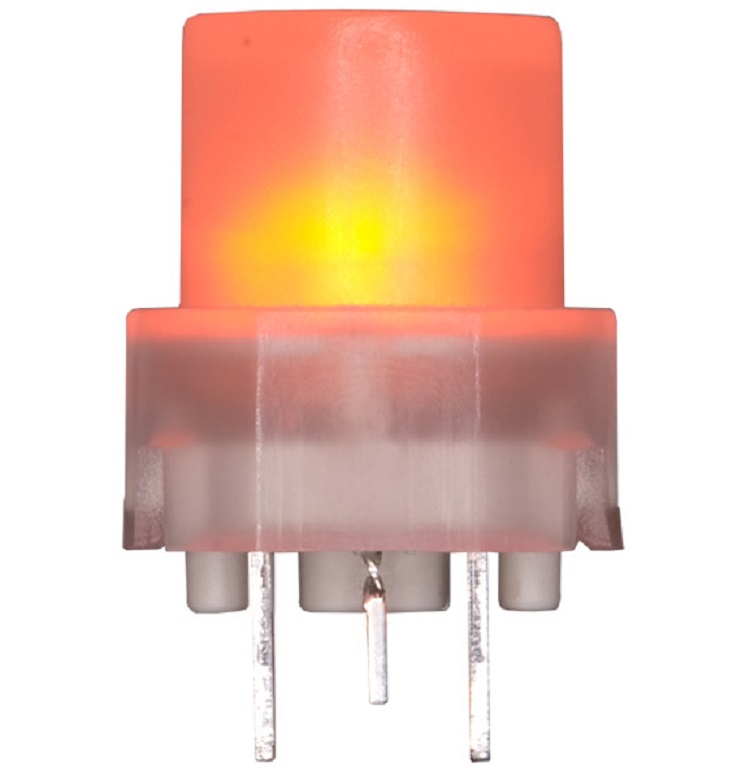

KSD-D6-LED series 技术特性电气机械环境的流程可焊性：波峰焊，与无铅焊接型材兼容手工焊接，350˚C，持续3秒包装D6交换机装在10个托盘的箱子里，每个托盘250个：每箱共2500件。D6按钮批量交付，每箱2500个。最大开关功率：3瓦0.35瓦最大开关电压：32伏直流35伏直流开关电流最大值：100 mA DC 10 mA DC使用寿命最大开关功率：F1版本：250000次操作F2版本：100000次操作F1版本：100000次操作F2版本：30000次操作接触电阻：≤100 mΩ≤200 mΩ介电强度（50赫兹/1分钟）：250伏绝缘电阻：≥108Ω弹跳时间：≤10ms切换行程：F1版：0.2 mm≤Te≤1.0 mmF2版本：0.3毫米≤Te≤1.1毫米0.4毫米≤Te≥0.8毫米操作力：F1版本：0.8N≤Fa≤1.8NF2版本：2.0N≤Fa≤3.5NF1版本：0.8N≤Fa≤1.8NF2版本：1.5N≤Fa≤2.5N密封：IP40工作温度：-20℃至85℃-20℃至60℃功能：瞬时联系方式：1联系（SPST），否按钮中心之间的距离，最小值：12,7（0.500）端子：PC引脚科斯达开关厂开发的KSD-D6-LED series 单刀单掷按键开关通常用于家用电器、电子游戏、视频应用和工业控制, 因为它能耐受高温。KSD-D6 是为了在单面印刷电路板上实现简单的XY编码而设计的, 开关符合 RoHS 标准, 有多种颜色和样式可以订购, 您可以轻松地将此开关与您的产品设计进行匹配。
KSD-D6-LED series series Technical characteristicsElectrical MachinerySolderability of environmental processes: Wave soldering, compatible with lead-free soldering profiles, manual soldering, 350 ° C, lasting for 3 secondsThe D6 switches are packaged in boxes of 10 pallets, with 250 pieces per pallet: a total of 2500 pieces per box. D6 button batch delivery, 2500 pieces per box.Maximum switching power: 3 watts, 0.35 wattsMaximum switch voltage: 32 volts DC and 35 volts DCMaximum switch current: 100 mA DC, 10 mA DCservice lifeMaximum switching power:F1 version: 250000 operationsF2 version: 100000 operationsF1 version: 100000 operationsF2 version: 30000 operationsContact resistance: ≤ 100 m Ω ≤ 200 m ΩDielectric strength (50 Hz/1 minute): 250 voltsInsulation resistance: ≥ 108 ΩBounce time: ≤ 10msSwitching stroke: F1 version: 0.2 mm ≤ Te ≤ 1.0 mmF2 version: 0.3mm ≤ Te ≤ 1.1mm 0.4mm ≤ Te ≥ 0.8mmOperating power: F1 version: 0.8N ≤ Fa ≤ 1.8NF2 version: 2.0N ≤ Fa ≤ 3.5NF1 version: 0.8N ≤ Fa ≤ 1.8NF2 version: 1.5N ≤ Fa ≤ 2.5NSealing: IP40Working temperature: -20 ℃ to 85 ℃ -20 ℃ to 60 ℃Function: InstantaneousContact information: 1 Contact (SPST), NoDistance between button centers, minimum value: 12,7 (0.500)Terminal: PC pinThe KSD-D6-LED series series single pole single throw key switch developed by Costa Switch Factory is commonly used in household appliances, electronic games, video applications, and industrial controls because it can withstand high temperatures. KSD-D6 is designed for simple XY encoding on single-sided printed circuit boards. The switch complies with RoHS standards and comes in multiple colors and styles for ordering. You can easily match this switch with your product design.Current Rating:100mA (DC)Circuit:SPST-NOMounting Type:Thru-holeSealing:UnsealedIllumination:No/NoneSwitch Function:Off-Mom OnElectrical Life Cycles:250,000Voltage Rating - AC:Voltage Rating - DC:32VActuator Type:Square, ButtonColor - Actuator/Cap:Illumination Type, Color:Termination Style:Thru-holePackaging:Bulk
