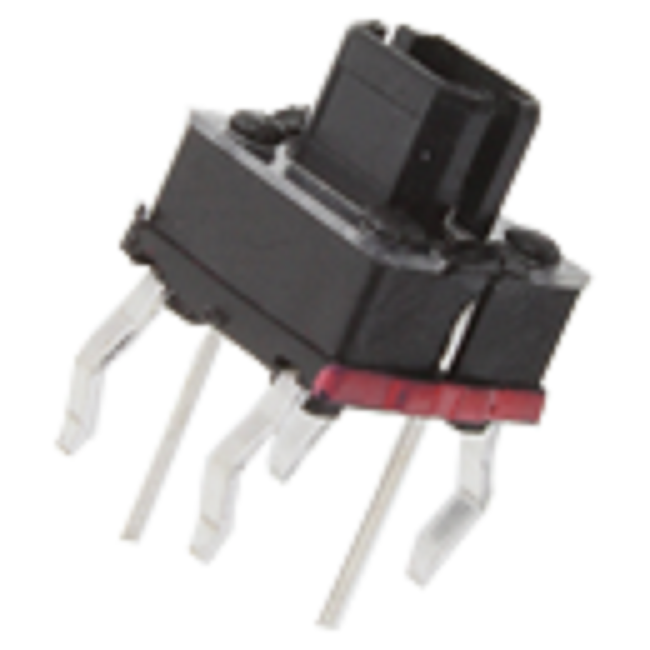

KSD-ils series 技术特性
集成式LED带灯轻触开关
行程：0.25 mm±0.1 mm
机械的使用寿命：100000次循环
电气
额定值：30VDC时最大100mA
1VDC时最小10µA
绝缘电阻：100MΩmin。
介质耐受电压：
250VAC（50-60 Hz 2mA）持续1分钟
反弹时间：开/关最大5ms。
初始接触电阻：最大100mΩ。
环境保护
工作温度：-40˚C至+85˚C
储存温度：-40˚C至+85˚C
包装500件袋装散装每个纸箱2袋*不建议在焊接过程中使用所有盖
科斯达开关厂开发的 KSD-ils series 是有不同高度的带灯轻触开关的新系列, 并在 KSD-THT 焊接引线中集成了 LED。
Technical features of KSD ILS series
Integrated LED light touch switch
Stroke: 0.25 mm ± 0.1 mm
Service life of machinery: 100000 cycles
electrical
Rated value: 100mA maximum at 30VDC
10 µ a minimum at 1vdc
Insulation resistance: 100M Ω min.
Dielectric withstand voltage:
250VAC (50-60 Hz 2mA) for 1 minute
Rebound time: on/off max. 5ms.
Initial contact resistance: maximum 100m Ω.
environmental protection
Operating temperature: -40 ˚ C to+85 ˚ C
Storage temperature: -40 ˚ C to+85 ˚ C
Pack 500 pieces in bags in bulk 2 bags per carton * it is not recommended to use all caps during welding
KSD ILS series developed by Costa switch factory is a new series of light touch switches with different heights, and LED is integrated in ksd-tht welding lead.
Current Rating:
100mA @ 30VDC
Circuit:SPST-NO
Mounting Type:Thru-hole
Sealing:Sealed - IP40
Illumination:Yes
Switch Function:Off-Mom
Electrical Life Cycles:100,000
Actuator Type:Hard
Actuator Height off PCB, from Pins:Actuator Orientation:Top Actuated
Termination Style:THT
Footprint:6.1 x 6.7 x 7.2 mm
Illumination Voltage (Nominal):5V
Illumination Type, Color:Red
Operating Force:180gf
Additional Features:
Packaging:Bulk
