KSD-USB-AF-X2P

KSD-USB-AF-X2P

  • 产品特性
  • 应用范围

图纸下载 样品申请

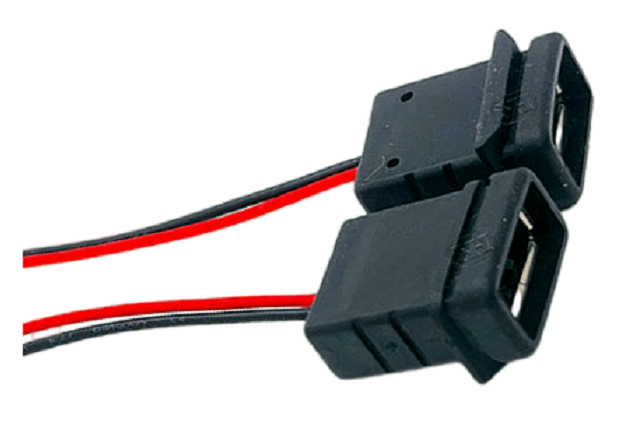

产品名称：防水USB 2.0插座

防水USB母座技术参数：
额定负荷: DC 30V 60V  1A  3A
接触电阻: ≤50mΩ
绝缘阻抗: ≥100mΩ DC250V
耐焊温度: 250℃＋5℃
使用湿度: ≤85%RH
插拔寿命:10,000 Cycles
插拔力:2-20N
品牌 科斯达  KOSOD  KSDKG

1.防水圈材料硅胶,硬度45°,防水等级IPX5可取消防水圈。
2.引线规格:1007#24AWG,红色为正极,黑色为负极。
3.产品包胶绝缘层为黑色。
4.接触阻抗小于30毫欧,绝缘阻抗大于1M欧。
5.插入力5-20N,拔出力5-20N,接触性能保证拔插10000次。
6.符合《电器电子产品有害物质限制使用管理办法》要求。

1.线长:100mm
2.线号:100724号线
开孔尺寸
3.颜色:红,蓝,绿,黑
4.外壳材质:PVC
5.端子:可定制


防水USB 2.0插座通常用于需要防止水和灰尘侵入的环境，如户外设备、海洋设备、工业应用等。这类插座通常具备以下特点：
1.IP等级：防水插座通常有IP67或更高的防护等级，表示其能够抵抗短时间的浸入水中和灰尘的侵入。

2.材料：使用耐腐蚀、耐紫外线的材质，例如塑料或金属壳体，确保长期暴露在恶劣环境中仍能正常工作。

3.密封设计：包括密封圈和防护盖，可以有效防止污物和水分进入插座内部。

4.兼容性：支持标准USB 2.0接口，能够与各种设备兼容，传输速度通常为480 Mbps。

5.如果你需要购买防水USB 2.0插座，可以在电子元件商店、工业设备供应商或者在线零售平台上查找。使用时，请确保遵循生产厂家的安装与使用指南，以确保其性能和防水效果。


防水USB 2.0插座是一种专为户外或潮湿环境设计的连接器，具有防水、防尘等特性，能够有效保护内部电路免受水分和污垢的侵害。以下是其主要特点和功能：

主要特点：
1.防水等级：通常达到IP65或更高，能够有效防止水和灰尘进入。

2.耐用材料：采用高质量的塑料或金属材料，耐候性强，适应各种恶劣环境。

3.兼容性：支持USB 2.0标准，具备较好的数据传输速度，满足日常使用需求。

4.安装便捷：设计简单，易于在各种设备或面板上安装，不需要复杂的工具。

5.安全性：具有过载保护和短路保护功能，确保设备连接安全可靠。

6.多用途：适用于汽车、船舶、野外设备、户外露营等多种场景。

使用场合：
户外设备：如露营灯、便携式电源等。
汽车和船舶：为车载或船载电子设备提供充电和数据传输接口。
工业设备：用于需要防水的自动化设备或传感器。

总结：
防水USB 2.0插座是一个结合了便捷性和耐久性的连接器选项，能够在潮湿或恶劣环境中安全可靠地使用，非常适合需要防水解决方案的应用场合。


防水USB 2.0插座的特点包括：
1.防水设计：插座外壳采用密封材料，能够有效阻挡水分和灰尘，符合一定的防水等级（如IP65或IP67）。

2.耐用性：通常使用耐高温、抗腐蚀的材料，增强抗老化和抗磨损能力，适合恶劣环境下使用。

3.易于安装：通常设计为模块化，可以方便地固定在各种设备或墙面上。

4.兼容性：支持USB 2.0标准，提供可靠的数据传输速度，向下兼容其他USB类型的设备。

5.多功能性：有些防水USB插座可能提供额外的功能，比如充电功能或者集成LED指示灯。

6.安全性：具备短路保护、过载保护等安全措施，确保设备在使用过程中的安全。

7.应用广泛：适用于户外设备、工业自动化、交通工具、船舶等需要防水防尘的场所。

8.外观设计：有些产品经过特别设计，外观美观，能够融入不同的环境。


Product Name: Waterproof USB 2.0 Socket
Waterproof USB female socket technical parameters:
Rated load: DC 30V 60V 1A 3A
Contact resistance: ≤ 50m Ω
Insulation impedance: ≥ 100m Ω DC250V
Welding resistance temperature: 250 ℃+5 ℃
Usage humidity: ≤ 85% RH
Plug and unplug lifespan: 10000 cycles
Insertion and extraction force: 2-20N
Brand KOSOD KSDKG

1. The waterproof ring material is silicone, with a hardness of 45 ° and a waterproof rating of IPX5. The waterproof ring can be removed.
2. Lead specifications: 1007 # 24AWG, red for positive pole and black for negative pole.
3. The insulation layer of the product packaging is black.
4. Contact impedance is less than 30 milliohms, and insulation impedance is greater than 1M ohms.
5. The insertion force is 5-20N, the extraction force is 5-20N, and the contact performance ensures 10000 insertions and removals.
6. Comply with the requirements of the "Management Measures for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products".

1. Line length: 100mm
2. Line number: Line 100724
Hole size
3. Colors: Red, Blue, Green, Black
4. Shell material: PVC
5. Terminals: Customizable


Waterproof USB 2.0 sockets are typically used in environments that require protection against water and dust intrusion, such as outdoor equipment, marine equipment, industrial applications, etc. This type of socket usually has the following characteristics:
1. IP rating: Waterproof sockets usually have a protection level of IP67 or higher, indicating that they can resist short-term immersion in water and dust intrusion.

2. Material: Use corrosion-resistant and UV resistant materials, such as plastic or metal shells, to ensure that they can function properly even after long-term exposure to harsh environments.

3. Sealing design: including sealing rings and protective covers, which can effectively prevent dirt and moisture from entering the interior of the socket.

4. Compatibility: Supports standard USB 2.0 interface, compatible with various devices, with a typical transfer speed of 480 Mbps.

If you need to purchase a waterproof USB 2.0 socket, you can search for it at electronic component stores, industrial equipment suppliers, or online retail platforms. When using, please ensure to follow the manufacturer's installation and usage guidelines to ensure its performance and waterproof effect.


Waterproof USB 2.0 socket is a connector designed specifically for outdoor or humid environments, with waterproof, dustproof and other characteristics, which can effectively protect internal circuits from moisture and dirt. The following are its main features and functions:

Main features:
1. Waterproof rating: Typically reaching IP65 or higher, it can effectively prevent water and dust from entering.

2. Durable materials: Made of high-quality plastic or metal materials, with strong weather resistance and adaptability to various harsh environments.

3. Compatibility: Supports USB 2.0 standard, has good data transfer speed, and meets daily usage needs.

4. Easy installation: The design is simple and easy to install on various devices or panels, without the need for complex tools.

5. Safety: It has overload protection and short circuit protection functions to ensure the safe and reliable connection of the equipment.

6. Multipurpose: Suitable for various scenarios such as cars, ships, field equipment, outdoor camping, etc.

Usage scenario:
Outdoor equipment: such as camping lights, portable power supplies, etc.
Automobiles and ships: Provide charging and data transmission interfaces for onboard or ship mounted electronic devices.
Industrial equipment: used for automation equipment or sensors that require waterproofing.

Summary:
The waterproof USB 2.0 socket is a connector option that combines convenience and durability, allowing for safe and reliable use in humid or harsh environments, making it ideal for applications that require waterproof solutions.


The features of the waterproof USB 2.0 socket include:
1. Waterproof design: The socket housing adopts sealing materials, which can effectively block moisture and dust, and meet a certain waterproof level (such as IP65 or IP67).

2. Durability: High temperature resistant and corrosion resistant materials are usually used to enhance the anti-aging and wear resistance, which is suitable for use in harsh environments.

3. Easy to install: It is usually designed as modular and can be easily fixed on various devices or walls.

4. Compatibility: Supports USB 2.0 standard, provides reliable data transfer speed, and is backward compatible with other USB types of devices.

5. Multifunctionality: Some waterproof USB sockets may provide additional features, such as charging function or integrated LED indicator lights.

6. Safety: Equipped with short-circuit protection, overload protection and other safety measures to ensure the safety of the equipment during use.

7. Widely applicable: Suitable for outdoor equipment, industrial automation, transportation vehicles, ships and other places that require waterproofing and dust prevention.

8. Appearance design: Some products have been specially designed to have a beautiful appearance and can blend into different environments.
