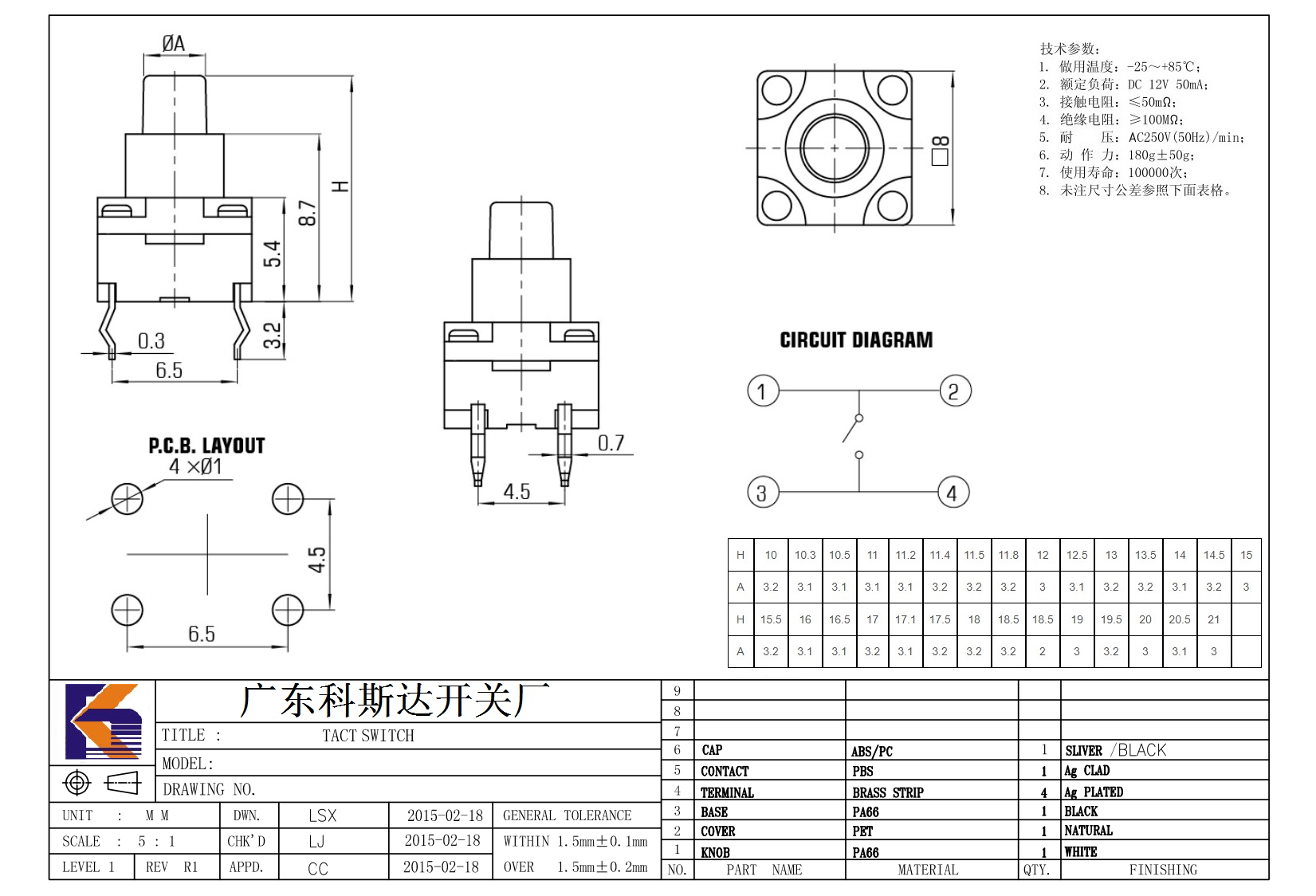

TC-FS-018

轻触开关技术指标：

1. 额定负荷: DC 12V   50mA

2. 接触阻抗: ≤100mΩMAX

3. 绝缘阻抗: DC 250V ≥100mΩ

4. 耐焊温度: 250±5° 5s

5. 使用寿命: 100,000 cycles

6.使用温度: -25 ℃ to 80 ℃

7. 使用湿度: ≤85% RH

8. 操作力: 250gf

9. 总高度4.3-10mm

10. 电路类型 触动式

11.防水等级 IP68

12.品牌: 科斯达

Tact switch  technical indicators:

1. Rated load: DC 12V 50mA

2. Contact impedance: ≤100mΩMAX

3. Insulation resistance: DC 250V ≥100mΩ

4. Soldering resistance temperature: 250±5° 5s

5. Service life: 100,000 cycles

6. Operating temperature: -25 ℃ to 80 ℃

7. Operating humidity: ≤85% RH

 8. Operating force: 250gf

9. Total height 4.3-10mm

10. Circuit type: touch type

11. Waterproof grade IP68

12.Brand: KSDKG  KOSOD

Application: Automotive, digital lighting, security, industrial control equipment, communication products, household appliances, intelligent transportation, etc.
