产品图纸（PDF）：KSD-NanoT 100B series 下载

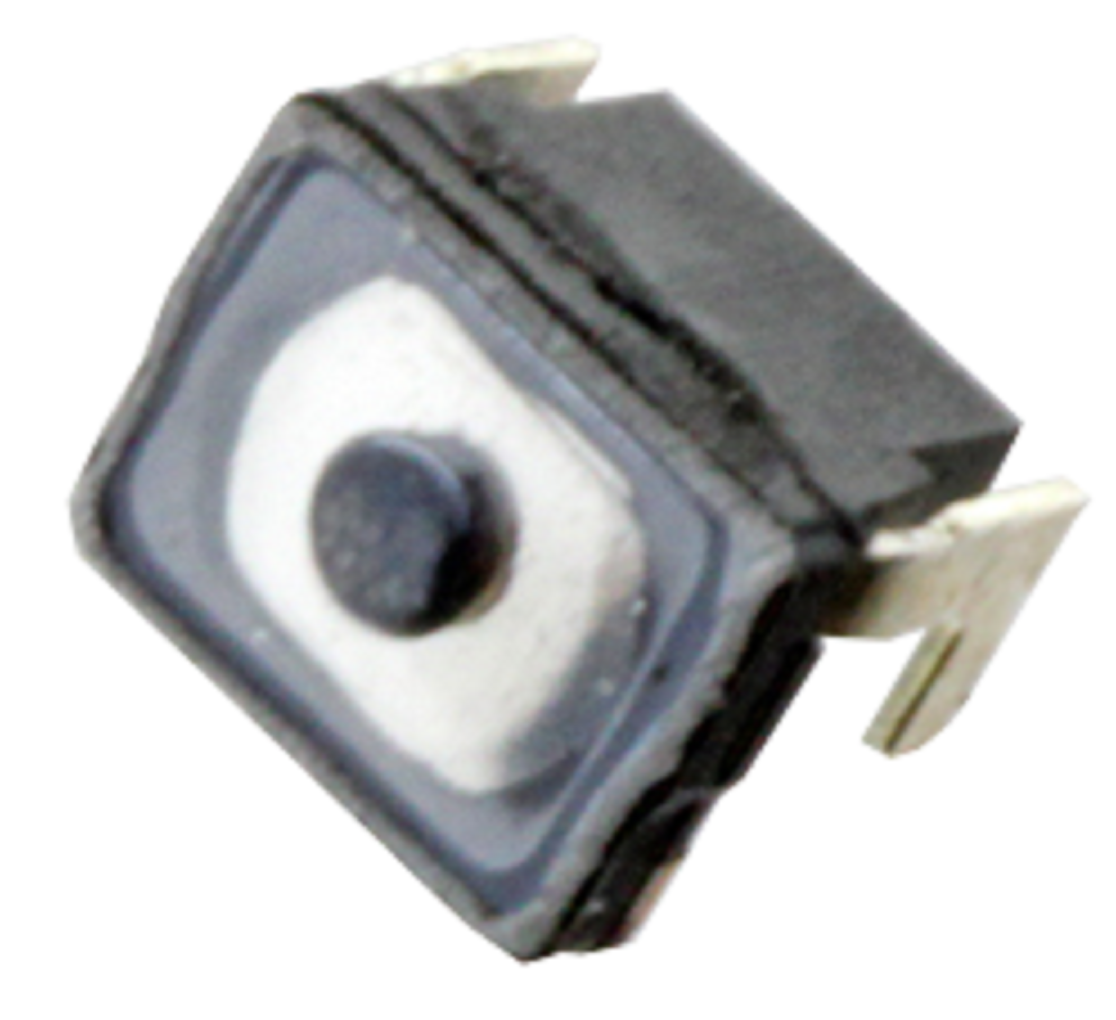

KSD-NanoT 100 技术特性KSD-NANOT 系列贴片超薄 SMT 轻触开关行程：0.1毫米+/-0.05毫米工作温度：-40～+85℃工作温度：-40～+85℃额定值：15V直流/20mA绝缘电阻：最小100 MΩ。耐受电压：250V交流电（50~60Hz 2mA）持续1分钟。BOUNCE：开启/关闭最大10毫秒。接触电阻：最大500mΩ。包装侧面驱动的7500件卷轴顶部驱动的8000件卷轴卷筒尺寸符合EIA RS481或IEC 2863。外径330毫米±2毫米。科斯达开关厂的KSD-NanoT 100 超薄超微型轻触开关是顶部和侧面操作型开关中最小的。科斯达开关厂最新的产品提供完整的 SMT 或 PIP, 以增强抗剪强度。
KSD-NanoT 100 Technical characteristicsKSD-NANOT series ultra-thin SMT tactile switch with surface mountTravel: 0.1 millimeters+/-0.05 millimetersWorking temperature: -40 to+85 ℃Working temperature: -40 to+85 ℃Rated value: 15V DC/20mAInsulation resistance: minimum 100 M Ω.Withstand voltage: 250V AC (50~60Hz 2mA) for 1 minute.BOUNCE: Maximum 10 milliseconds on/off.Contact resistance: maximum 500m Ω.packing7500 side driven scrolls8000 scrolls with top driveThe drum size complies with EIA RS481 or IEC 2863. Outer diameter 330 millimeters ± 2 millimeters.The KSD NanoT 100 ultra-thin and ultra micro touch switch from Costa Switch Factory is the smallest of the top and side operated switches. The latest products from Costa Switch Factory offer complete SMT or PIP to enhance shear strength.Current Rating:20mA @ 15VDCCircuit:SPST-NOMounting Type:Surface MountSealing:Sealed - IP67Illumination:No/NoneSwitch Function:Off-MomElectrical Life Cycles:200,000Actuator Type:HardActuator Height off PCB, from Pins:Actuator Orientation:Top ActuatedTermination Style:SMTFootprint:2.1 x 1.65 x 0.55 mmIllumination Voltage (Nominal):Illumination Type, Color:Operating Force:100 gfAdditional Features:Packaging:Tape & Reel
