KSD-KSR series 技术特性

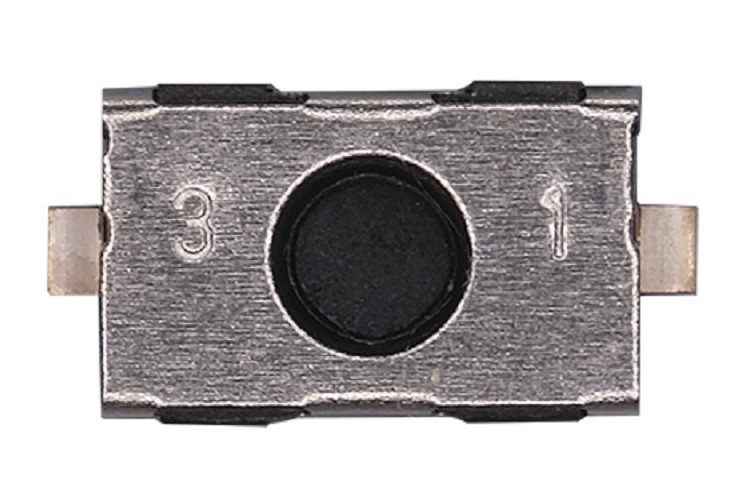

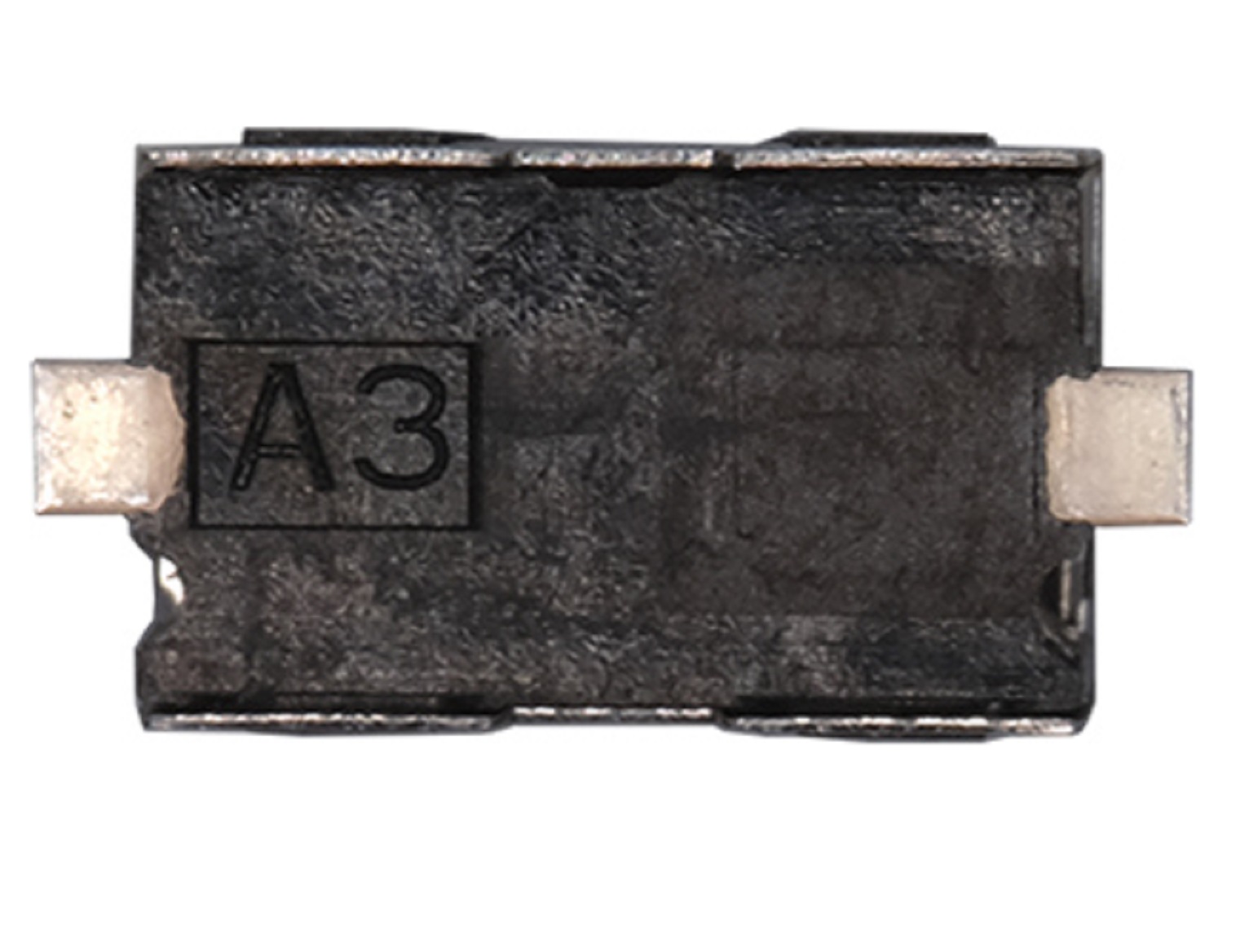

KSD-KSR 系列超小型 SMT 轻触开关常开电路/轻触开关常闭电路
电气金
最大功率：0.2瓦
最大电压：32vdc
最小电压：20 mV
最大直流电流：10mA
最小直流电流：1mA
接触电阻：100 mΩ
绝缘电阻（100v）：109Ω
弹跳时间：1毫秒
环境黄金
工作温度：-40˚C至125˚C
储存温度：-55˚C至125˚C
流程
焊接：与无铅回流焊接工艺兼容
规范
功能：瞬时动作
联系方式：不详。
端子：用于SMT的鸥翼型
机械
操作力操作寿命
类型牛顿（操作）行程（mm）
KSR2D3MG LFG 1.5±0.5N 100000 0.3±0.15
KSR2M3G LFG 0.8±0.4N 100000 0.19±0.11
包装
开关以连续磁带形式交付，每卷2500个。
有关特定和自定义开关的信息，请咨询客户服务中心。
科斯达开关厂 的 KSD-KSR series 系列微型轻触开关有 4 个操作力可选, 并且为 N.O. （常开）和 N.C.（常闭）开关。通过可用的检测类型, 科斯达开关厂的 KSD-KSR 非常适用于在发生事故时, 需要紧急停止功能的工业、医疗和汽车应用。
KSD-KSR series Technical characteristics
KSD-KSR series ultra small SMT touch switch normally open circuit/touch switch normally closed circuit
Electrical Gold
Maximum power: 0.2 watts
Maximum voltage: 32VDC
Minimum voltage: 20 mV
Maximum DC current: 10mA
Minimum DC current: 1mA
Contact resistance: 100 m Ω
Insulation resistance (100v): 109 Ω
Bounce time: 1 millisecond
Environmental Gold
Working temperature: -40 ° C to 125 ° C
Storage temperature: -55 ° C to 125 ° C
technological process
Welding: Compatible with lead-free reflow soldering process
standard
Function: Instantaneous action
Contact information: unknown.
Terminal: gull wing shaped for SMT
Mechanics
Operating force and lifespan
Type Newton (operation) stroke (mm)
KSR2D3MG LFG 1.5±0.5N 100000 0.3±0.15
KSR2M3G LFG 0.8±0.4N 100000 0.19±0.11
packing
The switch is delivered in the form of continuous magnetic tape, with 2500 pieces per roll.
For information on specific and custom switches, please consult the customer service center.
The KSD-KSR series micro tactile switches from Costa Switch Factory have 4 operating force options, and are N.O. (normally open) and N.C. (normally closed) switches. Through the available detection types, KSD-KSR from Costa Switch Factory is highly suitable for industrial, medical, and automotive applications that require emergency stop functionality in the event of an accident.
Current Rating:50mA @ 32VDC
Circuit:SPST-NO
Mounting Type:Surface Mount
Sealing:Sealed - IP40
Illumination:No/None
Switch Function:Off-Mom
Electrical Life Cycles:100,000
Actuator Type:Standard
Actuator Height off PCB, from Pins:2.50mm
Actuator Orientation:Top Actuated
Termination Style:Gull Wing
Footprint:6.00mm x 3.80mm
Illumination Voltage (Nominal):
Illumination Type, Color:
Operating Force:180gf
Additional Features:
Packaging:Tape & Reel
