产品图纸（PDF）：KSD-KSC-XA series 下载

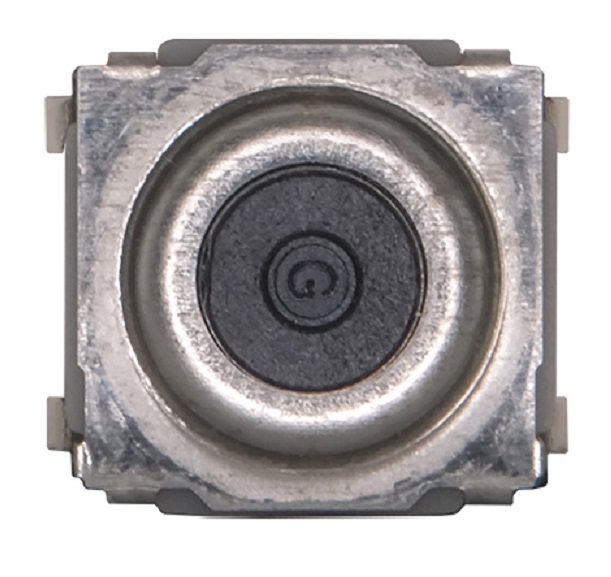

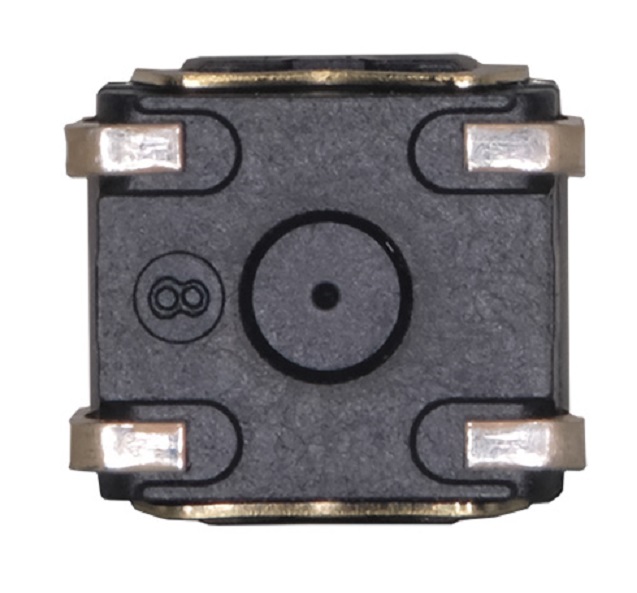

KSD-KSC-XA series 技术特性硅胶防水轻触开关系列延展外壳, 静音功率：最小0.002VA/最大1VA。电压：最小2V，最大24V。电流：最小1mA/最大42mA。工作温度：-40°C/+95°C接触电阻：0.1欧姆 科斯达开关厂的 KSD-KSC-XA series 静音硅胶轻触开关是我们新的触觉和声音开关解决方案, 用于在汽车中提供更柔和的反馈。仍旧采用紧凑型, 用于 SMT 的 KSD-KSC 的尺寸 (6.2 x 6.2 x 4.9 mm), 带有塑胶触头和延展外壳。
KSD-KSC-XA series Technical characteristicsSilicone waterproof touch switch series extension shell, silentPower: minimum 0.002VA/maximum 1VA.Voltage: minimum 2V, maximum 24V.Current: minimum 1mA/maximum 42mA.Working temperature: -40 ° C/+95 ° CContact resistance: 0.1 ohmsThe KSD-KSC-XA series silent silicone tactile switch from Costa Switch Factory is our new tactile and sound switch solution designed to provide softer feedback in automobiles. Still using a compact KSC size for SMT (6.2 x 6.2 x 4.9 mm), with plastic contacts and an extended housing.Current Rating:1VACircuit:SPST-NOMounting Type:Surface MountSealing:Sealed - IP67Illumination:No/NoneSwitch Function:Off-MomElectrical Life Cycles:1,000,000Actuator Type:HardActuator Height off PCB, from Pins:4.9 mmActuator Orientation:Top ActuatedTermination Style:J leadsFootprint:6.2 mm x 6.2 mmIllumination Voltage (Nominal):Illumination Type, Color:Operating Force:3.5NAdditional Features:Packaging:Tape & Reel
