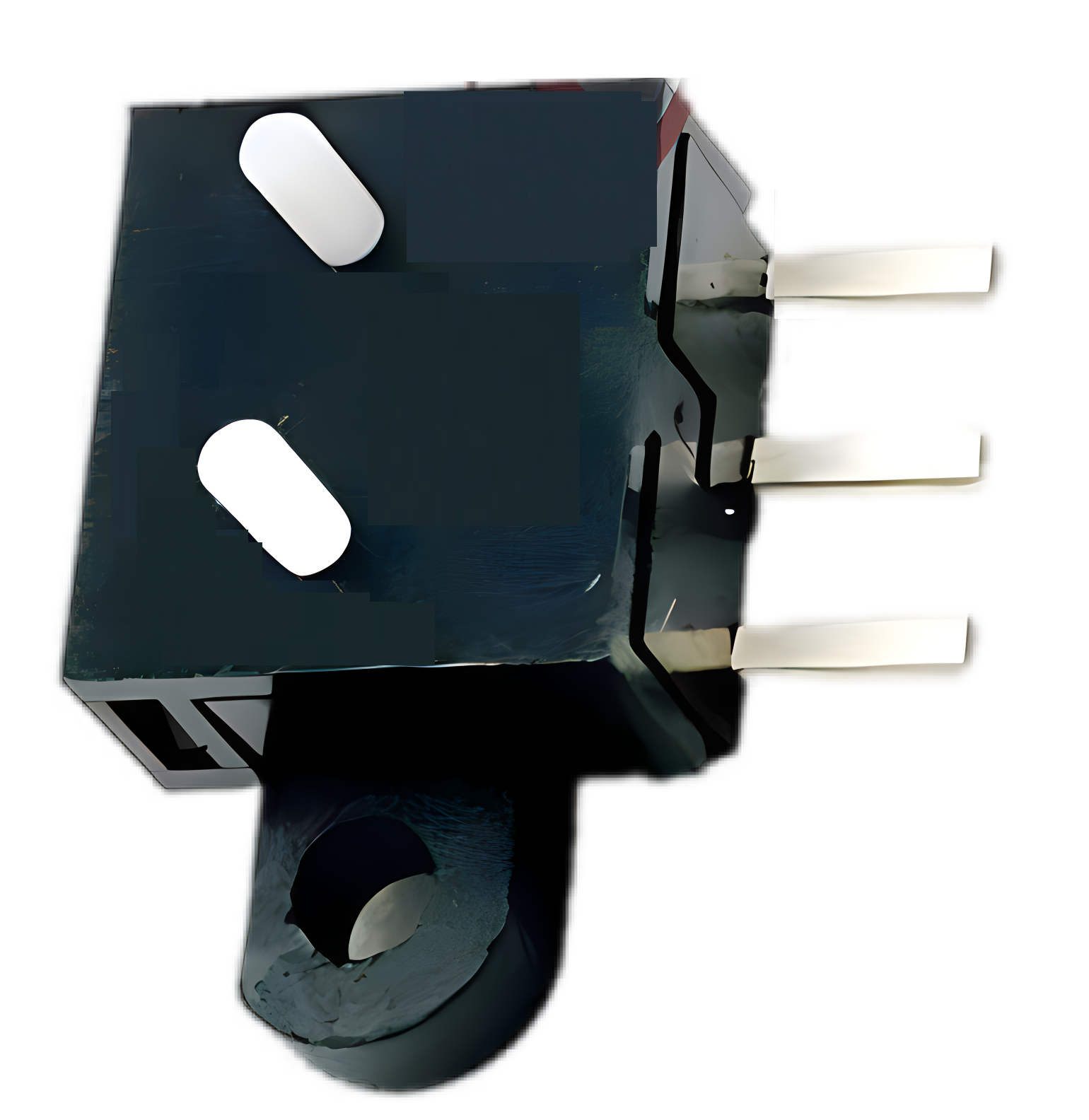

KSD-SW-2AD-74-20 series 技术特性
检测开关标准规范
额定电流1mA 5V DC（电阻负载）
接触电阻最大1欧姆
绝缘电阻50兆欧
耐受100V AC电压1分钟
使用寿命20000次循环
品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA
产品应用：医疗电器、航模、无人机、灯具照明、通讯、控制手柄、速控设备、新能源、航模设备、仪表仪器、小家电、汽车等领域
备注
1.产品的外观和规格可能会在不事先通知的情况下进行修改，以提高其性能。
2.此图表仅显示轮廓规格。使用产品时，请获得正式规格供应。
3.请参阅附录[开关使用注意事项]
4.对于高安全应用，请确认保护和冗余电路。
5.此探测器开关不是可清洗型。
6.在手工焊接时，应考虑将烙铁涂在端子的尖端，以便终端不会受到异常压力。
7.焊接后1分钟内请勿施加压力。
8.由于端子的硫化和氧化可能会降低焊接质量，请尽快使用在交付后最多6个月内使用，在打开包装后条件下使用，在1
在你再次打开包装一周后。
9.请通过模拟实际环境来确认实际操作的性能可靠性。
Standard specification for detection switch
Rated current 1mA 5V DC (resistive load)
Maximum contact resistance of 1 ohm
Insulation resistance 50 megaohms
Withstand 100V AC voltage for 1 minute
Service life 20000 cycles
Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDA
Product applications: medical appliances, model aircraft, drones, lighting fixtures, communication, control handles, speed control equipment, new energy, model aircraft equipment, instrumentation, small appliances, automobiles and other fields
remarks
The appearance and specifications of the product may be modified without prior notice to improve its performance.
2. This chart only displays contour specifications. Please obtain official specifications when using the product.
3. Please refer to the appendix [Precautions for Switch Use]
For high security applications, please confirm the protection and redundant circuits.
5. This detector switch is not washable.
When manually soldering, it should be considered to apply a soldering iron to the tip of the terminal so that the terminal will not be subjected to abnormal pressure.
7. Do not apply pressure within 1 minute after welding.
8. Due to the sulfurization and oxidation of the terminals, the welding quality may be reduced. Please use it as soon as possible within a maximum of 6 months after delivery, and use it under open packaging conditions
After you open the packaging again for a week.
9. Please confirm the performance reliability of actual operation by simulating the actual environment.
