KSD-SDS series 技术特性
检测开关规范
触点额定值：100mA@12 VDC
*对于ULC版本，最小电流为10µA@1.8 VDC
机械和电气寿命：50000次循环
接触电阻：初始最大100 mΩ
绝缘电阻：100 VDC时最小10 MΩ
工作温度：-40ºC至+85ºC
可溶解性：红外兼容，不可清洗。最高260ºC。
包装：散装或胶带卷（每卷3000）
材料
底座：玻璃填充LCP（UL 94V-0）
执行器：玻璃填充LCP（UL94V-0）
盖子：镀镍银
活动触点：磷青铜，镀层见表
端子：磷青铜，镀层见表
注：以上列出的规格和材料适用于具有标准选项的开关。有关特定和自定义开关的信息，请咨询客户服务中心。

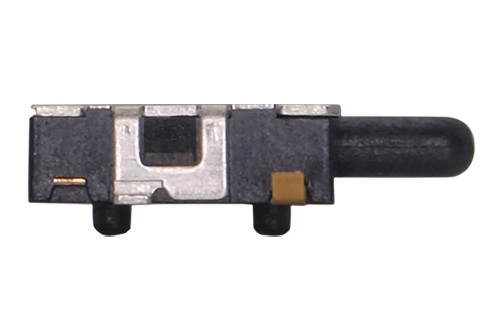

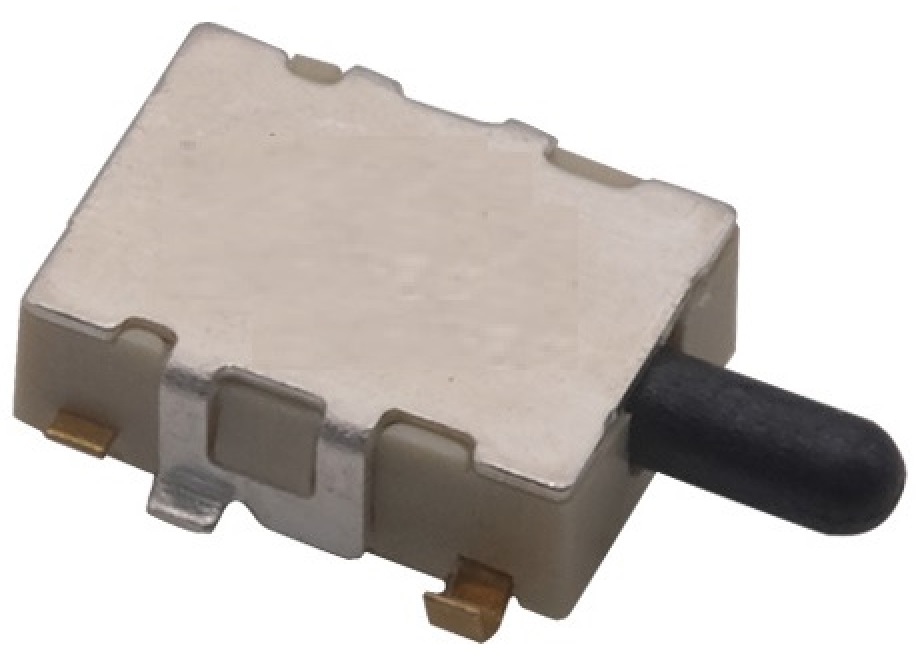

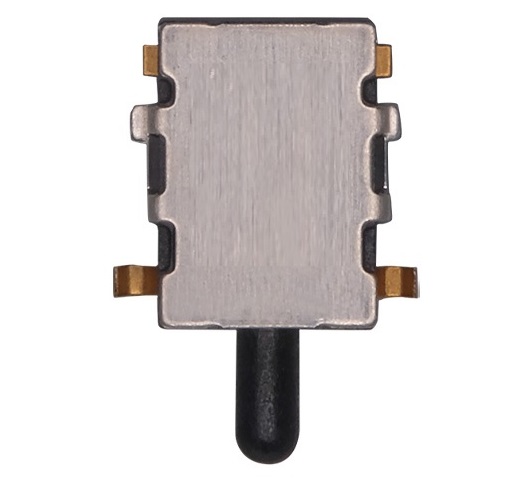

科斯达开关厂的KSD-SDS series 系列是侧向操作检测开关, 具有低操作力（最大 75g）和超薄封装，检测开关与 PCB 的距离仅为 2mm。复位检测开关长寿命的 KSD-SDS 系列非常适用于消费类电子产品、医疗设备和 ATCA 或 MicroTCA 设备, 开关也具有 2mm 超行程, 使其成为检测器应用的理想选择。
KSD-SDS series Technical characteristics
Specification for detection switch
Contact rating: 100mA@12 VDC
*For the ULC version, the minimum current is 10 µ A @ 1.8 VDC
Mechanical and electrical lifespan: 50000 cycles
Contact resistance: initial maximum 100 m Ω
Insulation resistance: minimum 10 M Ω at 100 VDC
Working temperature: -40 º C to+85 º C
Solubility: Infrared compatible, non washable. The highest temperature is 260 º C.
Packaging: Bulk or Tape Rolls (3000 per roll)
Material Science
Base: Glass filled LCP (UL 94V-0)
Executor: Glass filled LCP (UL94V-0)
Lid: Nickel plated silver
Active contact: phosphor bronze, coating as shown in the table
Terminal: phosphor bronze, coating as shown in the table
Note: The specifications and materials listed above are applicable to switches with standard options. For information on specific and custom switches, please consult the customer service center.
The KSD-SDS series from Costa Switch Factory is a lateral operation detection switch with low operating force (up to 75g) and ultra-thin packaging. The distance between the detection switch and the PCB is only 2mm. The KSD-SDS series with a long lifespan reset detection switch is highly suitable for consumer electronics, medical equipment, and ATCA or MicroTCA devices. The switch also has a 2mm overtravel, making it an ideal choice for detector applications.
Current Rating:
100mA (DC)
Circuit:SPST-NO
Mounting Type:Surface Mount
Sealing:Unsealed
Illumination:No/None
Switch Function:Off-Mom
Electrical Life Cycles:50,000
Voltage Rating - AC:
Voltage Rating - DC:12V
Actuator Type:Overtravel Plunger
Termination Style:SMT, Right angle
Operating Force, Torque:75gf
Release Force:
Pretravel:
Overtravel:0.079" (2.0mm)
Packaging:Bulk
