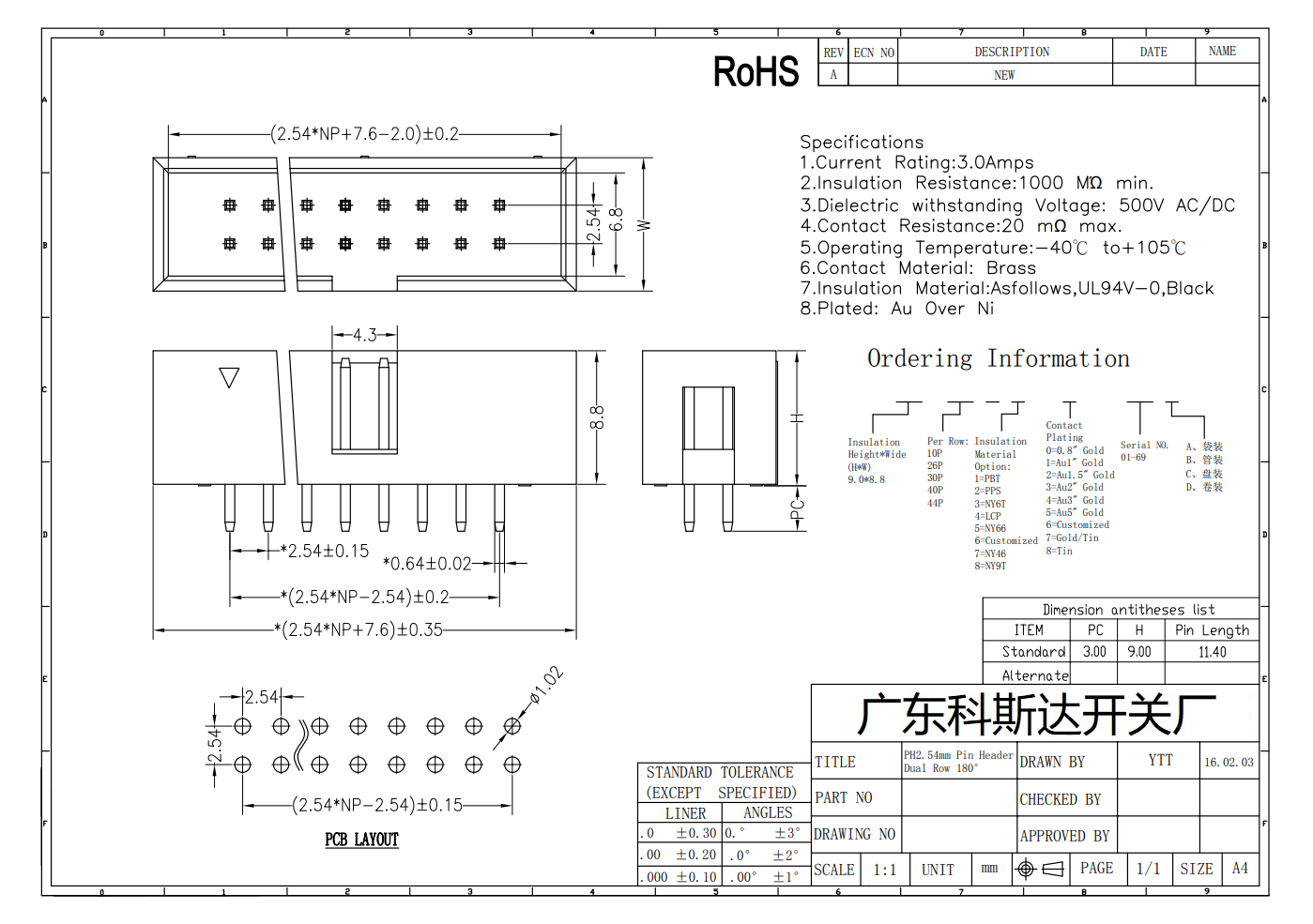

技术指标:
额定电流: 3Amps
绝缘电阻: 1000mΩ min
介质耐压: 500V AC/DC
接触电阻: 20mΩ max
工作温度: -40°C to +105°C
接触材料: brass
镀层: Au over Ni
包装:Tray,Reel
交货时间:7~15 Day
UL:Yes
ROHS Compliant
品牌 科斯达 KOSOD KSDKG
Technical indicators:
Rated current: 3Amps
Insulation resistance: 1000mΩ min
Dielectric withstand voltage: 500V AC/DC
Contact Resistance: 20mΩ max
Operating temperature: -40°C to +105°C
Contact material: brass
Plating: Au over Ni
Packaging: Tray, Reel
Delivery time: 7~15 Days
UL: Yes
ROHS Compliant
Brand KOSOD KOSOD KSDKG
