PR-0001A

PR-0001A

  • 产品特性
  • 应用范围

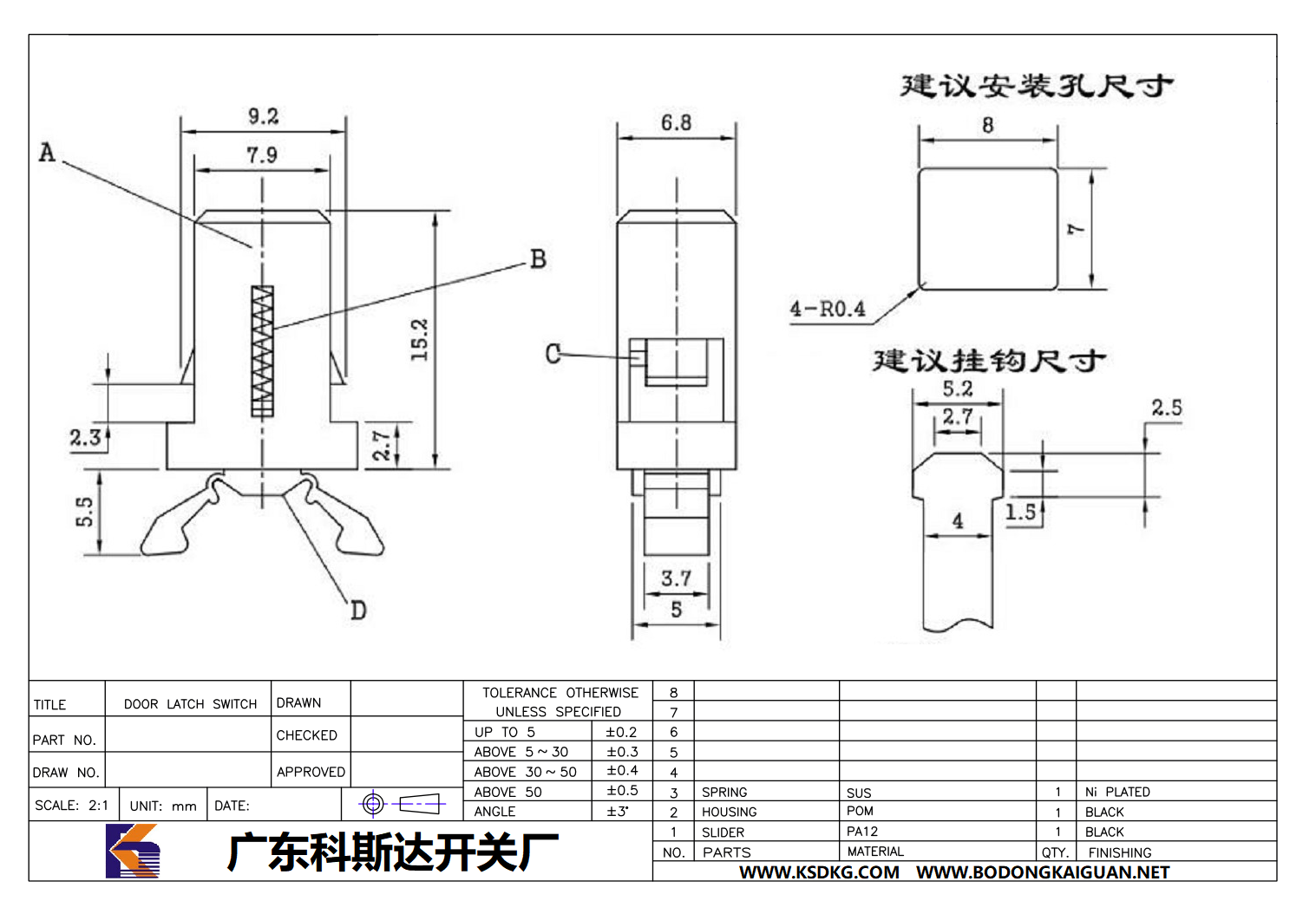

图纸下载 样品申请

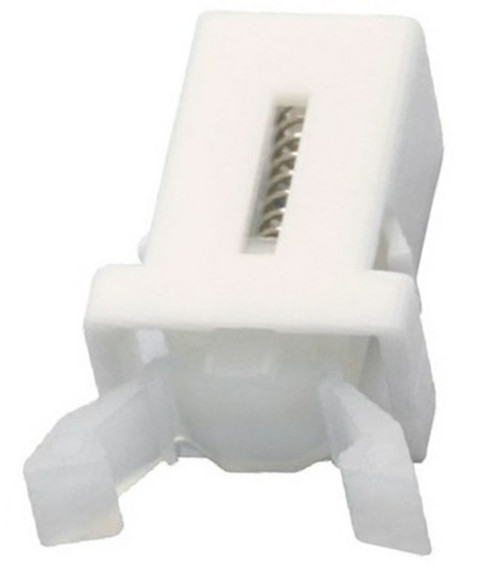

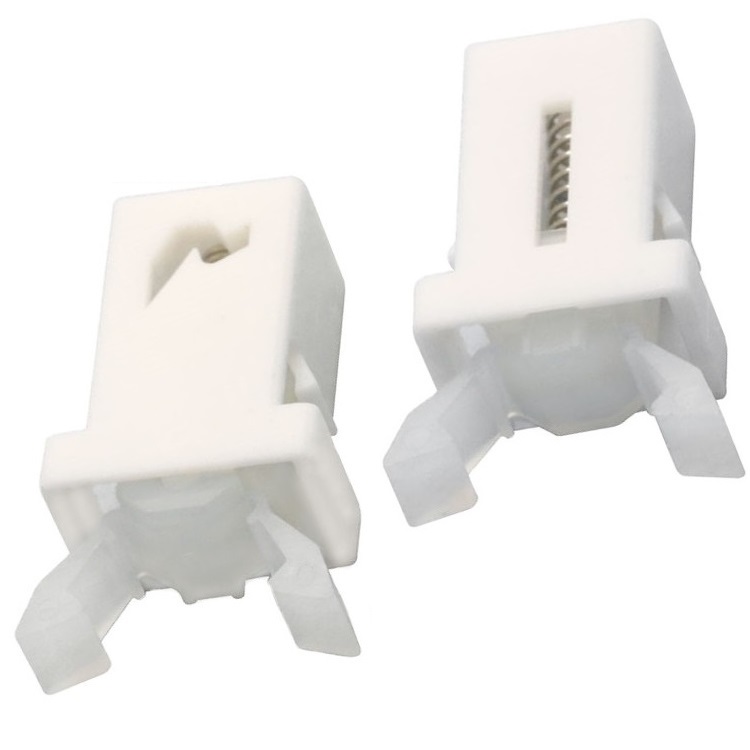

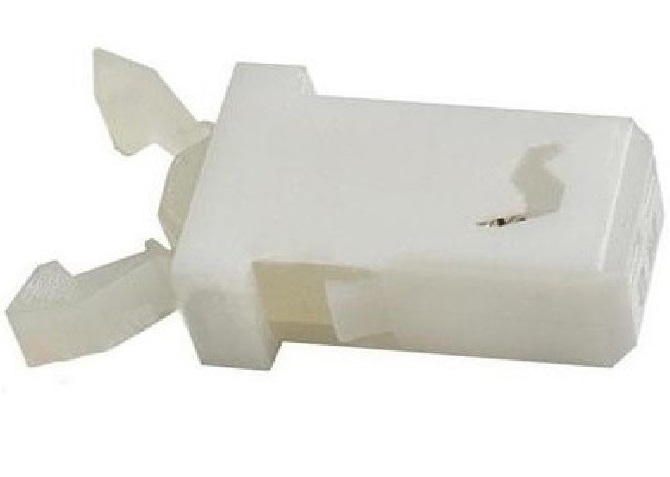

门锁开关 Door switch



一、产品描述(description)

产品名称:门锁开关 门扣开关

材料(material)POM / PA66 / SUS

颜色(color):黑色(black)蓝色(blue

单位(unit)mm

防火等级(Fireproofing level)(UL)94-V2



产品特性

搭配作动式扣具,适用于如电视、录影机等产品的无把手的控制面板盖上。

按一下开启,再按一下关闭。

面板盖或门上不需有把手。

安装简易,不影响门盖之设计。

搭配阻尼器使用,可提升产品价值。

产品规格

MATERIAL: NYLON 66 (UL), PC(UL)

FLAME CLASS: 94V-2

COLOR: BLACK





二、产品用途(Application)

该产品广泛应用于电子电器等行业,主要使用的地方有电饭煲、电水壶、微波炉、咖啡壶、冰箱、电脑机箱、电脑显示屏、电视机微调按钮隐藏无把手的面盖门处,起控制开关门的作用;在汽车烟灰缸、眼镜盒、储物箱、配电箱等等产品上也经常使用;体积小,不占空间,操作方便,搭配阻尼齿轮使用,能很好的提升整个产品档次。

Widely applied in electronic industry, such as electric cooker, electric kettle, microwave oven, electric coffee pot,refrigerator, computer case, computer monitor, and spin button of TV; it hides on the door panel without handle, and function to open and close the door; it is also frequently used in vehicle ashtray, spectacle case, storage compartment,and distribution box. The door latch is small in size and occupies little space; it is easily to use with rotary damper and greatly upgrade the level of the products.



三、产品性能(Function)

该产品为自锁式门扣开关,向下按则自动关闭,再次按下则自动打开,安装简易、使用方便,轻巧美观,不影响面盖门的设计

Self-latching design, push to open and lock, light and artistic, easily and conveniently to install and use, it doesntinfluence the design of the door panel

适用环境(Operating temperature):-30°+80°

使用寿命(life span):10万次以上( At least 100000 times)
