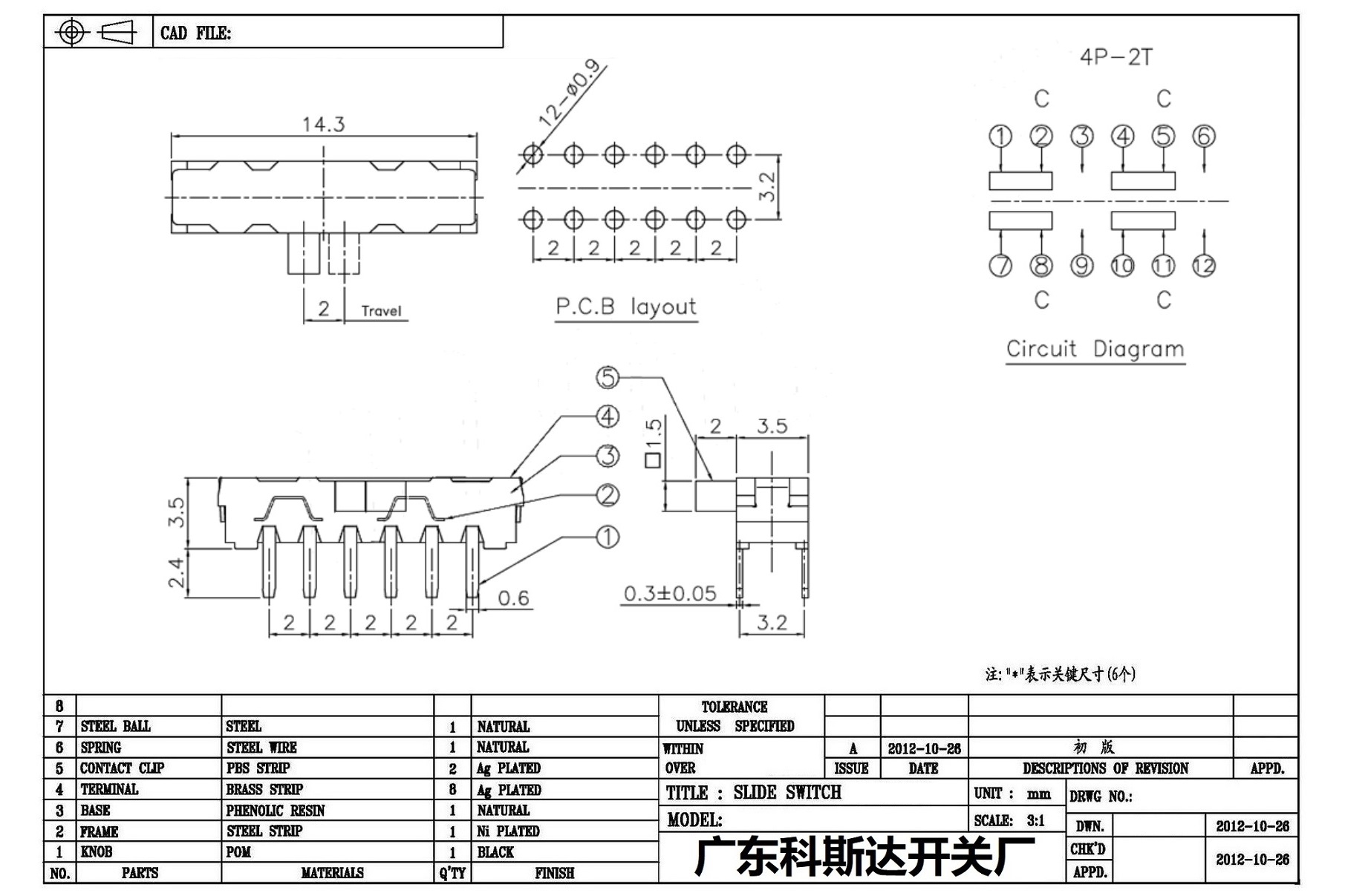

KSD-M-2268D

迷你拨动开关侧拨 技术参数：

1. 额定负荷: DC 12V 30V  0.3A 0.5A         2. 接触阻抗: ≤50mΩ

3. 绝缘阻抗: ≥100mΩ DC500V         4. 耐焊温度: 250±5°5s

5. 使用寿命: 10,000 cycles                 6. 使用温度: -25 ℃ to 80 ℃

7. 使用湿度: ≤85% RH                 8. 操作力 : 160gf

应用：汽车电器、工控设备、数码产品、安防、电脑、通讯产品、家用电器、智能交通等。

Technical parameters of mini slide switch:

1. Rated load: DC 12V 30V 0.3A 0.5A

2. Contact impedance: ≤50mΩ

3. Insulation resistance: ≥100mΩ DC500V

4.  Soldering resistance temperature: 250±5°5s

5. Service life: 10,000 cycles

6.  Operating temperature: -25 ℃ to 80 ℃

7. Operating humidity: ≤85% RH

8. Operating force: 160gf

Application: automotive electrical appliances, industrial control equipment, digital products, security, computers, communication products, household appliances, intelligent transportation, etc.
