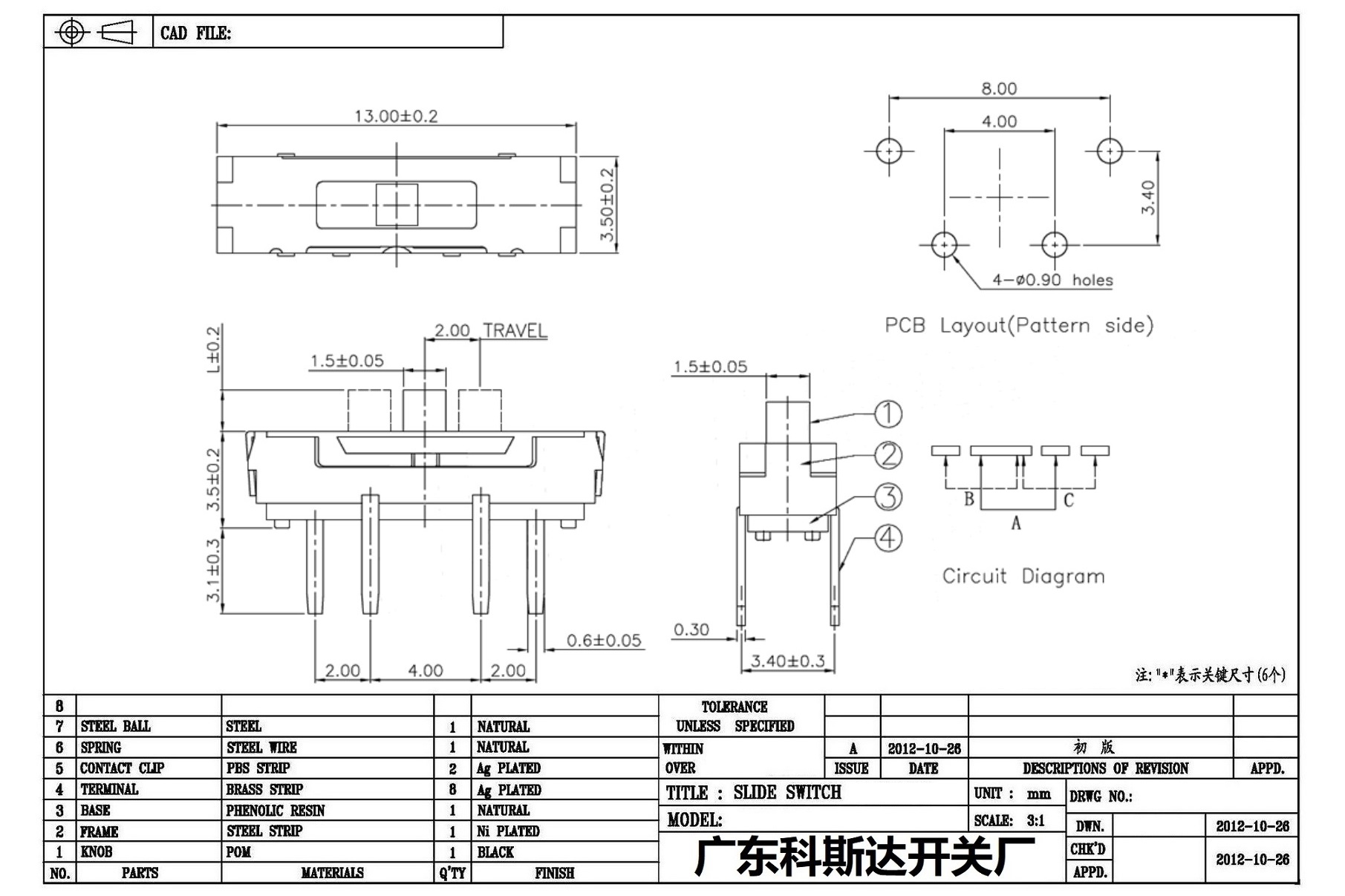

KSD-M-1336D

迷你型拨动开关技术指标

1. 额定负荷: AC 12V 30V  0.3A  0.5A

2. 接触阻抗: ≤50mΩ

3. 绝缘阻抗: ≥100mΩ DC500V

4. 耐焊温度: 250±5°5s

5. 使用寿命: 10,000 cycles

6. 使用温度: -25 ℃ to 80 ℃

7. 使用湿度: ≤85% RH

8. 操作力 : 160gf  200gf  可定制

9.手柄长度:1.5MM-6MM  可定制

应用：汽车电器、工控设备、数码产品、安防、电脑、通讯产品、家用电器、智能交通等。

Mini slide switch technical indicators / micro slide switch technical indicators

1. Rated load: AC 12V 30V 0.3A 0.5A

2. Contact impedance: ≤50mΩ

3. Insulation resistance: ≥100mΩ DC500V

4. Soldering resistance temperature: 250±5°5s

5. Service life: 10,000 cycles

6. Operating temperature: -25 ℃ to 80 ℃

7. Operating humidity: ≤85% RH

8. Operating force: 160gf 200gf can be customized

9. Handle length: 1.5MM-6MM can be customized

Application: automotive electrical appliances, industrial control equipment, digital products, security, computers, communication products, household appliances, intelligent transportation, etc.
