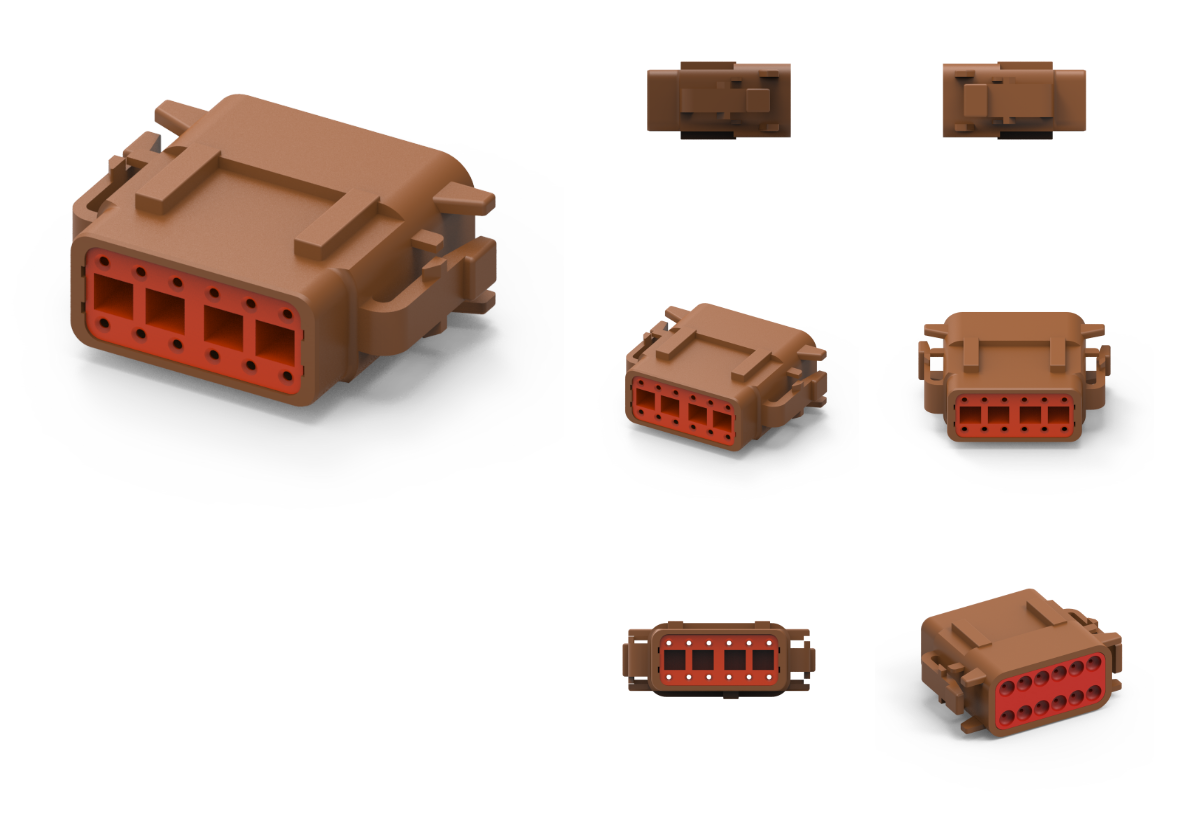

KSD-WP-12F2-23-01（防水连接器主体-棕色）

KSD-WP-12F2-23-01（防水连接器主体-棕色）

  • 产品特性
  • 应用范围

图纸下载 样品申请

品名：DT连接器DTM母头
1.材料
1-1.触点：磷青铜
1-2.外壳：不锈钢
1-3.绝缘体：PA66
1-4.后盖：PA66
1-5.垫片：硅胶或：排水管
1-6.橡胶：硅胶：颜色：橙色
2.电气规格：
2-1.额定电流：7.5A
2-2.额定电压：250V
2-3.防水等级：IP67
3.环境：
3-1.工作温度：-40°~105°
品牌：科斯达开关KSDKG
产地：中国东莞


DTM母头连接器是DT连接器（DT Connectors）系列中的一种，专为应对恶劣环境下的电气连接而设计。它通常用于工业、汽车、军事和航空等领域，具有耐腐蚀、抗震动和防水防尘等特性。

DTM母头连接器概述

特征
1.小型化设计：
DTM母头连接器的尺寸较小，适用于空间有限的应用，允许在狭窄的地方进行电气连接。

2.多针配置：
DTM母头提供多种针脚数量选项，通常在 3 至 5 针之间，支持不同的电气连接需求。

3.防护等级：
DTM连接器通常具有IP67或更高级别的防护等级，能够防水防尘，适合在潮湿、尘土飞扬或恶劣的温度条件下使用。

4.耐用材料：
使用高强度工程塑料和金属材料制作，提供良好的机械强度和耐候性。

5.锁定设计：
配有有效的锁定机制，确保连接稳固，并避免在振动或冲击条件下松脱。

应用领域

1.汽车工业：
多用于汽车的传感器、马达、车载电子设备等的连接。

2.工业设备：
在自动化设备、控制系统和机器上广泛应用，帮助实现可靠的电气连接。

3.重型机械：
用于重型机械、农业设备和建筑设备，确保在极端工作环境中的稳定连接。

4.军事和航空航天：
为军用车辆及航空航天器中的关键系统提供坚固可靠的电气连接。

安装与维护建议

1.正确连接：
确保母头与相应的公头连接器完全对接，听到“咔哒”声后确认锁定到位。

2.定期检查：
定期检查连接器外观，注意是否有磨损、腐蚀或污垢，保持连接器清洁以保证良好接触。

3.环境适应性：
如果连接器在极端环境下使用，定期清洁和维护，保证防护性能。

4.避免过载：
确保在规定的电压和电流范围内使用，以防止连接器过载和故障。

总结
DTM母头连接器是一个在多个行业中非常实用的连接解决方案，特别是在需要稳固和可靠电气连接的应用场合。它的设计强调了耐用性和环境适应性，适用于各种工业和商业应用。如果您有更多关于DTM母头连接器的具体问题或需要建议，欢迎联系技术员！




Product Name: DT Connector DTM Female Head
1. Materials
1-1. Contact: phosphor bronze
1-2. Shell: Stainless steel
1-3. Insulator: PA66
1-4. Rear cover: PA66
1-5. Gasket: Silicone or: Drainage pipe
1-6. Rubber: Silicone: Color: Orange
2. Electrical specifications:
2-1. Rated current: 7.5A
2-2. Rated voltage: 250V
2-3. Waterproof grade: IP67
3. Environment:
3-1. Working temperature:- 40°~105°
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


DTM female connector is a type of DT connectors series designed specifically for electrical connections in harsh environments. It is commonly used in industrial, automotive, military, and aviation fields, and has characteristics such as corrosion resistance, vibration resistance, and waterproof and dustproof properties.

Overview of DTM Female Connector

features
1. Miniaturization design:
The DTM female connector has a smaller size and is suitable for applications with limited space, allowing for electrical connections in narrow areas.

2. Multi needle configuration:
DTM female connectors offer multiple pin count options, typically between 3 and 5 pins, supporting different electrical connection requirements.

3. Protection level:
DTM connectors typically have a protection level of IP67 or higher, are waterproof and dustproof, and are suitable for use in humid, dusty, or harsh temperature conditions.

4. Durable materials:
Made of high-strength engineering plastics and metal materials, providing excellent mechanical strength and weather resistance.

5. Locking design:
Equipped with an effective locking mechanism to ensure a stable connection and prevent loosening under vibration or impact conditions.

application area

1. Automotive industry:
Commonly used for connecting sensors, motors, and onboard electronic devices in automobiles.

2. Industrial equipment:
Widely used in automation equipment, control systems, and machines to help achieve reliable electrical connections.

3. Heavy machinery:
Used for heavy machinery, agricultural equipment, and construction equipment to ensure stable connections in extreme working environments.

4. Military and Aerospace:
Provide robust and reliable electrical connections for critical systems in military vehicles and aerospace vehicles.

Installation and maintenance recommendations

1. Correct connection:
Ensure that the female connector is fully connected to the corresponding male connector, and confirm that it is locked in place upon hearing a "click" sound.

2. Regular inspection:
Regularly inspect the appearance of the connector, paying attention to any wear, corrosion, or dirt, and keep the connector clean to ensure good contact.

3. Environmental adaptability:
If the connector is used in extreme environments, regular cleaning and maintenance are necessary to ensure its protective performance.

4. Avoid overload:
Ensure use within the specified voltage and current range to prevent connector overload and malfunction.

summary
DTM female connector is a very practical connection solution in multiple industries, especially in applications that require stable and reliable electrical connections. Its design emphasizes durability and environmental adaptability, making it suitable for various industrial and commercial applications. If you have more specific questions or need advice about DTM female connectors, please feel free to contact a technician!
