排针连接器技术指标:
规范:
额定电流: 3Amps
绝缘电阻: 1000mΩ min
介质耐压: AC 1000V
接触电阻: 20mΩ max
工作温度: -40°C to +105°C
接触材料: brass
电镀: Au over Ni
包装:Tube,Reel，Bag
交货时间:7~15 Day
符合ROHS
品牌 科斯达 KOSOD KSDKG

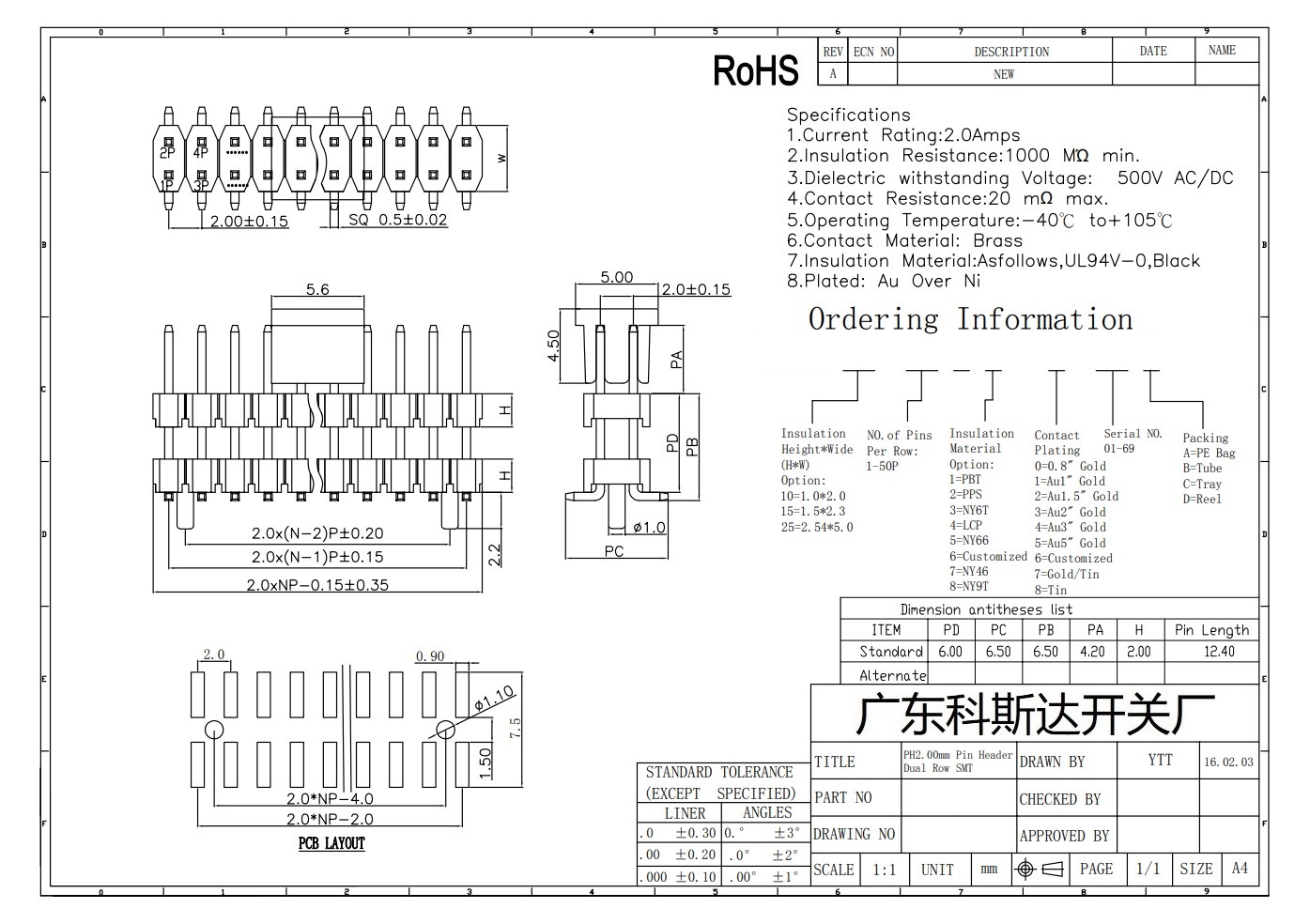

Pin header connector technical indicators:
specification:
Rated current: 3Amps
Insulation resistance: 1000mΩ min
Dielectric withstand voltage: AC 1000V
Contact Resistance: 20mΩ max
Operating temperature: -40°C to +105°C
Contact material: brass
Plating: Au over Ni
Packaging: Tube, Reel, Bag
Delivery time: 7~15 Days
Compliant with ROHS
Brand KOSOD KOSOD KSDKG
