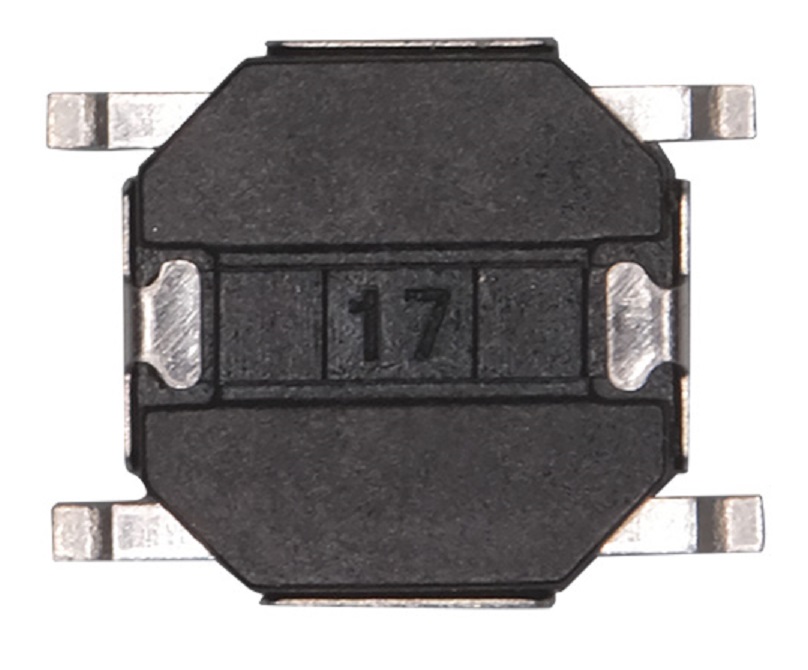

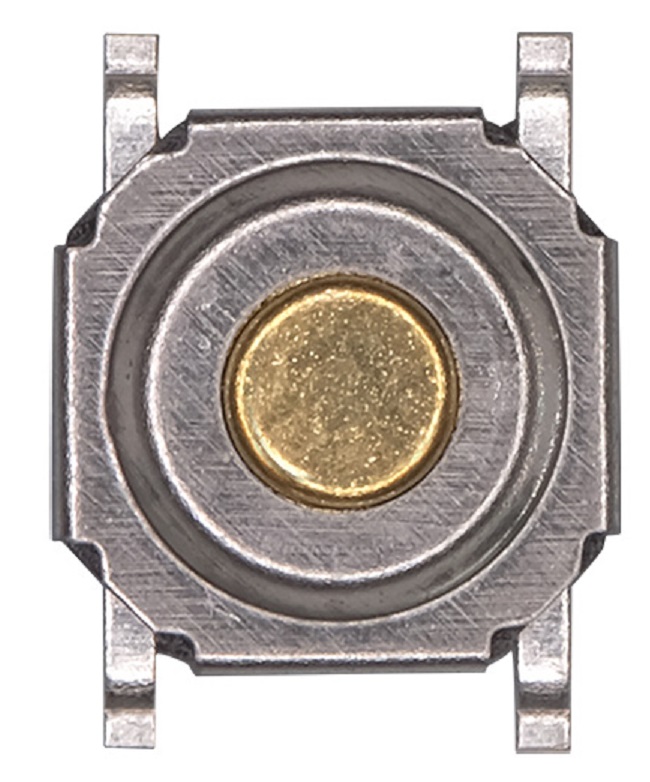

KSD-PTS-526 series 技术特性SMT 的 5.2 X 5.2轻触开关 标准规范最大电压：12伏直流电最大直流电流：50 mA介电强度：250 VA C（1毫米）接触电阻：初始值≤100 mΩ绝缘电阻：≥100 MΩ弹跳时间：≤10ms流程焊接：该组件适用于以下方法：红外回流焊符合IEC61760-1包装每卷5000件，高度为0.8毫米每卷4.000件，每卷1.5件；1.7和2.0毫米高卷筒尺寸符合EIA 481B外径330毫米注：•上述规格适用于带标准选项的开关。供参考关于特定和定制的开关，请咨询客户服务中心。•PTS系列未经汽车应用认证，也没有PPAP。然而，在某些汽车配件和特定应用的情况下PTS广泛应用于2轮和3轮车辆，非常适合请联系您当地的科斯达开关厂代表将讨论您的应用程序和最佳交换机解决方案。品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA产品应用：医疗电器、航模、无人机、灯具照明、通讯、控制手柄、速控设备、新能源、航模设备、仪表仪器、小家电、汽车等领域科斯达开关厂KSD-PTS-526 series 系列是一款小型轻触开关, 尺寸 5.2 x 5.2mm 的 SMT 版本轻触开关, 提供 4 种不同的高度和 3 种可用的操作力选项, 是通用应用的理想选择。KSD-PTS526 系列贴片轻触开关还有接地脚的版本。
Technical characteristics of KSD-PTS-526 series5.2 X 5.2 Tactile Switch Standard Specification for SMTMaximum voltage: 12V DCMaximum DC current: 50 mADielectric strength: 250 VA C (1 mm)Contact resistance: Initial value ≤ 100 m ΩInsulation resistance: ≥ 100 M ΩBounce time: ≤ 10mstechnological processWelding: This component is suitable for the following methods:Infrared reflow soldering complies with IEC61760-1packing5000 pieces per roll, with a height of 0.8 millimeters4000 pieces per roll, 1.5 pieces per roll; 1.7 and 2.0 millimeters highThe drum size complies with EIA 481BOuter diameter 330 millimetersNote:The above specifications are applicable to switches with standard options. For reference on specific and customized switches, please consult the customer service center.The PTS series has not been certified for automotive applications and does not have PPAP. However, in certain automotive parts and specific applications, PTS is widely used in 2-wheel and 3-wheel vehicles, making it very suitable. Please contact your local Costa switch factory representative to discuss your application and the best switch solution.Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDAProduct applications: medical appliances, model aircraft, drones, lighting fixtures, communication, control handles, speed control equipment, new energy, model aircraft equipment, instrumentation, small appliances, automobiles and other fieldsThe KSD-PTS-526 series from Costa Switch Factory is a small tactile switch with a size of 5.2 x 5.2mm in SMT version. It offers 4 different heights and 3 available operating force options, making it an ideal choice for general applications. The KSD-PTS526 series patch touch switch also has a version with a grounding pin.Current Rating:50mA @ 12VDCCircuit:SPST-NOMounting Type:Surface MountSealing:Sealed - IP40Illumination:No/NoneSwitch Function:Off-MomElectrical Life Cycles:200,000Actuator Type:NoneActuator Height off PCB, from Pins:0.8 mmActuator Orientation:Top ActuatedTermination Style:Gull WingFootprint:5.20mm x 5.20mmIllumination Voltage (Nominal):Illumination Type, Color:Operating Force:260 gfAdditional Features:Packaging:Tape & Reel
