KSD-D6F series 技术特性
电气机械
环境的流程可焊性：波峰焊，与无铅焊接型材兼容手工焊接，350˚C，持续3秒
包装D6交换机装在10个托盘的箱子里，每个托盘250个：每箱共2500件。D6按钮批量交付，每箱2500个。
最大开关功率：3瓦0.35瓦
最大开关电压：32伏直流35伏直流
开关电流最大值：100 mA DC 10 mA DC
使用寿命
最大开关功率：
F1版本：250000次操作
F2版本：100000次操作
F1版本：100000次操作
F2版本：30000次操作
接触电阻：≤100 mΩ≤200 mΩ
介电强度（50赫兹/1分钟）：250伏
绝缘电阻：≥108Ω
弹跳时间：≤10ms
切换行程：F1版：0.2 mm≤Te≤1.0 mm
F2版本：0.3毫米≤Te≤1.1毫米0.4毫米≤Te≥0.8毫米
操作力：F1版本：0.8N≤Fa≤1.8N
F2版本：2.0N≤Fa≤3.5N
F1版本：0.8N≤Fa≤1.8N
F2版本：1.5N≤Fa≤2.5N
密封：IP40
工作温度：-20℃至85℃-20℃至60℃
功能：瞬时
联系方式：1联系（SPST），否
按钮中心之间的距离，最小值：12,7（0.500）
端子：PC引脚

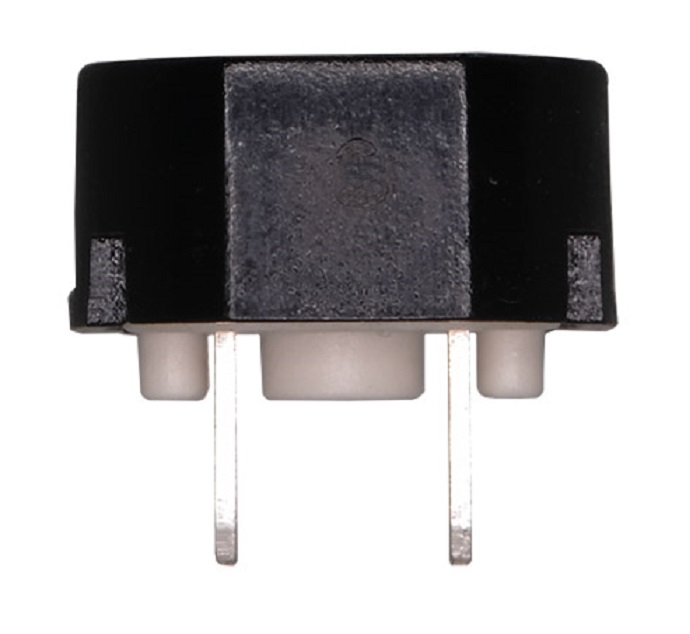

科斯达开关厂开发的 KSD-D6F series 单刀单掷按键开关通常用于家用电器、电子游戏、视频应用和工业控制, 因为它能耐受高温。KSD-D6 是为了在单面印刷电路板上实现简单的XY编码而设计的, 开关符合 RoHS 标准, 有多种颜色和样式可以订购, 您可以轻松地将此开关与您的产品设计进行匹配。
KSD-D6F series Technical characteristics
Electrical Machinery
Solderability of environmental processes: Wave soldering, compatible with lead-free soldering profiles, manual soldering, 350 ° C, lasting for 3 seconds
The D6 switches are packaged in boxes of 10 pallets, with 250 pieces per pallet: a total of 2500 pieces per box. D6 button batch delivery, 2500 pieces per box.
Maximum switching power: 3 watts, 0.35 watts
Maximum switch voltage: 32 volts DC and 35 volts DC
Maximum switch current: 100 mA DC, 10 mA DC
service life
Maximum switching power:
F1 version: 250000 operations
F2 version: 100000 operations
F1 version: 100000 operations
F2 version: 30000 operations
Contact resistance: ≤ 100 m Ω ≤ 200 m Ω
Dielectric strength (50 Hz/1 minute): 250 volts
Insulation resistance: ≥ 108 Ω
Bounce time: ≤ 10ms
Switching stroke: F1 version: 0.2 mm ≤ Te ≤ 1.0 mm
F2 version: 0.3mm ≤ Te ≤ 1.1mm 0.4mm ≤ Te ≥ 0.8mm
Operating power: F1 version: 0.8N ≤ Fa ≤ 1.8N
F2 version: 2.0N ≤ Fa ≤ 3.5N
F1 version: 0.8N ≤ Fa ≤ 1.8N
F2 version: 1.5N ≤ Fa ≤ 2.5N
Sealing: IP40
Working temperature: -20 ℃ to 85 ℃ -20 ℃ to 60 ℃
Function: Instantaneous
Contact information: 1 Contact (SPST), No
Distance between button centers, minimum value: 12,7 (0.500)
Terminal: PC pin
The KSD-D6F series single pole single throw key switch developed by Costa Switch Factory is commonly used in household appliances, electronic games, video applications, and industrial controls because it can withstand high temperatures. KSD-D6 is designed for simple XY encoding on single-sided printed circuit boards. The switch complies with RoHS standards and comes in multiple colors and styles for ordering. You can easily match this switch with your product design.
Current Rating:100mA (DC)
Circuit:SPST-NO
Mounting Type:Thru-hole
Sealing:Unsealed
Illumination:No/None
Switch Function:Off-Mom On
Electrical Life Cycles:250,000
Voltage Rating - AC:
Voltage Rating - DC:32V
Actuator Type:Square, Button
Color - Actuator/Cap:
Illumination Type, Color:
Termination Style:Thru-hole
Packaging:Bulk
