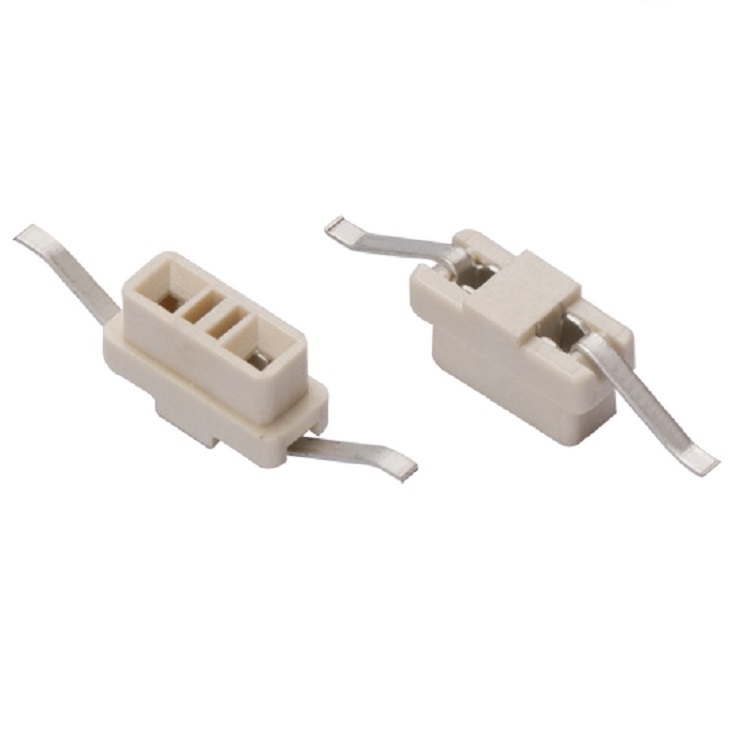

产品名称：LED连接器
产品规格：
线数：02
接触电阻：<20mΩ
绝缘电阻：>1000M2
额定电压：250V AC DC
额定电流：2.0A AC DC
耐压：2000V AC/分钟
温度范围：-40℃~+110℃
外壳：PA46 UL94V-0，自然色（米色）
触点：黄铜/镀镍
品牌：科斯达开关KSDKG
产地：中国东莞
LED连接器是一种专门用于连接LED灯具和电源、控制器的电子元件。LED连接器在LED照明系统中发挥着重要作用，确保电源、信号或数据能够有效、安全地传输。根据不同的应用场合和需求，LED连接器有多种类型和规格。
LED连接器的类型
1.插头和插座连接器：
公母连接器：分为公头和母头，通常用于连接两根电缆，确保稳定的电力供给。
快插式连接器：方便快捷的连接方式，适合需要频繁插拔的场合。
2.接线端子：
螺丝接线端子：通过螺丝固定电线，适合需要稳固连接的应用场景。
弹簧接线端子：提供快速连接的同时，有较好的免维护性能。
3.带状连接器：
专为LED灯带设计，通常是单排或双排针接口，方便多个LED灯带的连接。
4.专用连接器：
DMX连接器：用于舞台和照明控制系统中，便于控制多个LED设备。
PWM调光连接器：能与调光器结合使用，以调节灯光亮度。
应用领域
住宅照明：LED灯具、灯带的连接，常用于室内照明和装饰。
商业场所：商店、展示柜、广告标识等领域。
舞台灯光：用于舞台或演出场所的LED灯具连接与控制。
景观照明：用于户外照明和园艺照明等装饰。
选择LED连接器的注意事项
1.额定电压和电流：确保连接器的额定值符合实际用电需求，以避免过载和电气故障。
2.连接方式：根据实际应用选择合适的连接方式，例如是否需要快插、转接或固定连接。
3.防水防尘能力：如果应用于户外或潮湿环境，选择具有防水和防尘等级的连接器。
4.兼容性：确保连接器 compatible 于所用的LED灯具和电源，避免接口不匹配。
使用LED连接器的技巧
1.检查电缆状况：在连接之前，确保电缆没有破损，接头干净，避免短路。
2.遵循说明书：安装时遵循厂家的指导说明，确保连接正确、安全。
3.定期维护：定期检查连接器的连接状态，确保接触良好，防止电流不稳或接触不良。
总结
LED连接器在现代照明系统中至关重要，选择合适的连接器可以保证LED灯具的正常工作，提高系统的稳定性和安全性。在选型和使用时需考虑实际需求和环境条件，从而实现最佳的照明效果。
Product Name: LED Connector
Product specifications:
Number of lines: 02
Contact resistance:<20m Ω
Insulation resistance:>1000M2
Rated voltage: 250V AC DC
Rated current: 2.0A AC DC
Voltage resistance: 2000V AC/min
Temperature range: -40 ℃~+110 ℃
Shell: PA46 UL94V-0, natural color (beige)
Contact: brass/nickel plated
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
LED connector is an electronic component specifically designed to connect LED lighting fixtures, power supplies, and controllers. LED connectors play an important role in LED lighting systems, ensuring effective and secure transmission of power, signals, or data. According to different application scenarios and requirements, there are various types and specifications of LED connectors.
Types of LED connectors
1. Plug and socket connectors:
Male and female connectors: divided into male and female connectors, usually used to connect two cables to ensure stable power supply.
Quick plug connector: a convenient and fast connection method, suitable for occasions that require frequent plugging and unplugging.
2. Wiring terminals:
Screw terminal block: Fixing wires with screws is suitable for applications that require stable connections.
Spring wire terminal: Provides fast connection while also having good maintenance free performance.
3. Ribbon connector:
Specially designed for LED light strips, usually with single or double row pin interfaces, facilitating the connection of multiple LED light strips.
4. Specialized connector:
DMX connector: used in stage and lighting control systems for easy control of multiple LED devices.
PWM dimming connector: can be used in conjunction with a dimmer to adjust the brightness of the light.
application area
Residential lighting: Connection of LED lamps and strips, commonly used for indoor lighting and decoration.
Commercial premises: shops, display cabinets, advertising signs, and other areas.
Stage lighting: LED lighting fixtures used for connecting and controlling stages or performance venues.
Landscape lighting: used for decoration such as outdoor lighting and gardening lighting.
Precautions for choosing LED connectors
1. Rated voltage and current: Ensure that the rated value of the connector meets the actual power demand to avoid overload and electrical faults.
2. Connection method: Choose the appropriate connection method based on the actual application, such as whether quick plug, adapter, or fixed connection is needed.
3. Waterproof and dustproof capabilities: If used outdoors or in humid environments, choose connectors with waterproof and dustproof ratings.
4. Compatibility: Ensure that the connector is compatible with the LED lighting fixtures and power supplies used to avoid interface mismatch.
Tips for using LED connectors
1. Check the condition of the cable: Before connecting, ensure that the cable is not damaged, the joint is clean, and avoid short circuits.
2. Follow the instructions: During installation, follow the manufacturer's instructions to ensure correct and safe connections.
3. Regular maintenance: Regularly check the connection status of the connector to ensure good contact and prevent unstable current or poor contact.
summary
LED connectors are crucial in modern lighting systems. Choosing the appropriate connector can ensure the normal operation of LED fixtures, improve system stability and safety. When selecting and using, it is necessary to consider actual needs and environmental conditions in order to achieve the best lighting effect.
