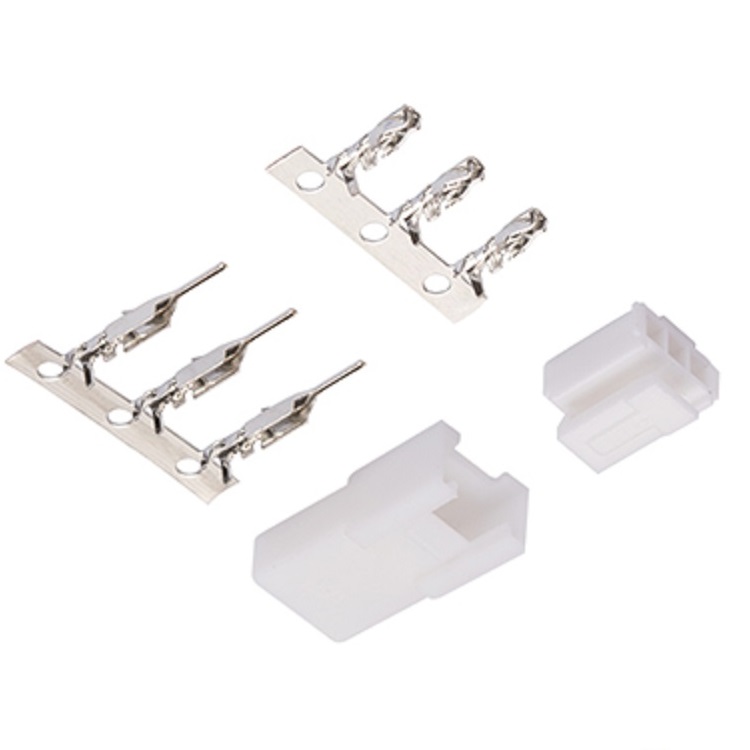

产品名称：线对线连接器
产品规格：
接触电阻：≤10mn
绝缘电阻：>1000MΩ
额定电压：250V AC DC
额定电流：3.0A AC DC
耐压：1000v AC/分钟
温度范围：-25℃~+85℃
材质：PA66，UL94V-0
品牌：科斯达开关KSDKG
产地：中国东莞
线对线连接器（Wire-to-Wire Connector）是一种用于将两根电缆或导线之间进行电气连接的组件。它能够实现信号和电力的传输，广泛应用于各种电子、通信及电力设备中。以下是有关线对线连接器的详细描述：
1. 结构组成
插头（Plug）：连接器的一部分，通常由绝缘材料和金属导体构成，用于连接导线。
插座（Receptacle）：另一部分，负责与插头的连接，通常也包含绝缘体和金属引脚。
锁定机制：许多线对线连接器设计有锁定装置，以确保插头与插座紧密结合，避免因震动或拉扯而引起的脱落。
2. 类型
不同的连接方式：可以是插拔式、焊接式、螺丝固定式等。
单排与双排：根据引脚排列的不同，分为单排和双排连接器。
各种形状和尺寸：包括圆形、方形及各种特殊形状，适应不同空间和应用需求。
3. 功能
电源与信号传输：能够高效传递电流和信号，满足设备对电源和通信的需求。
模块化设计：支持快速连接和断开，方便维护和更换。
4. 优点
安装方便：大部分线对线连接器设计为简单的插拔式，用户可快速完成安装。
高可靠性：通常具有较强的抗拉、抗震能力，确保在苛刻使用条件下依然可靠。
适应性强：可与多种类型和规格的电缆兼容，广泛应用于各类设备。
可重复使用：由于连接器可多次插拔，提高了经济效益。
5. 应用领域
汽车电子：用于车载电器、传感器、灯光等系统内部的连接。
计算机与网络设备：连接内部电缆和模块，提高数据传输的效率。
家用电器：如洗衣机、冰箱等设备内部电缆连接。
工业设备：如自动化设备、控制面板中连接电源和信号线。
6. 安装注意事项
选择合适的连接器：根据电线的规格、数量和功率选择合适类型的连接器。
注意焊接质量：如果使用焊接型连接器，确保焊点的牢固性和可靠性。
避免误插：部分线对线连接器设计有防误插特性，安装时应确保方向正确。
总结
线对线连接器在电子和电气设备中扮演着至关重要的角色。它不仅实现了可靠的电气连接，同时也方便了设备的维护和升级。随着技术的发展，线对线连接器的种类、性能和适用范围不断丰富，为各种应用提供了灵活、高效的连接解决方案。
Product Name: Wire to wire connector
Product specifications:
Contact resistance: ≤ 10mn
Insulation resistance:>1000M Ω
Rated voltage: 250V AC DC
Rated current: 3.0A AC DC
Voltage resistance: 1000V AC/min
Temperature range: -25 ℃~+85 ℃
Material: PA66, UL94V-0
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
A wire to wire connector is a component used to electrically connect two cables or wires. It can achieve the transmission of signals and power, and is widely used in various electronic, communication, and power equipment. The following is a detailed description of wire to wire connectors:
1. Structural composition
Plug: A part of a connector, usually composed of insulating material and metal conductors, used to connect wires.
Receptacle: Another part responsible for connecting to a plug, usually containing insulation and metal pins.
Locking mechanism: Many wire to wire connectors are designed with locking devices to ensure a tight fit between the plug and socket, avoiding detachment caused by vibration or pulling.
2. Type
Different connection methods: can be plug-in, welded, screw fixed, etc.
Single row and double row: According to the different pin arrangements, they are divided into single row and double row connectors.
Various shapes and sizes: including circular, square, and various special shapes, suitable for different spaces and application needs.
3. Function
Power and signal transmission: capable of efficiently transmitting current and signals, meeting the equipment's needs for power and communication.
Modular design: supports quick connection and disconnection, making maintenance and replacement convenient.
4. Advantages
Easy installation: Most wire to wire connectors are designed as simple plug and play connectors, allowing users to quickly complete the installation.
High reliability: usually has strong tensile and seismic resistance, ensuring reliability even under harsh usage conditions.
Strong adaptability: Compatible with various types and specifications of cables, widely used in various devices.
Reusable: Due to the connector's ability to be plugged and unplugged multiple times, it improves economic efficiency.
5. Application Fields
Automotive electronics: used for connecting internal systems such as onboard electrical appliances, sensors, and lighting.
Computers and network devices: Connect internal cables and modules to improve data transmission efficiency.
Household appliances, such as washing machines, refrigerators, and other devices, have internal cable connections.
Industrial equipment: such as automation equipment, connecting power and signal lines in control panels.
6. Installation precautions
Choose the appropriate connector: Select the appropriate type of connector based on the specifications, quantity, and power of the wires.
Pay attention to welding quality: If using welded connectors, ensure the firmness and reliability of the solder joints.
Avoid accidental insertion: Some wire to wire connectors are designed with anti accidental insertion features, and the correct direction should be ensured during installation.
summary
Wire to wire connectors play a crucial role in electronic and electrical equipment. It not only achieves reliable electrical connections, but also facilitates equipment maintenance and upgrades. With the development of technology, the types, performance, and applicability of wire to wire connectors continue to enrich, providing flexible and efficient connection solutions for various applications.
