KSD-R Series 技术特性
标准规范
KSD-R Series 圆形旋转开关
银触点材料：5A@125V交流电；交流电压为250伏时为2.5安；125伏直流时为0.5安；125和250伏交流电压下1/8马力（UL/CSA）。其
电气寿命：满载时10000次通断循环
接触电阻：典型值低于10毫欧。初始电压为2-4V DC，100mA，适用于镀银和镀金触点
绝缘电阻：最小10⁹欧姆。
绝缘强度：海平面最低1000Vrms
索引：36º-单触点型号，最多10个位置。；两种触点型号，最多5个位置
工作温度：-30ºC至95ºC
品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA
产品应用：医疗电器、航模、无人机、灯具照明、通讯、控制手柄、速控设备、新能源、航模设备、仪表仪器、小家电、汽车等领域
科斯达开关厂的KSD-R Series 旋转开关常用于工业设备、便携式工具和吊扇。KSD-R 系列旋钮开关开关以高质量和耐用性而闻名, 开关有扎实的制动, 有多极和多位以及面板或 PCB 安装版本。
KSD-R Series Technical Features
standard specification

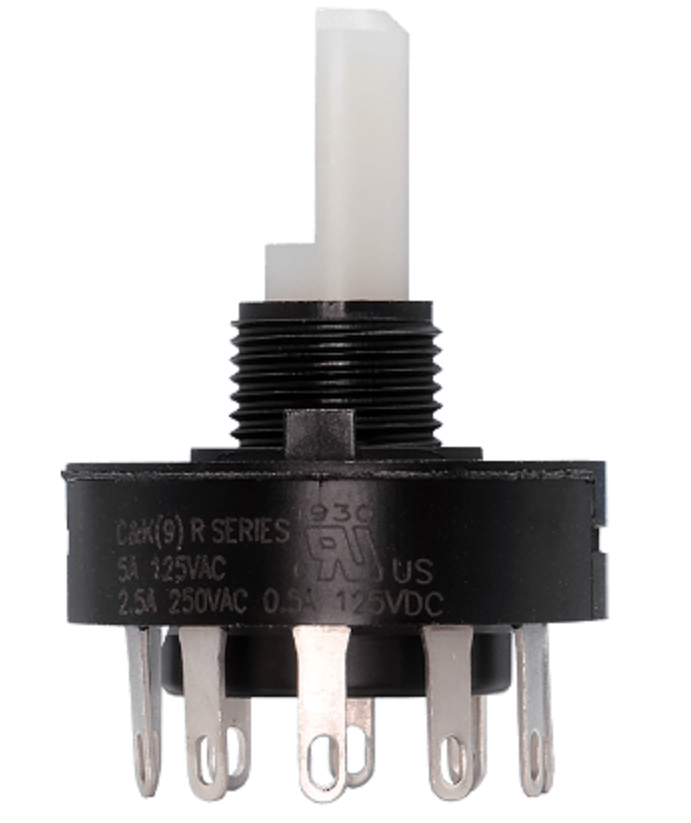

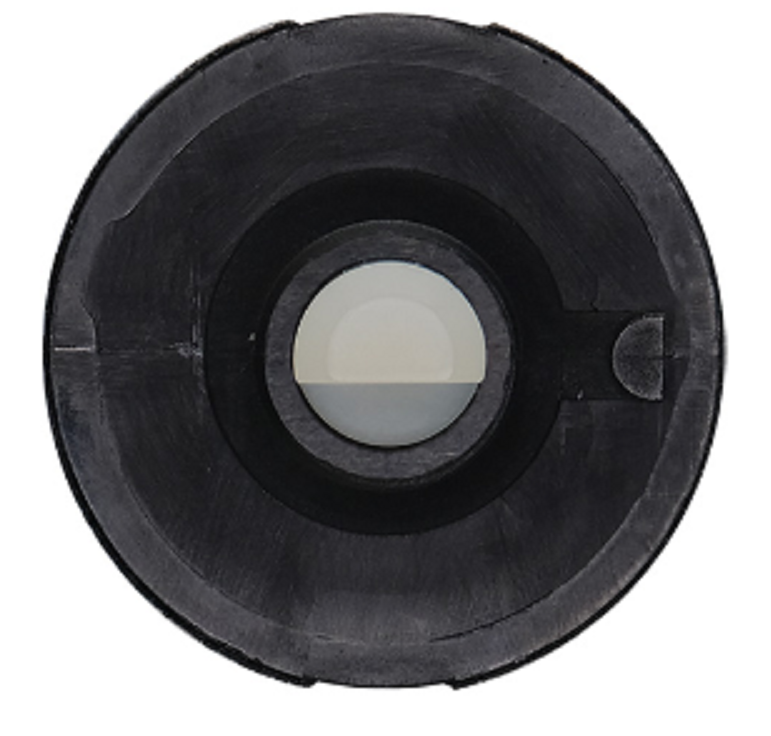

KSD-R Series Circular Rotary Switch
Silver contact material: 5A@125V AC power; When the AC voltage is 250 volts, it is 2.5 amps; 0.5 amps at 125 volts DC; 1/8 horsepower (UL/CSA) at 125 and 250 volts AC voltage. his
Electrical lifespan: 10000 on-off cycles at full load
Contact resistance: Typical value below 10 milliohms. Initial voltage is 2-4V DC, 100mA, suitable for silver and gold plated contacts
Insulation resistance: minimum 10 ohms.
Insulation strength: minimum 1000Vrms at sea level
Index: 36 º - Single contact model, up to 10 positions.; Two types of contact models, up to 5 positions
Working temperature: -30 º C to 95 º C
Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDA
Product applications: medical appliances, model aircraft, drones, lighting fixtures, communication, control handles, speed control equipment, new energy, model aircraft equipment, instrumentation, small appliances, automobiles and other fields
The KSD-R Series rotary switch from Costa Switch Factory is commonly used in industrial equipment, portable tools, and ceiling fans. The KSD-R series rotary switch is renowned for its high quality and durability, with solid braking, multi pole and multi position, and panel or PCB mounting versions.
Current Rating:5A (AC), 500mA (DC)
Circuit per Deck:SP10T
Mounting Type:Not Applicable
Sealing:Unsealed
Illumination:No/None
Number of Positions:10
Electrical Life:10,000
Index Stops:Continuous
Number of Decks:1
Number of Poles per Deck:1
Contact Timing:Non-Shorting (BBM)
Voltage Rating - AC:125 V
Voltage Rating - DC:125 V
Actuator Type:Flatted (6.35mm Dia)
Actuator Length:9.53mm
Angle of Throw:36°
Contact Material:Copper
Contact Finish:Silver
Termination Style:Solder Lug
Depth Behind Panel:
Additional Features:Epoxy Sealed Terminals
