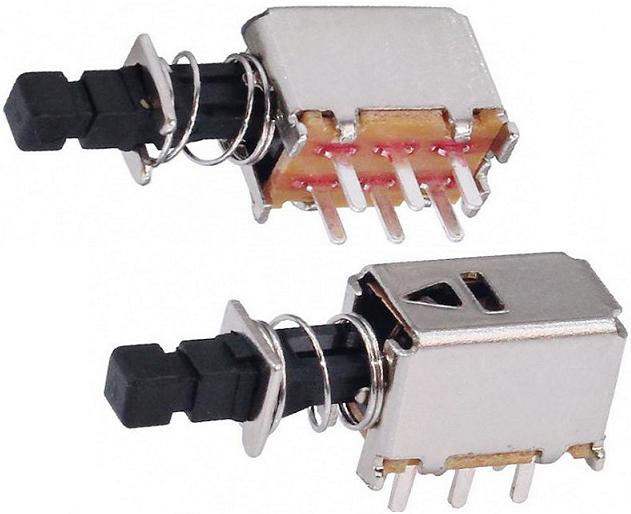

KSD-PS-22F005

KSD-PS-22F005

  • 产品特性
  • 应用范围

图纸下载 样品申请

按钮开关技术指标
1.定负荷: DC 12V 30V  0.3A  0.5A
2. 接触阻抗: ≤50mΩ
3. 绝缘阻抗: ≥100mΩ DC500V
3. 耐焊温度: 250±5°5s
5. 使用寿命: 10,000 cycles
6. 使用温度: -25 ℃ to 80 ℃
7. 使用湿度: ≤85% RH
7. 操作力 : 160gf  可订做
9.功能选择:自锁/无锁
10.可配选按键帽
11.品牌:科斯达   KSDKG
12.应用:汽车电器、工控设备、数码产品、安防、电脑、通讯产品、家用电器、智能交通等。

Button switch technical indicators
1. Constant load: DC 12V 30V 0.3A 0.5A
2. Contact impedance: ≤50mΩ
3. Insulation resistance: ≥100mΩ DC500V
3. Soldering resistance temperature: 250±5°5s
5. Service life: 10,000 cycles
6. Operating temperature: -25 ℃ to 80 ℃
7. Operating humidity: ≤85% RH
7. Operating force: 160gf can be customized
9.Function selection: self-locking/non-locking
10. Optional button cap is available
11. Brand: KOSOD SWITCH   KSDKG
12. Application: automotive electrical appliances, industrial control equipment, digital products, security, computers, communication products, household appliances, intelligent transportation, etc.
