KSD-PN series 技术特性
标准规范
满载时10000次通断循环
接触电阻：初始最大30毫欧
30 V DC时最大0.2 A。
机械寿命：10000次开/关循环
绝缘电阻：最小100兆欧。
绝缘强度：最低500 V交流电。
工作温度：-10ºC至60ºC
品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA

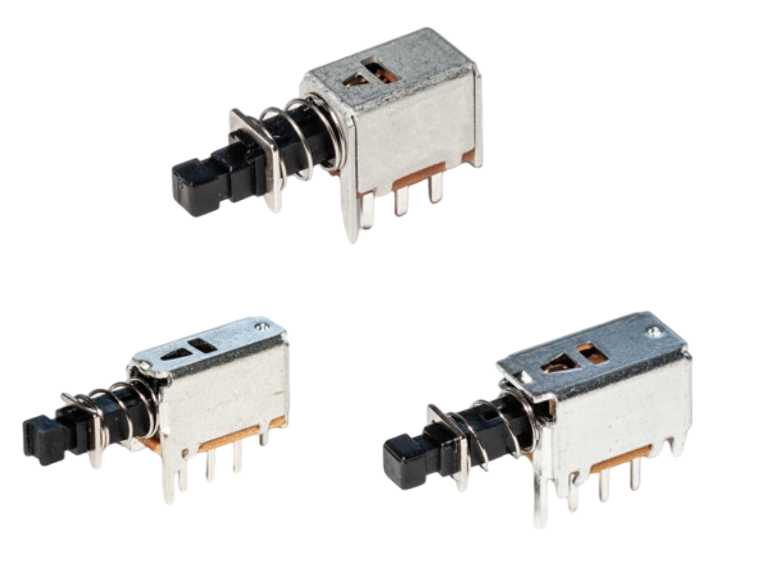

科斯达开关厂的KSD-PN series系列交替和瞬间动作按动开关可用于计算、仪表和测量设备的非电源开关切换。凭借低成本, 可靠的触点设计, 高性能 KSD-PN 自锁按压开关提供瞬间或锁定动作选项, 并具有不同的起动力, 为最终用户提供定制的感受。
KSD-PN series technical features
standard specification
10000 on-off cycles at full load
Contact resistance: initial maximum 30 milliohms
Maximum 0.2 A at 30 V DC.
Mechanical lifespan: 10000 on/off cycles
Insulation resistance: minimum 100 megaohms.
Insulation strength: minimum 500 V AC.
Working temperature: -10 º C to 60 º C
Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDA
The KSD-PN series of alternating and momentary action push switches from Costa Switch Factory can be used for non power switch switching of computing, instrumentation, and measuring equipment. With its low-cost and reliable contact design, the high-performance KSD-PN self-locking push switch provides instant or locking action options and different starting forces, providing customized feelings for end users.
Current Rating:200mA (DC)
Circuit:SPDT
Mounting Type:Thru-hole, Right Angle
Sealing:Unsealed
Illumination:No/None
Switch Function:On-Mom
Electrical Life Cycles:10,000
Voltage Rating - AC:
Voltage Rating - DC:30V
Actuator Type:Plunger for Cap
Color - Actuator/Cap:White
Illumination Type, Color:
Illumination Voltage (Nominal):
Termination Style:Thru-hole, Right Angle
Additional Features:
Epoxy Sealed Terminals
Panel Cutout Dimensions:
Packaging:Bulk
