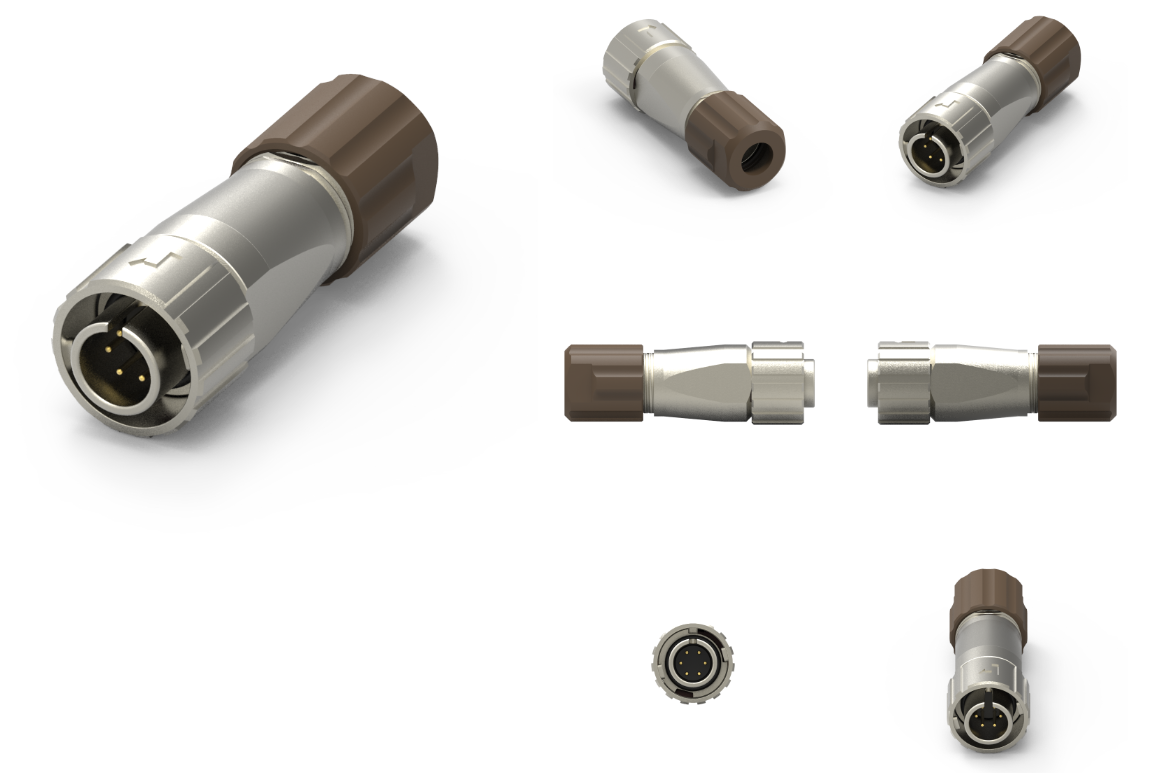

品名：圆形防水连接器Quick Lock NY-LF07公头
1.材料：
1-1. 外壳：PPS UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3.插头外壳：锌合金
1-4. 锁环：锌合金
1-5.弹簧1：不锈钢
1-6.弹簧2：不锈钢
1-7.O型圈1：EPDM
1-8.背壳：锌合金
1-9.屏蔽：磷青铜
1-10.O型圈2：EPDM
1-11.灯具：黄铜
1-12.O型圈3：NBR；颜色：黑色
1-13.STRAIN减压环：尼龙66 UL94V-0；颜色：白色
1-14.拧紧套环：PPS；颜色：棕色
2.完成：
2-1.触点：金色闪光
2-2.接线片外壳：镍
2-3. 锁环：镍
2-4.后壳：镍
2-5.屏蔽：镍
2-6.灯具：镍
3.电气规格：
3-1.额定电流：3PIN 5A；6PIN 2A
3-2.额定电压：3PIN 125V AC / 175V DC；
6PIN 30V DC / 42V DC
4.环境：
4-1.工作温度：-25℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
圆形防水连接器 Quick Lock NY-LF07 公头概述
Quick Lock NY-LF07 公头是一种高性能的圆形防水连接器，专为需要快速连接和断开的应用而设计。这款连接器通常用于电气设备中，能够在潮湿或多尘的环境中提供安全、可靠的电气连接。其独特的锁定机制和防水设计使其在多个行业中具有广泛的应用。
主要特点
1.快速锁定功能：
便捷插拔：Quick Lock 设计使得连接器可以快速而简单地插入和拔出，非常适合需要频繁更换或维护的设备。
安全锁定：连接器在连接后能够牢固锁定，防止在振动或冲击条件下意外断开。
2.防水性能：
高防护等级：通常达到IP67或更高的防护等级，有效防止水和灰尘的渗入，确保在恶劣环境下的使用。
密封设计：利用优质的密封材料（如硅胶密封圈）提升防水性能，保护连接内部的电气元件。
3.耐用性：
高品质材料：采用耐高温、耐腐蚀的塑料和金属材料，适应严苛的工作环境。
抗震动和冲击：设计增强了抗震动和抗冲击的能力，适合工业设备和移动设备的要求。
4.多样化应用：
可配置的引脚：可根据用户需求提供多种引脚数和排列，以满足不同的电气连接需求。
应用领域
1.汽车行业：用于汽车传感器、控制单元和电源管理系统等。
2.工业自动化：在机器人、PLC、传感器和电机控制等领域的广泛应用。
3.户外设备：适用于安防监控、户外照明等需要防水的设备。
4.航空航天和军事：确保在极端环境下的安全和可靠性。
使用注意事项
1.确保清洁：在连接之前，确保连接器及插头表面无污垢或损伤，保持连接区域干燥。
2.检查密封：定期检查密封圈的完好性，确保连接器的防水性能。
3.遵循额定参数：确保在连接器的额定电压和电流范围内操作，避免超负荷使用。
4.正确安装：按照设计的方向和方式进行插拔，避免引脚损坏或变形。
总结
Quick Lock NY-LF07 公头圆形防水连接器以其优越的防水性能和便捷的锁定机制，成为多个行业中至关重要的连接解决方案。无论是在汽车、工业、还是户外应用中，这种连接器都能提供稳定、安全的电气连接。如果您有兴趣或者需要更详细的技术规格和购买信息，欢迎联系技术员！
Product Name: Circular Waterproof Connector Quick Lock NY-LF07 Male Head
1. Materials:
1-1. Shell: PPS UL94V-0； Color: Black
1-2. Contact: Brass
1-3. Plug housing: Zinc alloy
1-4. Lock ring: Zinc alloy
1-5. Spring 1: Stainless steel
1-6. Spring 2: Stainless steel
1-7. O-ring 1: EPDM
1-8. Backshell: Zinc alloy
1-9. Shielding: phosphor bronze
1-10 O-ring 2: EPDM
1-11. Lamp: Brass
1-12. O-ring 3: NBR； Color: Black
1-13. STRAIN pressure reducing ring: Nylon 66 UL94V-0; Color: White
1-14. Tighten the collar: PPS； Color: Brown
2. Complete:
2-1. Contact: Gold Flash
2-2. Terminal block housing: Nickel
2-3. Lock ring: Nickel
2-4. Rear shell: Nickel
2-5. Shielding: Nickel
2-6. Lamp: Nickel
3. Electrical specifications:
3-1. Rated current: 3PIN 5A; 6PIN 2A
3-2. Rated voltage: 3PIN 125V AC/175V DC;
6PIN 30V DC / 42V DC
4. Environment:
4-1. Working temperature:- 25℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of Quick Lock NY-LF07 Male Circular Waterproof Connector
Quick Lock NY-LF07 male connector is a high-performance circular waterproof connector designed for applications that require quick connection and disconnection. This connector is commonly used in electrical equipment to provide safe and reliable electrical connections in humid or dusty environments. Its unique locking mechanism and waterproof design make it widely used in multiple industries.
main features
1. Quick lock function:
Convenient insertion and removal: The Quick Lock design allows the connector to be quickly and easily inserted and removed, making it ideal for devices that require frequent replacement or maintenance.
Safe locking: The connector can be securely locked after connection to prevent accidental disconnection under vibration or impact conditions.
2. Waterproof performance:
High protection level: usually reaching IP67 or higher protection level, effectively preventing the infiltration of water and dust, ensuring use in harsh environments.
Sealing design: Using high-quality sealing materials (such as silicone sealing rings) to enhance waterproof performance and protect the internal electrical components connected.
3. Durability:
High quality materials: Made of high temperature resistant and corrosion-resistant plastic and metal materials, suitable for harsh working environments.
Anti vibration and impact: The design enhances the ability to resist vibration and impact, suitable for the requirements of industrial and mobile equipment.
4. Diversified applications:
Configurable pins: Multiple pin numbers and arrangements can be provided according to user needs to meet different electrical connection requirements.
application area
1. Automotive industry: used for automotive sensors, control units, and power management systems.
2. Industrial automation: in robotics PLC、 Widely used in fields such as sensors and motor control.
3. Outdoor equipment: Suitable for waterproof devices such as security monitoring and outdoor lighting.
4. Aerospace and military: Ensure safety and reliability in extreme environments.
Precautions for use
1. Ensure cleanliness: Before connecting, ensure that the surface of the connector and plug is free of dirt or damage, and keep the connection area dry.
2. Check the sealing: Regularly check the integrity of the sealing ring to ensure the waterproof performance of the connector.
3. Follow the rated parameters: Ensure operation within the rated voltage and current range of the connector to avoid overloading.
4. Correct installation: Plug and unplug according to the designed direction and method to avoid pin damage or deformation.
summary
The Quick Lock NY-LF07 male round waterproof connector has become a crucial connection solution in multiple industries due to its superior waterproof performance and convenient locking mechanism. Whether in automotive, industrial, or outdoor applications, this connector can provide stable and safe electrical connections. If you are interested or need more detailed technical specifications and purchasing information, please feel free to contact the technician!
