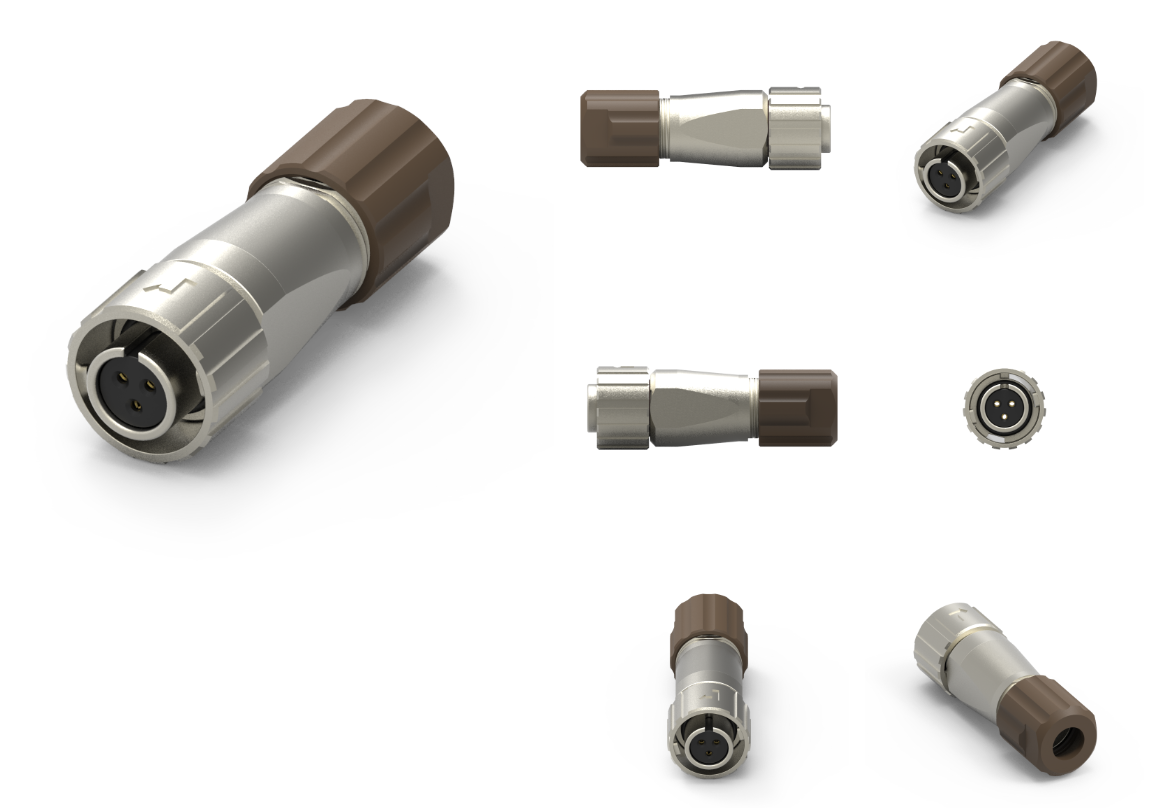

品名：圆形防水连接器Quick Lock NY-LF07母头
1.材料：
1-1. 外壳：PPS UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3.插头外壳：锌合金
1-4. 锁环：锌合金
1-5.弹簧1：不锈钢
1-6.弹簧2：不锈钢
1-7.O型圈1：EPDM
1-8.背壳：锌合金
1-9.屏蔽：磷青铜
1-10.O型圈2：EPDM
1-11.灯具：黄铜
1-12.O型圈3：NBR；颜色：黑色
1-13.STRAIN减压环：尼龙66 UL94V-0；颜色：白色
1-14.拧紧套环：PPS；颜色：棕色
2.完成：
2-1.触点：金色闪光
2-2.接线片外壳：镍
2-3. 锁环：镍
2-4.后壳：镍
2-5.屏蔽：镍
2-6.灯具：镍
3.电气规格：
3-1.额定电流：3PIN 5A；6PIN 2A
3-2.额定电压：3PIN 125V AC / 175V DC；
6PIN 30V DC / 42V DC
3-3. 防水等级：IP67
4.环境：
4-1.工作温度：-25℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
圆形防水连接器 Quick Lock NY-LF07 母头概述
Quick Lock NY-LF07 母头是一种设计精良的圆形防水连接器，专为与公头进行快速、可靠的连接而制造。该母头连接器广泛应用于各种电气设备中，尤其是在对防水和防尘有严格要求的应用场景。其快速连接和强大锁定功能，使得安装和维护工作变得轻而易举。
主要特点
1.快速连接设计：
简易插拔：Quick Lock 设计使得连接器能够快速插入和拔出，极大地提高了安装和拆卸的效率。
安全锁定机制：确保连接后稳定牢固，避免在振动或其它强烈运动下松脱。
2.优越的防水性能：
高防护等级：通常具备IP67或更高的防水和防尘能力，能够在湿润和多尘环境中保持正常运作。
密封设计：采用高质量的密封材料（如硅胶密封圈）以增强防水性能，保护内部电气接触点。
3.耐用性与可靠性：
高强度材料：由耐腐蚀和耐高温的塑料及金属材料制成，适应恶劣的工作环境。
抗震动与抗冲击能力：增强设计使其在频繁振动和冲击中保持优越的性能。
4.多种引脚配置：
灵活的引脚选择：根据不同应用需求，NY-LF07 母头提供多种引脚数和配置选项，以满足不同电气连接的需求。
应用领域
1.汽车行业：广泛应用于电气控制系统、传感器、照明和其他关键组件。
2.工业自动化：在机器人技术、设备控制、传感器和电机驱动等方面得到了广泛使用。
3.户外设备：适用于安防监控、户外照明和其他需要防水保护的设备。
4.航空航天与军事：满足高可靠性和耐用性的连接需求，确保在极端条件下的正常运作。
使用注意事项
1.连接前检查：确保母头和公头连接器的插头表面清洁，无损伤，并保持干燥。
2.定期维护：定期检查密封圈的状态，以确保防水性能不会因老化或磨损而下降。
3.符合规格使用：确保在连接器的额定电压和电流范围内使用，以避免损坏。
4.正确插入：遵循设计方向进行连接和断开，避免引脚变形或损坏。
总结
Quick Lock NY-LF07 母头圆形防水连接器以其实用的快速连接功能和防水性能，成为多个行业电子设备连接方案中不可或缺的部分。无论是在汽车、工业还是户外应用中，都能够提供安全、稳定的电气连接。如果您需要进一步的技术信息或购买建议，欢迎联系技术员！
Product Name: Circular Waterproof Connector Quick Lock NY-LF07 Female Head
1. Materials:
1-1. Shell: PPS UL94V-0； Color: Black
1-2. Contact: Brass
1-3. Plug housing: Zinc alloy
1-4. Lock ring: Zinc alloy
1-5. Spring 1: Stainless steel
1-6. Spring 2: Stainless steel
1-7. O-ring 1: EPDM
1-8. Backshell: Zinc alloy
1-9. Shielding: phosphor bronze
1-10 O-ring 2: EPDM
1-11. Lamp: Brass
1-12. O-ring 3: NBR； Color: Black
1-13. STRAIN pressure reducing ring: Nylon 66 UL94V-0; Color: White
1-14. Tighten the collar: PPS； Color: Brown
2. Complete:
2-1. Contact: Gold Flash
2-2. Terminal block housing: Nickel
2-3. Lock ring: Nickel
2-4. Rear shell: Nickel
2-5. Shielding: Nickel
2-6. Lamp: Nickel
3. Electrical specifications:
3-1. Rated current: 3PIN 5A; 6PIN 2A
3-2. Rated voltage: 3PIN 125V AC/175V DC;
6PIN 30V DC / 42V DC
3-3. Waterproof grade: IP67
4. Environment:
4-1. Working temperature:- 25℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of Quick Lock NY-LF07 Female Circular Waterproof Connector
Quick Lock NY-LF07 female connector is a well-designed circular waterproof connector designed specifically for quick and reliable connection with male connectors. This female connector is widely used in various electrical equipment, especially in application scenarios with strict requirements for waterproofing and dust prevention. Its fast connection and powerful locking function make installation and maintenance work easy.
main features
1. Quick connection design:
Easy to plug and unplug: The Quick Lock design allows connectors to be quickly inserted and removed, greatly improving installation and removal efficiency.
Security locking mechanism: Ensure stable and secure connection, avoiding loosening under vibration or other strong movements.
2. Superior waterproof performance:
High protection level: usually with IP67 or higher waterproof and dustproof capabilities, able to maintain normal operation in humid and dusty environments.
Sealing design: High quality sealing materials (such as silicone sealing rings) are used to enhance waterproof performance and protect internal electrical contact points.
3. Durability and reliability:
High strength materials: made of corrosion-resistant and high-temperature resistant plastic and metal materials, suitable for harsh working environments.
Anti vibration and anti impact capability: Enhance the design to maintain superior performance in frequent vibrations and impacts.
4. Multiple pin configurations:
Flexible pin selection: According to different application requirements, the NY-LF07 female head provides multiple pin numbers and configuration options to meet the needs of different electrical connections.
application area
1. Automotive industry: widely used in electrical control systems, sensors, lighting, and other critical components.
2. Industrial automation: It has been widely used in robot technology, equipment control, sensors, and motor drives.
3. Outdoor equipment: Suitable for security monitoring, outdoor lighting, and other devices that require waterproof protection.
4. Aerospace and military: Meet the connection requirements of high reliability and durability, ensuring normal operation under extreme conditions.
Precautions for use
1. Pre connection inspection: Ensure that the plug surfaces of the female and male connectors are clean, undamaged, and kept dry.
2. Regular maintenance: Regularly check the condition of the sealing ring to ensure that its waterproof performance does not decrease due to aging or wear.
3. Compliant use: Ensure use within the rated voltage and current range of the connector to avoid damage.
4. Correct insertion: Connect and disconnect according to the design direction to avoid pin deformation or damage.
summary
The Quick Lock NY-LF07 female round waterproof connector has become an indispensable part of electronic device connection solutions in multiple industries due to its fast connection function and waterproof performance. Whether in automotive, industrial, or outdoor applications, it can provide safe and stable electrical connections. If you need further technical information or purchasing advice, please feel free to contact the technician!
