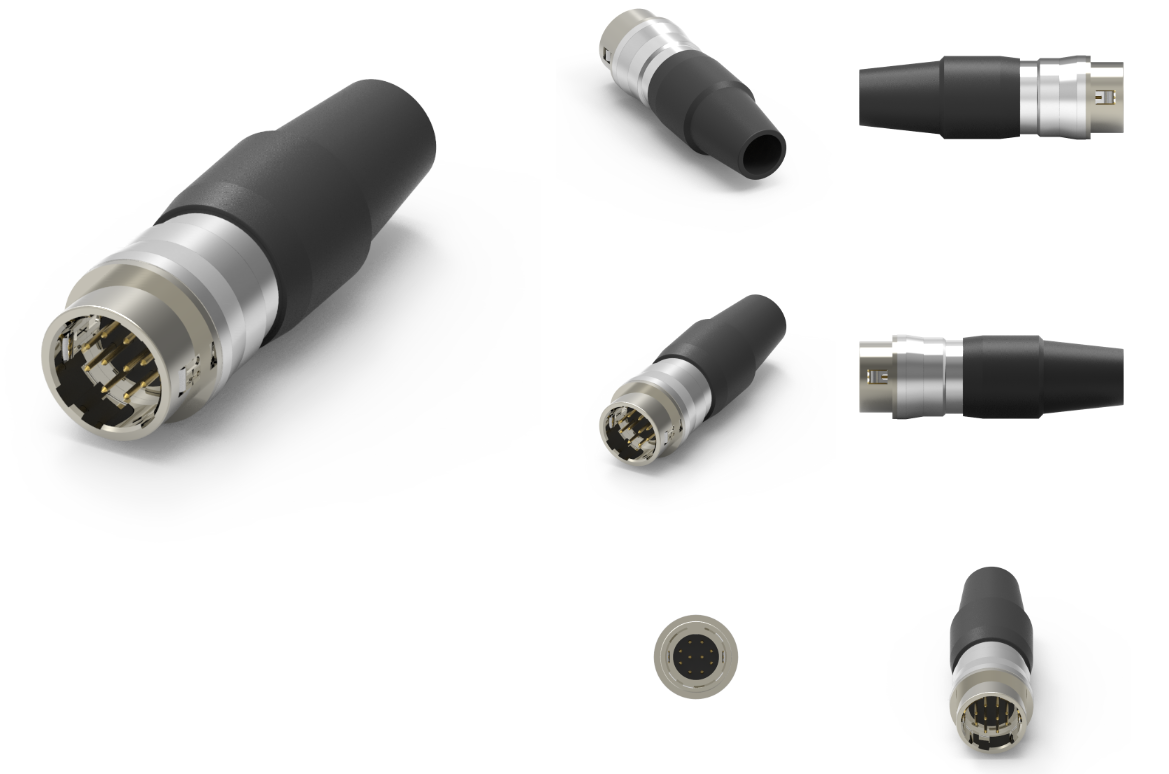

品名：Push Pull Size 10 系列DIN公头连接器
1.材料
1-1.外壳：尼龙66 UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3. 外壳：锌合金
1-4.弹簧：不锈钢
1-5.垫圈：磷青铜
1-6.螺母：黄铜
2.完成
2-1.触点：金闪光
2-2.外壳：镍
2-3. 垫圈：镍
2-4.螺母：镍
3.电气规格
3-1. 额定电流：2A
3-2.额定电压：100V交流/140V直流
4.环境：
4-1.工作温度：-25℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Push Pull Size 10系列DIN公头连接器是一种特殊设计的连接器，适用于需要快速连接和断开的场合。它们通常用于音频、视频、数据传输以及工业自动化等领域。以下是有关Push Pull Size 10系列DIN公头连接器的详细信息：
特点
1.设计：
Push Pull连接机制允许用户快速且简便地连接和断开连接器。通过轻轻拉动或推入连接器，能够实现连接或断开，而无需旋转或其他复杂操作。
尺寸通常较小，适用于空间有限的应用。
2.结构：
该系列连接器通常采用金属和塑料相结合的材料制成，外壳坚固，具有良好的耐用性和防护性。
引脚通常采用镀金或镀镍处理，以提高导电性和耐腐蚀性。
3.性能：
Push Pull设计的防尘和防水特性，使得连接器可以在各种环境条件下可靠工作。
提供稳定的电气连接，适合高频率信号传输。
应用领域
1.音频设备：
常用于舞台音响、音频接口、乐器等设备的连接。
2.视频传输：
应用于需要高带宽和低信号干扰的视频传输设备。
3.工业自动化：
在工业控制和机械设备中，提供快速连接和断开的能力，适合不断变化的连接需求。
4.医疗设备：
由于其可靠性和防水性，适用于医疗设备中的高要求连接。
优势
快速连接：Push Pull机制简化了连接和断开的过程，提升了工作效率。
紧密连接：连接器设计确保在连接时不会因振动或其他外部因素而松动。
兼容性：Size 10连接器在许多设备中广泛使用，能够与其他相同规格的连接器进行匹配。
使用注意事项
1.正确使用：确保在插入和拔出连接器时保持正确的方向和力度，避免损坏连接器。
2.定期检查：定期检查连接器的接触点和外观，确保没有磨损或腐蚀。
3.防护措施：在潮湿或多尘的环境中使用时可以考虑额外的防护措施，以保证连接器的性能。
小结
Push Pull Size 10系列DIN公头连接器是一种高效、可靠的连接解决方案，适合各种应用场景。如果您对该系列连接器有兴趣或需要更多详细信息（如技术规格或产品推荐），欢迎联系技术员！
Product Name: Push Pull Size 10 Series DIN Male Connector
1. Materials
1-1. Shell: Nylon 66 UL94V-0; Color: Black
1-2. Contact: Brass
1-3. Shell: Zinc alloy
1-4. Spring: Stainless steel
1-5. Gasket: phosphor bronze
1-6. Nut: Brass
2. Complete
2-1. Contact: Gold Flash
2-2. Shell: Nickel
2-3. Gasket: Nickel
2-4. Nut: Nickel
3. Electrical specifications
3-1. Rated current: 2A
3-2. Rated voltage: 100V AC/140V DC
4. Environment:
4-1. Working temperature:- 25℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The Push Pull Size 10 series DIN male connector is a specially designed connector suitable for situations that require quick connection and disconnection. They are commonly used in fields such as audio, video, data transmission, and industrial automation. The following is detailed information about the Push Pull Size 10 series DIN male connector:
characteristic
1. Design:
The Push Pull connection mechanism allows users to quickly and easily connect and disconnect connectors. By gently pulling or pushing the connector, connection or disconnection can be achieved without the need for rotation or other complex operations.
The size is usually small and suitable for applications with limited space.
2. Structure:
This series of connectors is usually made of a combination of metal and plastic materials, with a sturdy housing and good durability and protection.
Pins are usually treated with gold or nickel plating to improve conductivity and corrosion resistance.
3. Performance:
The dustproof and waterproof features of the Push Pull design enable the connector to work reliably in various environmental conditions.
Provide stable electrical connections suitable for high-frequency signal transmission.
application area
1. Audio equipment:
Commonly used for connecting stage speakers, audio interfaces, musical instruments, and other equipment.
2. Video transmission:
Applied to video transmission devices that require high bandwidth and low signal interference.
3. Industrial automation:
In industrial control and mechanical equipment, it provides the ability to quickly connect and disconnect, suitable for constantly changing connection requirements.
4. Medical equipment:
Due to its reliability and waterproofing, it is suitable for high demand connections in medical equipment.
advantage
Quick connection: The Push Pull mechanism simplifies the process of connection and disconnection, improving work efficiency.
Tight connection: The connector design ensures that it will not loosen due to vibration or other external factors during connection.
Compatibility: The Size 10 connector is widely used in many devices and can be matched with other connectors of the same specifications.
Precautions for use
1. Proper use: Ensure that the correct direction and force are maintained when inserting and unplugging the connector to avoid damaging it.
2. Regular inspection: Regularly inspect the contact points and appearance of the connector to ensure that there is no wear or corrosion.
3. Protective measures: When used in damp or dusty environments, additional protective measures can be considered to ensure the performance of the connector.
Summary
The Push Pull Size 10 series DIN male connector is an efficient and reliable connection solution suitable for various application scenarios. If you are interested in this series of connectors or need more detailed information (such as technical specifications or product recommendations), please feel free to contact a technician!
