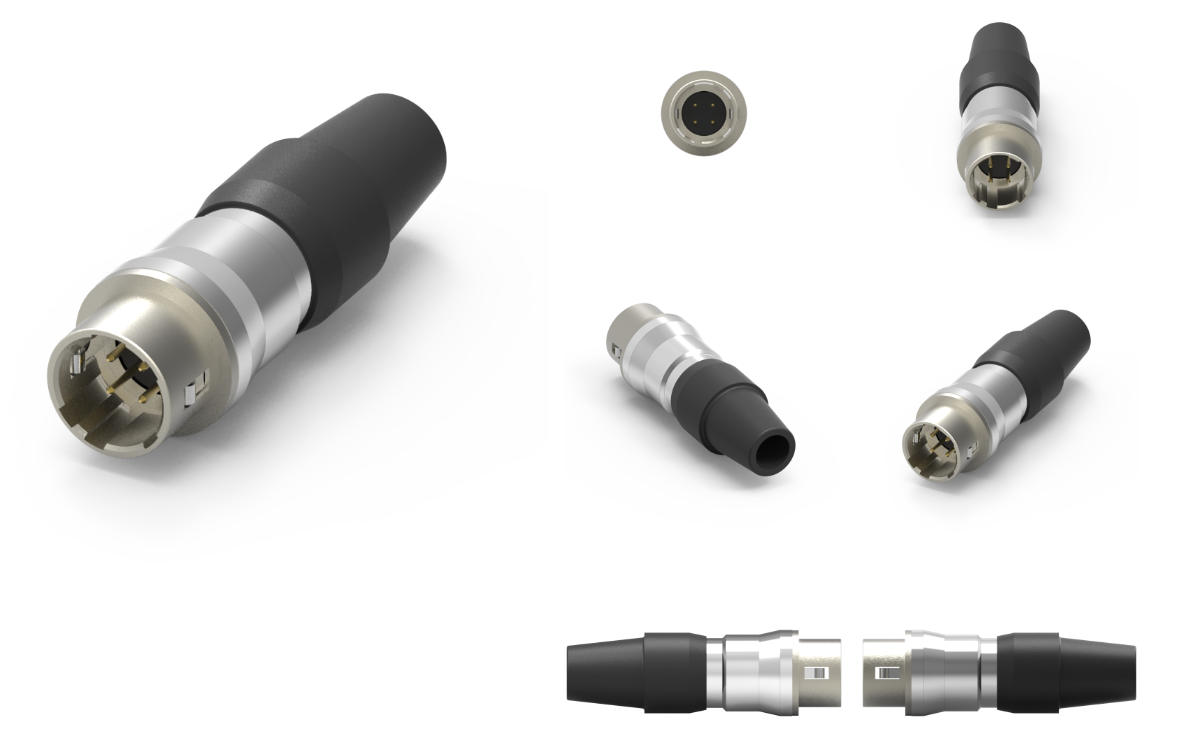

品名：Push Pull Size 7 系列DIN 公头连接器
1.材料：
1-1.外壳：尼龙66 UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3.外壳：锌合金
1-4.弹簧：不锈钢
1-5.垫圈：磷青铜
1-6号：黄铜
2.完成：
2-1.触点：金色闪光
2-2.外壳：镍
2-3.洗涤器：镍
2-4. 螺母：镍
3.电气规格
3-1. 额定电流：2A
3-2.额定电压：4PIN 150V AC/200V DC；
5~7针100V AC/140V DC
4.环境：
4-1.工作温度：-25℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞


DIN 公头连接器是一种标准化的电连接器，广泛应用于音频、视频、以及数据传输等多个领域。DIN连接器的设计优雅而功能强大，提供了稳定的电气连接和机械连接。以下是有关DIN公头连接器的详细信息：

特点

1.种类：
DIN连接器有多种形式，最常见的包括：

3针DIN：通常用于简单的音频信号传输。

5针DIN：广泛用于音频设备，如老式音响和MIDI设备。

8针DIN：可以用于更复杂的应用，支持更多的信号传输。

2.设计：
DIN公头连接器通常由一个圆形外壳和多个引脚组成。采取键位设计防止错误插入。连接器外壳坚固耐用，能够抵抗环境因素的影响。

3.电气特性：
DIN连接器的引脚可以支持不同类型的信号传输，包括音频信号、控制信号和电源。

应用

1.音频设备：
主要用于连接合成器、老式电台和音频工作站等设备。

2.计算机接口：
在早期计算机与外部设备（如打印机及扫描仪）的连接中曾被广泛使用。

3.汽车音响：
在一些汽车音响系统中，DIN连接器也常用于设备之间的连接。

4.工业应用：
某些工业控制设备和自动化系统中，DIN连接器也非常常用。

5.优势
可靠性：DIN连接器的设计确保其在多次插拔后仍能保持良好的连接性。

通用性：多种类型和孔数使得DIN连接器适应多种应用场景。

耐用性：一般采用坚固耐磨的材料，适合工业与常规应用。

使用注意事项

1.选择适合的类型：根据所需连接的设备选择合适的针数和配置。

2.避免插拔时的用力过大：插入和拔出时应保持适度力度，以防损坏连接器或接口。

3.定期检查连接器：保持连接器干净，定期检查是否有磨损或腐蚀现象，以确保良好的电气 conductivity。

小结
DIN公头连接器是一种功能强大且应用广泛的连接技术，适用于音频、计算机和工业设备。选择合适的DIN连接器并正确使用，可以确保设备之间的稳定连接和高效通信。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！



Product Name: Push Pull Size 7 Series DIN Male Connector
1. Materials:
1-1. Shell: Nylon 66 UL94V-0; Color: Black
1-2. Contact: Brass
1-3. Shell: Zinc alloy
1-4. Spring: Stainless steel
1-5. Gasket: phosphor bronze
1-6: Brass
2. Complete:
2-1. Contact: Gold Flash
2-2. Shell: Nickel
2-3. Scrubber: Nickel
2-4.  Nut: Nickel
3. Electrical specifications
3-1.  Rated current: 2A
3-2. Rated voltage: 4PIN 150V AC/200V DC;
5-7 pins 100V AC/140V DC
4. Environment:
4-1. Working temperature:- 25℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China


DIN male connector is a standardized electrical connector widely used in various fields such as audio, video, and data transmission. The design of DIN connectors is elegant and powerful, providing stable electrical and mechanical connections. The following is detailed information about DIN male connectors:

characteristic

1. Type:
DIN connectors come in various forms, the most common of which include:

3-pin DIN: typically used for simple audio signal transmission.

5-pin DIN: widely used in audio equipment, such as old-fashioned speakers and MIDI devices.

8-pin DIN: can be used for more complex applications and supports more signal transmission.

2. Design:
DIN male connectors typically consist of a circular housing and multiple pins. Adopting key design to prevent incorrect insertion. The connector housing is sturdy and durable, and can resist the influence of environmental factors.

3. Electrical characteristics:
The pins of DIN connectors can support different types of signal transmission, including audio signals, control signals, and power.

application

1. Audio equipment:
Mainly used to connect equipment such as synthesizers, old-fashioned radios, and audio workstations.

2. Computer interface:
It was widely used in the connection between early computers and external devices such as printers and scanners.

3. Car audio system:
In some car audio systems, DIN connectors are also commonly used for connecting devices.

4. Industrial applications:
DIN connectors are also commonly used in certain industrial control equipment and automation systems.

5. Advantages
Reliability: The design of DIN connectors ensures good connectivity even after multiple insertions and removals.

Universality: Multiple types and hole numbers make DIN connectors suitable for various application scenarios.

Durability: Generally made of sturdy and wear-resistant materials, suitable for industrial and conventional applications.

Precautions for use

1. Choose the appropriate type: Select the appropriate number of pins and configuration based on the device to be connected.

2. Avoid excessive force during insertion and extraction: Adequate force should be maintained during insertion and extraction to prevent damage to the connector or interface.

3. Regular inspection of connectors: Keep the connectors clean and regularly check for wear or corrosion to ensure good electrical conductivity.

Summary
DIN male connector is a powerful and widely used connection technology, suitable for audio, computer, and industrial equipment. Choosing the appropriate DIN connector and using it correctly can ensure stable connections and efficient communication between devices. If you have further questions or need specific technical parameters, please feel free to contact the technician!
