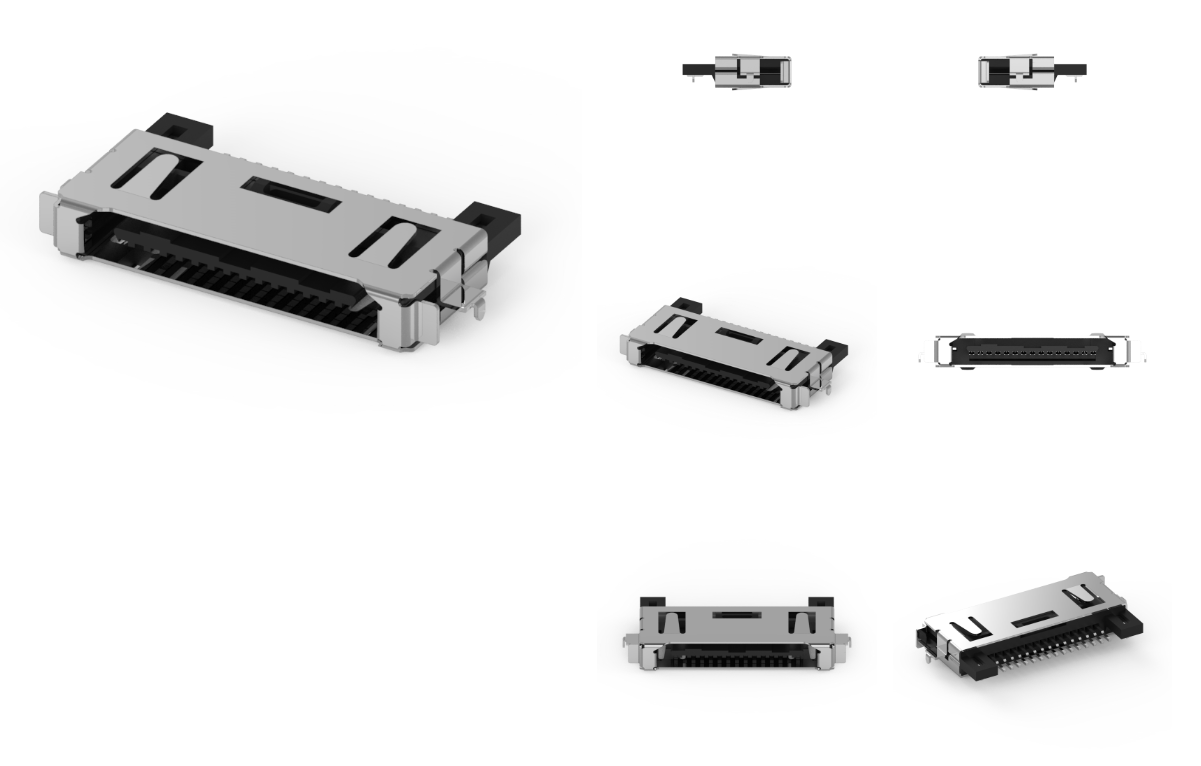

品名：15 Pin PCMCIA公头线端成型式连接器
1.材料：
1-1.外壳：尼龙46 UL94V-0；颜色：黑色
1-2.触点：磷青铜
1-3.插入：PBT UL94V-0；颜色：黑色
1-4.金属盖：不锈钢
1-5.金属下盖：不锈钢
1-6.塑料盖：尼龙
2.完成
2-1.接触：接触面积：5u“最小镀金板
焊接区域：锡
底板：镍
3.电气规格：
3-1.额定电流：0.5A
3-2.电压：125V
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
15 Pin PCMCIA 母头插板式连接器 是一种用于接收和连接 PCMCIA（Personal Computer Memory Card International Association）卡的连接器，广泛应用于各种电子设备，尤其是笔记本电脑和嵌入式系统。这种连接器的设计使得用户能够方便地插入和拔出 PCMCIA 卡，提供电源和数据连接。
1. 特征
1.引脚配置：
该连接器具有 15 个引脚，能够提供电源、地线、数据传输和控制信号的连接。具体引脚的功能配置需参照 PCMCIA 标准及具体设备的要求。
2.插板式设计：
插板式设计使得连接器可以通过直接焊接的方法安装在电路板上，能够节省空间，并提高组装的效率。
3.可靠性：
通常采用高质量的材料（如金属和塑料），保证连接器在不同工作环境下的耐用性和可靠性。
4.兼容性：
该连接器兼容使用不同类型的 PCMCIA 卡，包括但不限于 I/O 卡、存储卡、调制解调器等。
应用领域
1.笔记本电脑：
多用于老旧型号的笔记本电脑，提供扩展功能。
2.嵌入式系统：
在一些嵌入式设备或应用中，15 Pin PCMCIA 母头插板式连接器也被用于提供扩展选项。
3.网络设备：
可用于无线网络适配器等外部设备的连接。
安装与维护建议
1.焊接方式：
安装时，请确保遵循 SMT（表面贴装技术）或 THR（通孔焊接）标准，以获得良好的焊接效果。
2.连接测试：
安装完毕后，应进行功能测试，以确保连接器正常工作，能够与 PCMCIA 卡良好连接。
3.防静电措施：
在安装和维护过程中，使用防静电装备（如防静电手环），以防止静电损坏电子元件。
4.定期检查：
定期检查连接器及其引脚的磨损情况，以确保良好的接触和信号传输。如发现引脚损坏或接触不良，应及时更换。
总结
15 Pin PCMCIA 母头插板式连接器 是一种设计合理且应用广泛的连接器，尽管随着技术的发展，许多新设备已逐渐转向更新的接口标准，但在一些特定的应用中，该连接器仍然具有重要的作用。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: 15 pin PCMCIA male end molded connector
1. Materials:
1-1. Shell: Nylon 46 UL94V-0; Color: Black
1-2. Contact: phosphor bronze
1-3. Insertion: PBT UL94V-0； Color: Black
1-4. Metal cover: stainless steel
1-5. Metal Lower Cover: Stainless Steel
1-6. Plastic cover: Nylon
2. Complete
2-1. Contact: Contact area: 5u "minimum gold-plated plate
Welding area: Tin
Bottom plate: Nickel
3. Electrical specifications:
3-1. Rated current: 0.5A
3-2. Voltage: 125V
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The 15 pin PCMCIA female plug connector is a connector used to receive and connect PCMCIA (Personal Computer Memory Card International Association) cards, widely used in various electronic devices, especially laptops and embedded systems. The design of this connector allows users to easily insert and remove PCMCIA cards, providing power and data connections.
1. Characteristics
1. Pin configuration:
This connector has 15 pins and can provide connections for power, ground, data transmission, and control signals. The specific pin function configuration should refer to the PCMCIA standard and specific device requirements.
2. Plug in design:
The plug-in design allows connectors to be directly soldered onto circuit boards, saving space and improving assembly efficiency.
3. Reliability:
High quality materials such as metal and plastic are usually used to ensure the durability and reliability of connectors in different working environments.
4. Compatibility:
This connector is compatible with different types of PCMCIA cards, including but not limited to I/O cards, memory cards, modems, etc.
application area
1. Laptop:
Mostly used for older models of laptops, providing extended functionality.
2. Embedded systems:
In some embedded devices or applications, a 15 pin PCMCIA female head plug connector is also used to provide expansion options.
3. Network equipment:
Can be used for connecting external devices such as wireless network adapters.
Installation and maintenance recommendations
1. Welding method:
When installing, please ensure to follow SMT (Surface Mount Technology) or THR (Through Hole Welding) standards to achieve good soldering results.
2. Connection test:
After installation, a functional test should be conducted to ensure that the connector is working properly and can connect well with the PCMCIA card.
3. Anti static measures:
During installation and maintenance, use anti-static equipment (such as anti-static wristbands) to prevent static electricity from damaging electronic components.
4. Regular inspection:
Regularly check the wear of connectors and their pins to ensure good contact and signal transmission. If damaged or poorly connected pins are found, they should be replaced in a timely manner.
summary
The 15 pin PCMCIA female plug connector is a well-designed and widely used connector. Although many new devices have gradually shifted towards updated interface standards with the development of technology, this connector still plays an important role in some specific applications. If you have further questions or need specific technical parameters, please feel free to contact the technician!
