线对板线束连接器技术参数:

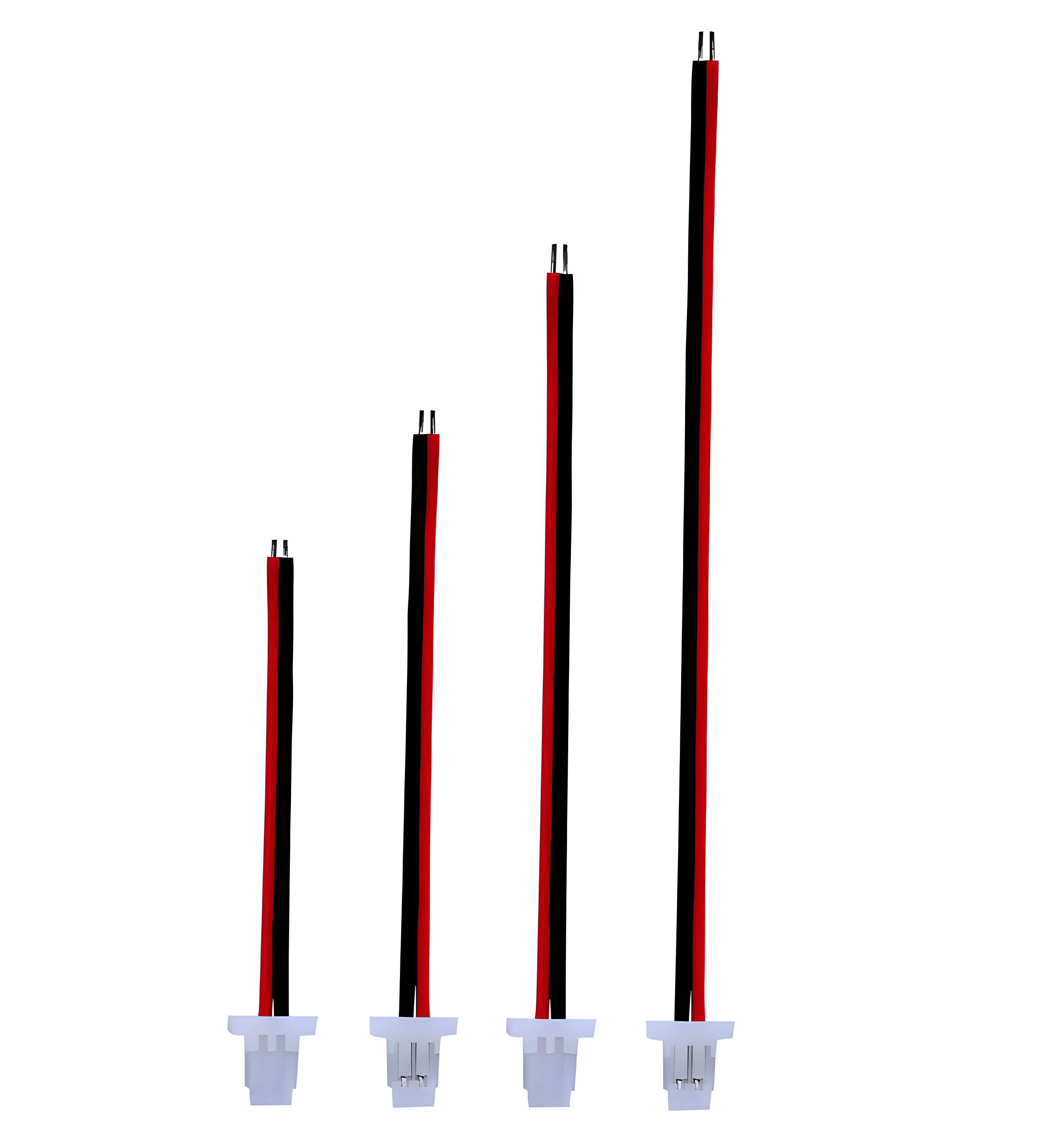

间距1.0mm 针座带线连接器单头端子
PIN数:2PIN-15PIN
接触电阻:≤20mΩ
绝缘电阻:≥100MΩ
额定电压:50V AC DC
额定电流:1.0A AC DC
耐压:500V AC/分钟
温度范围:-25℃~+85℃
母座胶壳:LCP PA66 UL94V-0
公座胶壳:LCP PA66 UL94V-0
触点:磷青铜/MATTE Sn
线长:可选定制
适用范围电脑,电池,网络,多媒体,电视,音响,空调,自动化设备,汽车,通信,医疗器械,产业仪器仪表等行业
品牌 科斯达开关/KOSOD/KSDKG
Technical parameters of wire to board harness connectors:
1.0mm pitch needle socket with wire connector single head terminal
PIN number: 2PIN-15PIN
Contact resistance: ≤ 20m Ω
Insulation resistance: ≥ 100M Ω
Rated voltage: 50V AC DC
Rated current: 1.0A AC DC
Voltage resistance: 500V AC/min
Temperature range: -25 ℃ to+85 ℃
Mother seat rubber shell: LCP PA66 UL94V-0
Public seat rubber shell: LCP PA66 UL94V-0
Contact: phosphor bronze/MATTE Sn
Line length: optional customization
Scope of application: Computer, battery, network, multimedia, TV, audio, air conditioning, automation equipment, automotive, communication, medical equipment, industrial instrumentation and other industries
Brand Coaster Switch/KOSOD/KSDKG
