广东科斯达科技股份有限公司
线对板线束连接器技术参数：
间距1.0mm 针座线束连接器带线双头端子反向
PIN数：2PIN-15PIN
接触电阻：≤20mΩ
绝缘电阻：≥100MΩ
额定电压：50V AC DC
额定电流：1.0A AC DC
耐压：500V AC/分钟
温度范围：-25℃～+85℃
母座胶壳：LCP PA66 UL94V-0
公座胶壳：LCP PA66 UL94V-0
触点：磷青铜/MATTE Sn
线长：可选定制
适用范围电脑,电池,网络,多媒体,电视,音响,空调,自动化设备,汽车,通信,医疗器械,产业仪器仪表等行业
品牌 科斯达开关/KOSOD/KSDKG
Technical parameters of wire to board harness connectors:

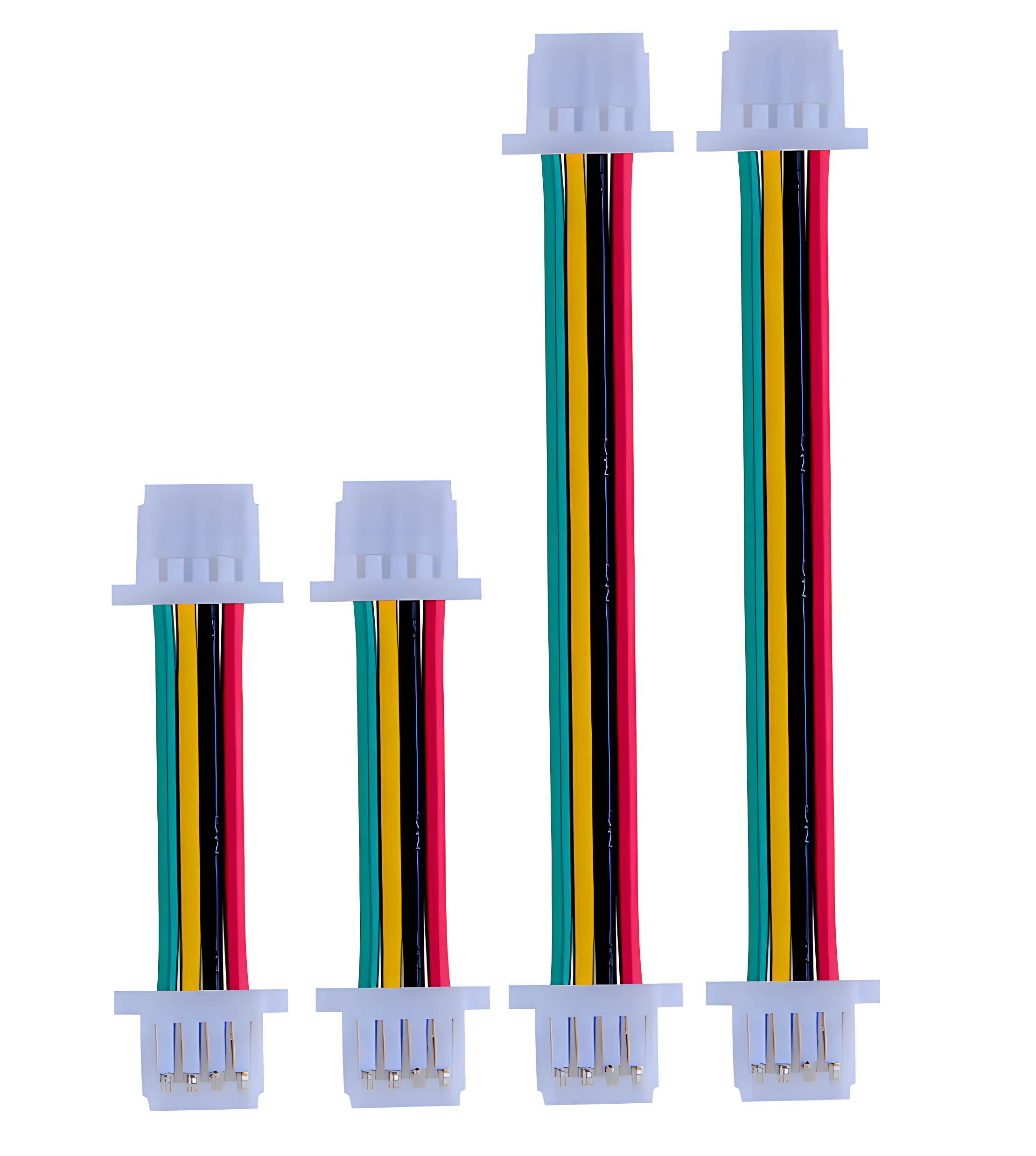

1.0mm spacing needle socket wire harness connector with wire double headed terminal reverse
PIN number: 2PIN-15PIN
Contact resistance: ≤ 20m Ω
Insulation resistance: ≥ 100M Ω
Rated voltage: 50V AC DC
Rated current: 1.0A AC DC
Voltage resistance: 500V AC/min
Temperature range: -25 ℃ to+85 ℃
Mother seat rubber shell: LCP PA66 UL94V-0
Public seat rubber shell: LCP PA66 UL94V-0
Contact: phosphor bronze/MATTE Sn
Line length: optional customization
Scope of application: Computer, battery, network, multimedia, TV, audio, air conditioning, automation equipment, automotive, communication, medical equipment, industrial instrumentation and other industries
Brand Coaster Switch/KOSOD/KSDKG
