产品图纸（PDF）：KSD-10-A1003-5P-TX 下载
线对板线束连接器技术参数：

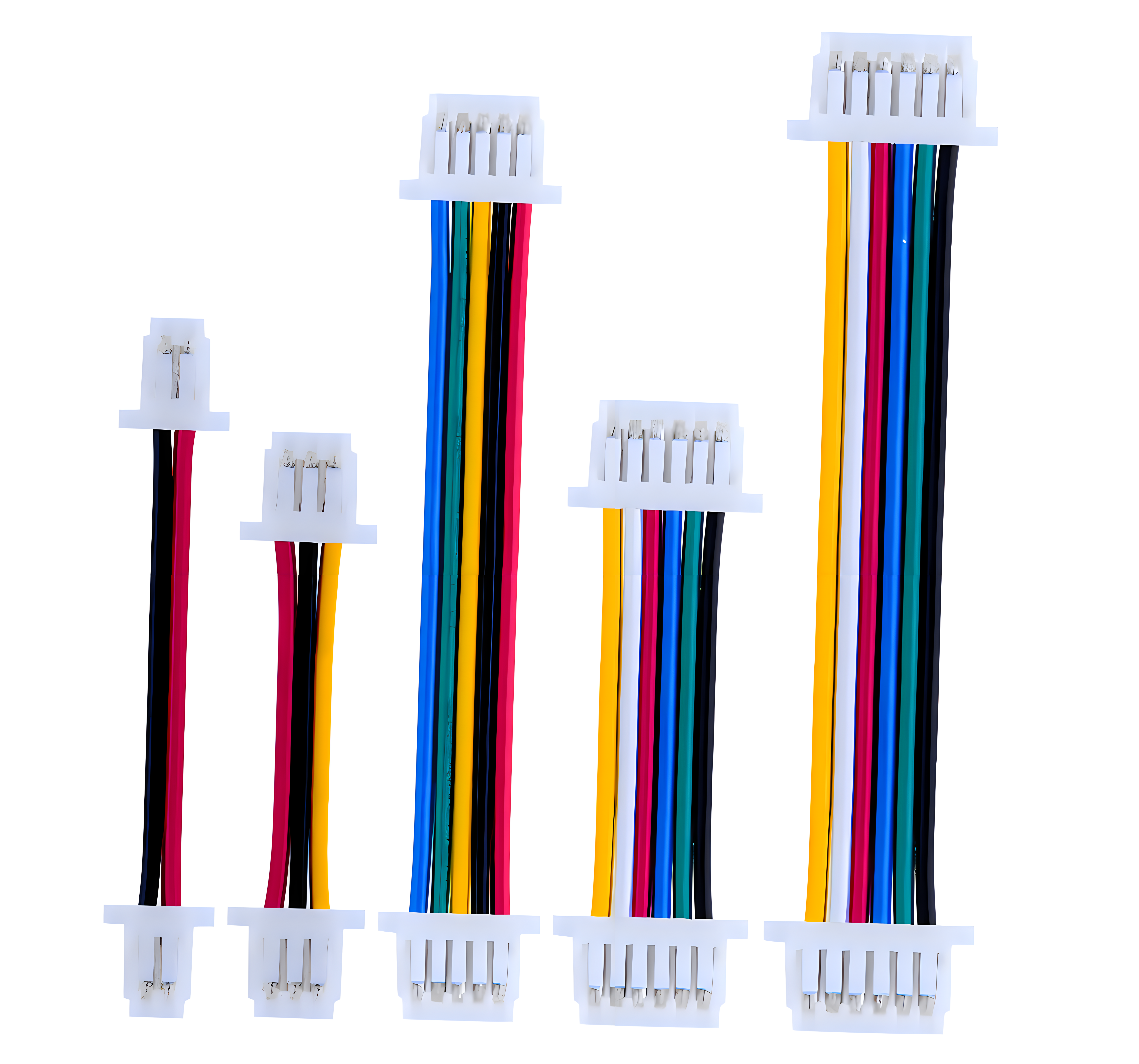

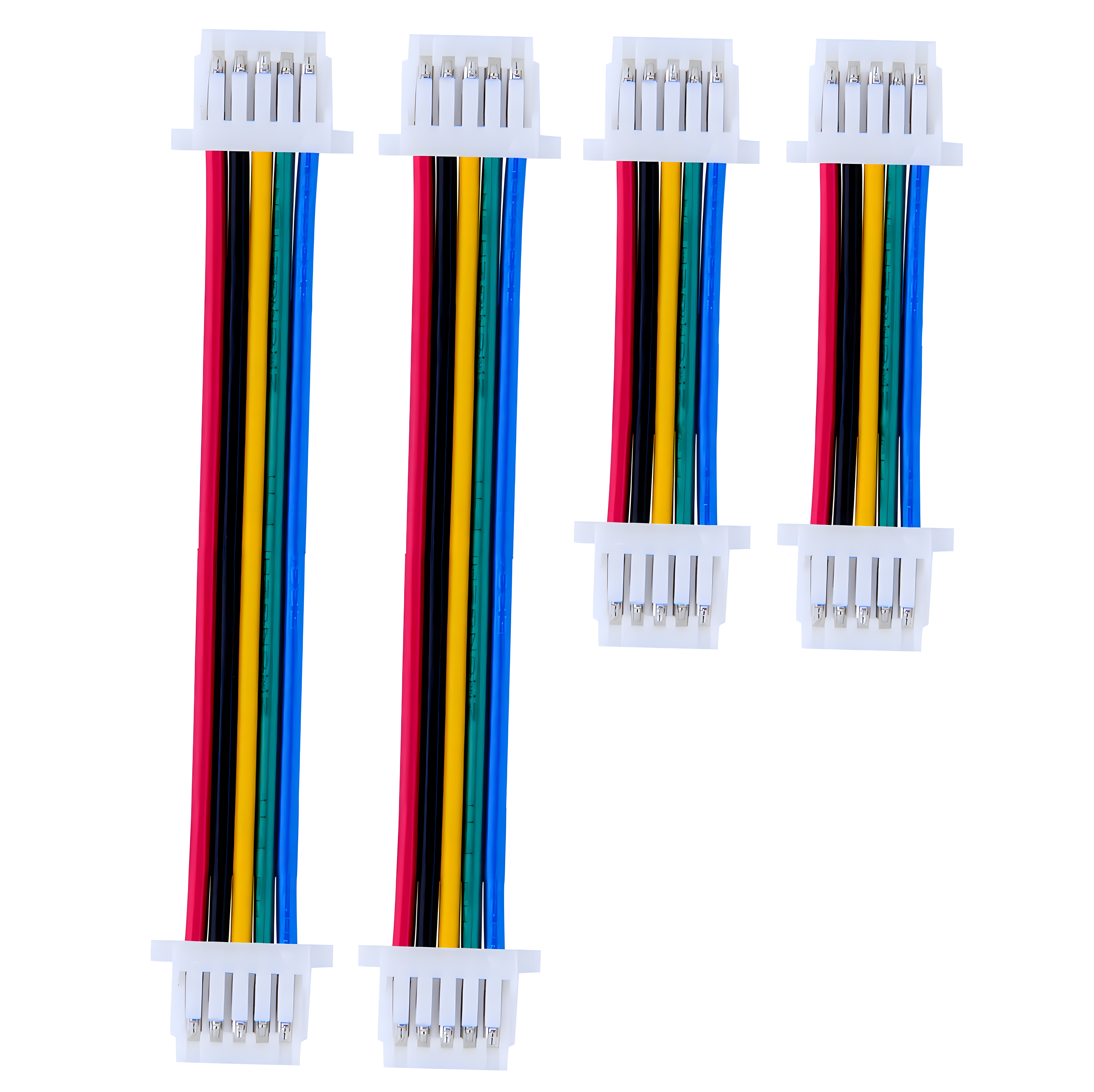

间距1.0mm 针座线束连接器带线双头同向端子PIN数：2PIN-15PIN接触电阻：≤20mΩ绝缘电阻：≥100MΩ额定电压：50V AC DC额定电流：1.0A AC DC耐压：500V AC/分钟温度范围：-25℃～+85℃母座胶壳：LCP PA66 UL94V-0公座胶壳：LCP PA66 UL94V-0触点：磷青铜/MATTE Sn线长：可选定制 适用范围电脑,电池,网络,多媒体,电视,音响,空调,自动化设备,汽车,通信,医疗器械,产业仪器仪表等行业品牌 科斯达开关/KOSOD/KSDKGTechnical parameters of wire to board harness connectors:1.0mm pitch needle socket wire harness connector with double headed coaxial terminalsPIN number: 2PIN-15PINContact resistance: ≤ 20m ΩInsulation resistance: ≥ 100M ΩRated voltage: 50V AC DCRated current: 1.0A AC DCVoltage resistance: 500V AC/minTemperature range: -25 ℃ to+85 ℃Mother seat rubber shell: LCP PA66 UL94V-0Public seat rubber shell: LCP PA66 UL94V-0Contact: phosphor bronze/MATTE SnLine length: optional customizationScope of application: Computer, battery, network, multimedia, TV, audio, air conditioning, automation equipment, automotive, communication, medical equipment, industrial instrumentation and other industriesBrand Coaster Switch/KOSOD/KSDKG
