线对板线束连接器技术参数：

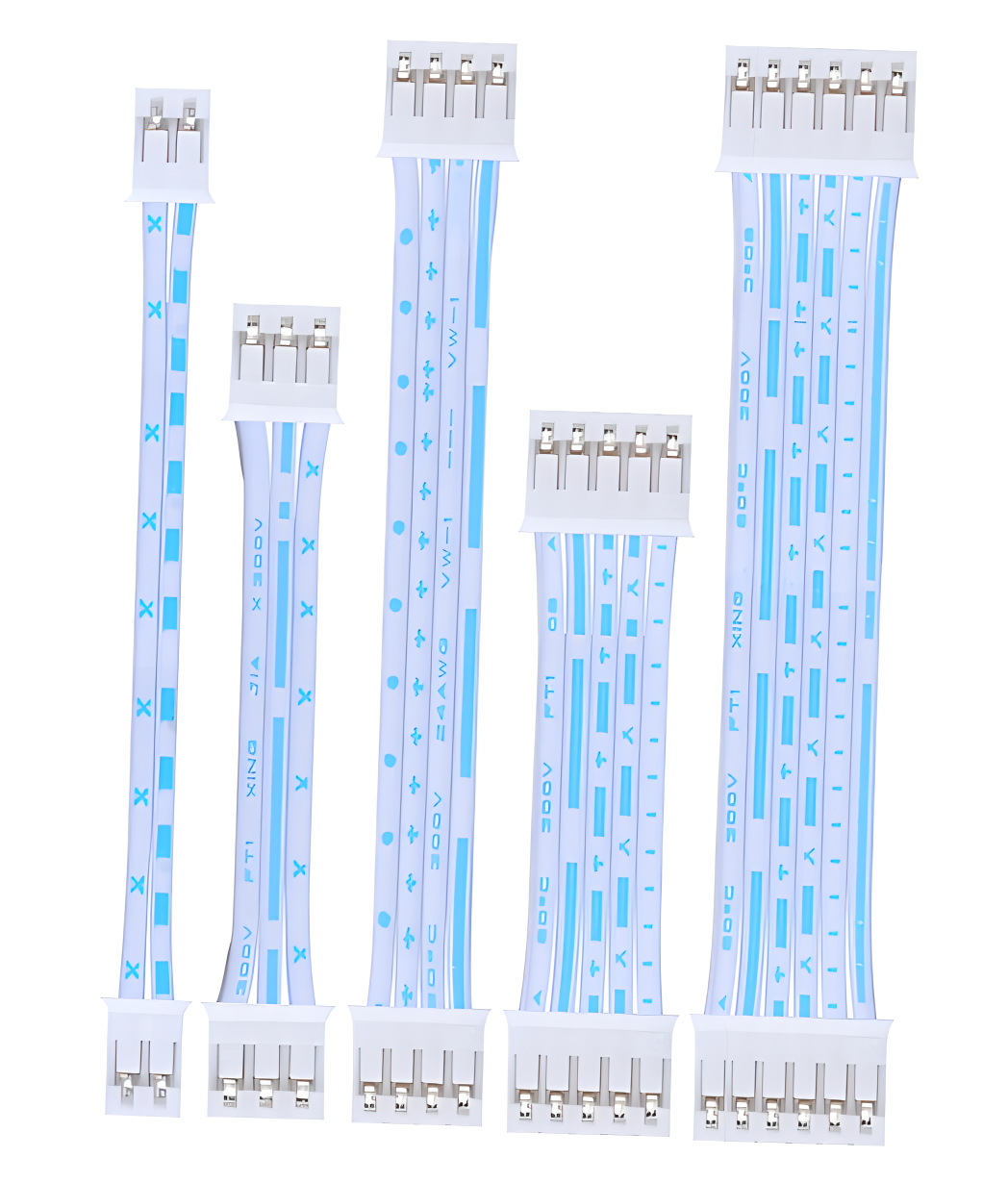

间距2.5mm 针座线束连接器带线双头同向端子
PIN数：2PIN-18PIN
接触电阻：≤20mΩ
绝缘电阻：≥100MΩ
额定电压：250V AC DC
额定电流：3.0A AC DC
耐压：1000V AC/分钟
温度范围：-25℃～+85℃
母座胶壳：LCP PA66 UL94V-0
公座胶壳：LCP PA66 UL94V-0
触点：磷青铜/MATTE Sn
线长引线：可选定制
线材颜色：可选定制
适用范围电脑,电池,网络,多媒体,电视,音响,空调,自动化设备,汽车,通信,医疗器械,产业仪器仪表等行业
品牌 科斯达开关/KOSOD/KSDKG
科斯达线束连接器是用于电气连接的一种组件，通常用于汽车、电子设备和其他电气系统中。其主要作用是将不同的电缆或线束进行连接，以实现电流和信号的传输。
科斯达线束连接器的主要分类：
1.按形状分类：
直插式连接器
垂直插拔连接器
圆形连接器
2.按用途分类：
汽车连接器
工业连接器
家电连接器
3.按材料分类：
塑料连接器
金属连接器
科斯达线束连接器线束连接器的特点：
可靠性：优质的连接器能确保在恶劣环境下仍能稳定工作。
耐用性：大多数连接器采用耐磨、耐高温的材料制造。
易于安装：设计一般考虑到了便于连接和拆卸，维护便利。
科斯达线束连接器应用领域：
汽车行业：用于电控系统连接。
消费电子：如手机、电脑、家用电器等。
工业设备：用于各类机械和自动化设备的电气连接。
Technical parameters of wire to board harness connectors:
2.5mm spacing needle socket wire harness connector with wire double headed terminal in the same direction
PIN number: 2PIN-18PIN
Contact resistance: ≤ 20m Ω
Insulation resistance: ≥ 100M Ω
Rated voltage: 250V AC DC
Rated current: 3.0A AC DC
Voltage resistance: 1000V AC/min
Temperature range: -25 ℃ to+85 ℃
Mother seat rubber shell: LCP PA66 UL94V-0
Public seat rubber shell: LCP PA66 UL94V-0
Contact: phosphor bronze/MATTE Sn
Long lead wire: optional customization
Wire color: optional customization
Scope of application: Computer, battery, network, multimedia, TV, audio, air conditioning, automation equipment, automotive, communication, medical equipment, industrial instrumentation and other industries
Brand Coaster Switch/KOSOD/KSDKG
Coaster harness connectors are a type of component used for electrical connections, typically found in automobiles, electronic devices, and other electrical systems. Its main function is to connect different cables or harnesses to achieve the transmission of current and signals.
The main categories of Coaster wire harness connectors are:
1. Classified by shape:
Direct insertion connector
Vertical plug-in connector
Circular connector
2. Classified by purpose:
Automotive connectors
Industrial connectors
Home appliance connector
3. Classified by material:
Plastic connector
Metal connector
Characteristics of Coaster wire harness connectors:
Reliability: High quality connectors ensure stable operation even in harsh environments.
Durability: Most connectors are made of wear-resistant and high-temperature resistant materials.
Easy to install: The design generally considers easy connection and disassembly, as well as convenient maintenance.
Application areas of Coaster wire harness connectors:
Automotive industry: used for connecting electronic control systems.
Consumer electronics: such as mobile phones, computers, household appliances, etc.
Industrial equipment: used for electrical connections of various types of machinery and automation equipment.
