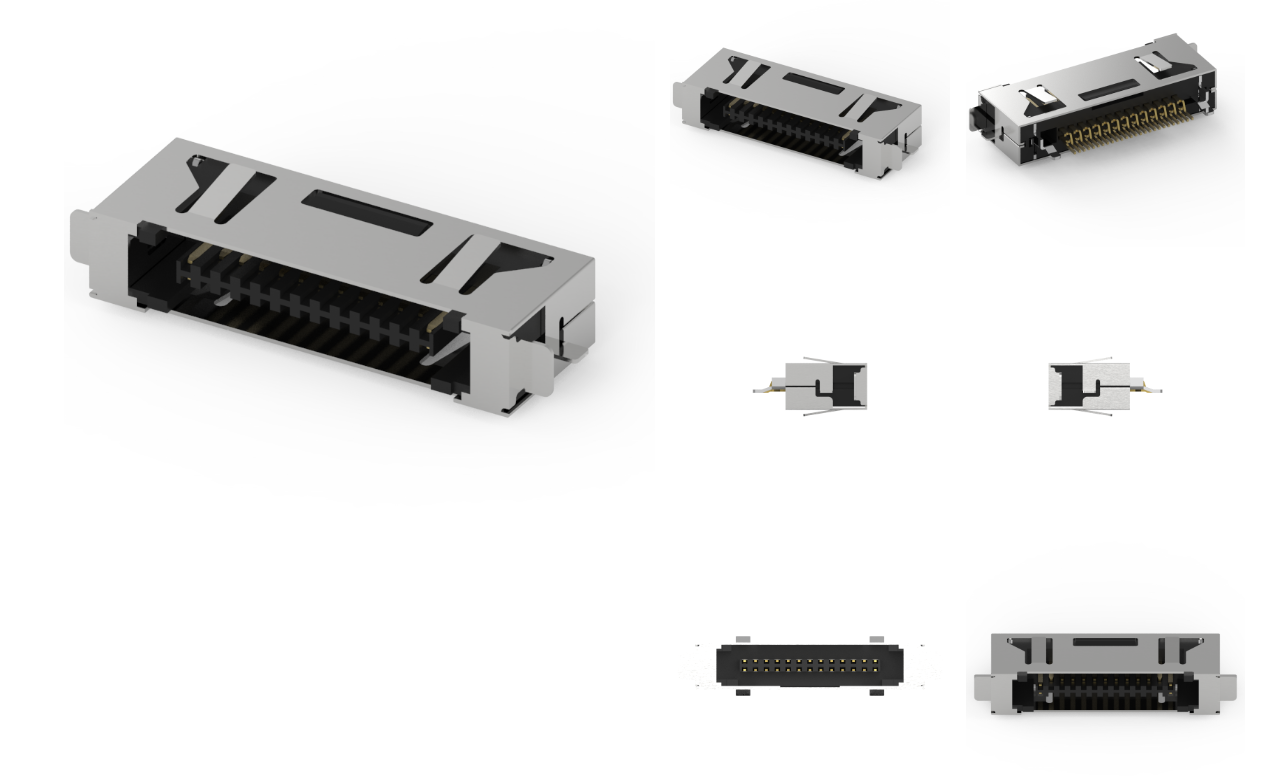

品名：26 Pin PCMCIA 母头插板式连接器
1.材料：
1-1.房屋：LCP UL94V-0
颜色：黑色
触点：磷青铜
1-2.SHELL：镍银合金
1-4.圆形：磷青铜
2.完成：
2-1.接触:
接触面积：见表A
焊接区域：亮锡
底板：镍
2-2. 外壳：哑光-锡
2-3.圆形：全部为亮锡
电气规格：
3-1.额定电流：0.5A
3-2.电压：300V
4.环境：
4-1.工作温度：-40℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
26 Pin PCMCIA 母头插板式连接器 是一种用于连接 PCMCIA 卡（Personal Computer Memory Card International Association 卡）的插板式连接器，主要用于扩展功能的硬件接口。它与公头连接器配合使用，能够与 PCMCIA 扩展卡进行可靠的连接。
主要特征
1.引脚配置：
该连接器具有 26 个引脚，支持数据传输、电源供给和控制信号的传递。具体的引脚配置依据 PCMCIA 标准，能够支持不同类型的扩展卡。
2.母头设计：
母头插槽设计允许用户方便地插入公头连接器，并提供一个稳定的连接接口。
3.材料与构造：
通常采用高耐用性的塑料和金属材料制成，以确保在多种工作环境中使用的可靠性。
3.兼容性：
该连接器通常与多种 PCMCIA 卡兼容，包括网络卡、存储卡、调制解调器等，以便于不同功能的扩展。
应用领域
1.笔记本电脑：
特别适用于一些较老型号的笔记本电脑，借助 PCMCIA 扩展卡实现附加功能。
2.工业设备：
在某些工业设备中，用于提供扩展功能，例如数据采集和控制接口。
3.嵌入式系统：
用于一些嵌入式系统，支持不同的外围设备。
安装与维护建议
1.焊接要求：
在焊接或安装过程中，确保按照相关标准进行操作，以保证连接器的机械强度和电气连接稳定性。
2.插拔注意事项：
插拔时要小心，避免用力过猛导致引脚弯曲或断裂。
3.功能测试：
安装后进行功能测试，确保连接器的正常工作，验证数据传输和电源供给是否正常。
4.定期检查：
定期检查连接器和卡槽的物理状态，确保接触良好，并及时清理灰尘和污垢，避免影响电性能。
总结
26 Pin PCMCIA 母头插板式连接器 在许多需要扩展功能的旧型号设备中仍然发挥着重要作用，虽然随着技术的发展，许多新设备已转向更现代的接口标准，它仍然在特定应用中具有不可替代的地位。如果你有进一步的问题或需要具体的技术参数，欢迎联系技术员！
Product Name: 26 Pin PCMCIA Female Head Plug in Board Connector
1. Materials:
1-1. House: LCP UL94V-0
Color: Black
Contact: phosphor bronze
1-2. SHELL: Nickel Silver Alloy
1-4. Circular: phosphor bronze
2. Complete:
2-1. Contact:
Contact area: see Table A
Welding area: Bright tin
Bottom plate: Nickel
2-2. Shell: Matte Tin
2-3. Circular: All made of bright tin
Electrical specifications:
3-1. Rated current: 0.5A
3-2. Voltage: 300V
4. Environment:
4-1. Working temperature:- 40℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
The 26 pin PCMCIA female head plug-in connector is a plug-in connector used to connect PCMCIA cards (Personal Computer Memory Card International Association cards), mainly used as a hardware interface for expanding functions. It is used in conjunction with a male connector and can reliably connect with PCMCIA expansion cards.
Main features
1. Pin configuration:
This connector has 26 pins and supports data transmission, power supply, and control signal transmission. The specific pin configuration is based on the PCMCIA standard and can support different types of expansion cards.
2. Mother head design:
The female socket design allows users to easily insert male connectors and provides a stable connection interface.
3. Materials and Construction:
It is usually made of high durability plastic and metal materials to ensure reliability in various working environments.
3. Compatibility:
This connector is typically compatible with various PCMCIA cards, including network cards, memory cards, modems, etc., to facilitate the expansion of different functions.
application area
1. Laptop:
Especially suitable for some older models of laptops, with the help of PCMCIA expansion cards to achieve additional functions.
2. Industrial equipment:
In some industrial equipment, it is used to provide extended functions such as data acquisition and control interfaces.
3. Embedded systems:
Used for some embedded systems, supporting different peripheral devices.
Installation and maintenance recommendations
1. Welding requirements:
During the welding or installation process, ensure that the relevant standards are followed to ensure the mechanical strength and electrical connection stability of the connector.
2. Precautions for plugging and unplugging:
Be careful when plugging and unplugging to avoid excessive force that may cause the pins to bend or break.
3. Functional testing:
Perform functional testing after installation to ensure the proper functioning of the connector and verify that data transmission and power supply are functioning properly.
4. Regular inspection:
Regularly check the physical condition of connectors and card slots to ensure good contact, and promptly clean dust and dirt to avoid affecting electrical performance.
summary
The 26 pin PCMCIA female plug connector still plays an important role in many old models of devices that require extended functionality. Although with the development of technology, many new devices have shifted to more modern interface standards, it still holds an irreplaceable position in specific applications. If you have further questions or need specific technical parameters, please feel free to contact the technician!
